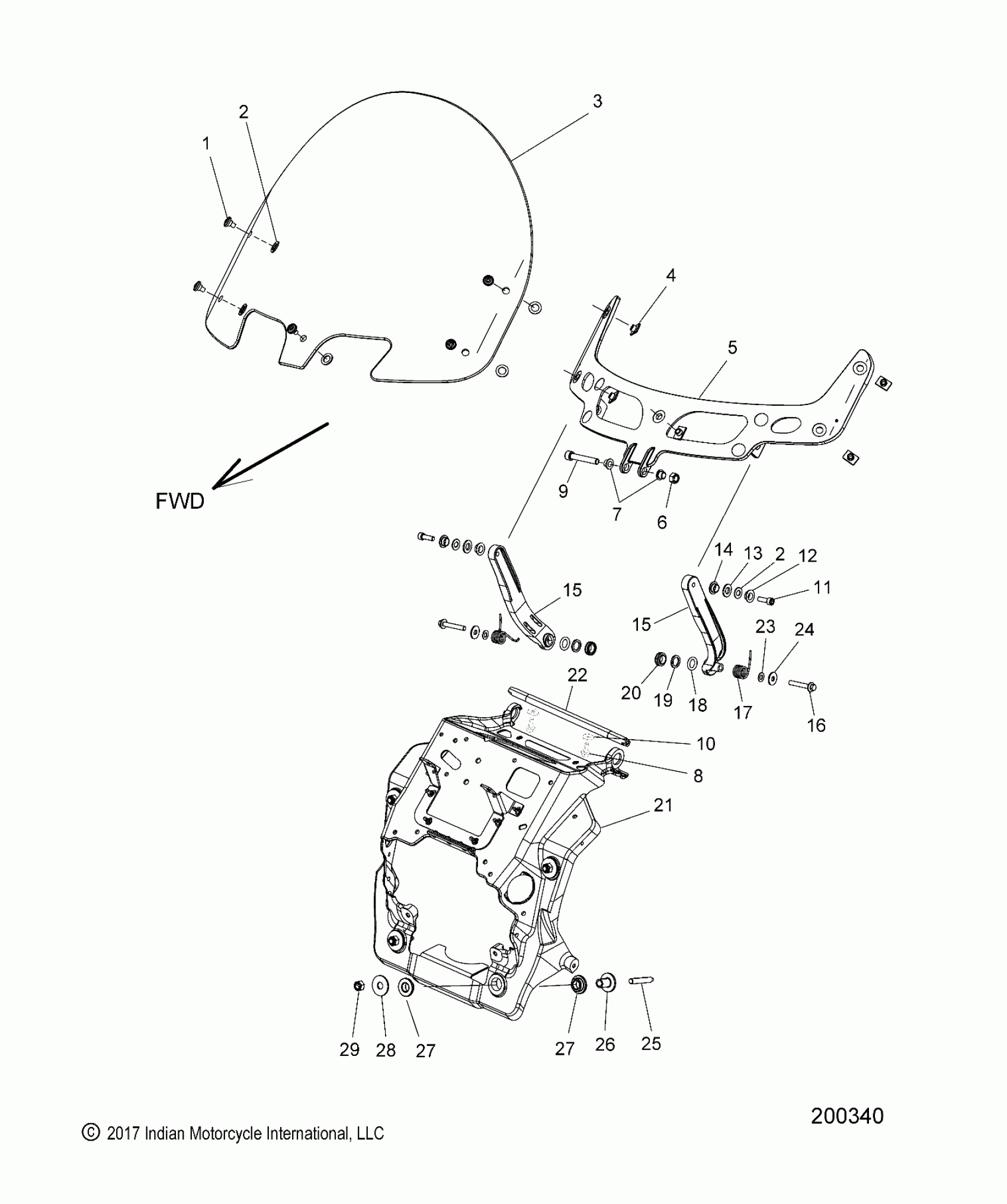

Polaris ROADMASTER CLASSIC ALL OPTIONS (R05) - N18TBAAA BODY, FAIRING ASM, WINDSHIELD MOUNT - N18TBAAA ALL OPTIONS (200340) Diagram

#

Description
Price

1

SCREW-SH-M6x1.0x7 302SS PSVTD

7518788

$7.14

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

3

KIT, WINDSHIELD, TOURING

2881796

$369.99

4

T-NUT

7547300

$1.59

5

SUPPORT, WINDSHIELD

5138467-626

Unavailable

6

NUT

7547454

$2.38

7

BRG-FLANGE,8X10X7MM

3514565

$6.35

8

SCREW, HXFL-M6

7518591

$3.79

9

SCREW

7518013

$6.35

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

11

SCREW

7517305

$5.22

12

BUSHING, FLANGE

5140871

$9.52

13

WASHER, THRUST

7556832

$7.14

14

FLANGE, BEARING

3514853

$6.35

15

LINK, WINDSHIELD, JT BLK

5138909-626

Unavailable

15

LINK, WINDSHIELD, JT BLK

5138909-626

Unavailable

16

Screw

7517610

$1.59

17

Spring, Windshield, RH

7043356

$8.08

17

Spring, Windshield, LH

7043355

$5.56

18

O-Ring

5411356

$2.41

19

WASHER

7556113

$4.76

20

Bearing, Spherical

3514566

$15.87

21

ASM., FAIRING BRACKET,GPS

1022608-329

$309.99

22

ROD-PIVOT,WS

5138358

$48.40

23

WASHER

7556121

$1.19

24

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

25

STUD

5137389

$10.32

26

BUSHING, FLANGE

5136907

$9.52

27

ISOLATOR, FAIRING

5416052

$3.97

27

ISOLATOR, FAIRING

5416052

$3.97

28

WASHER

7556260

$10.32

29

NUT-NYLOCK M8X1.25-Y

7547144

$3.17
