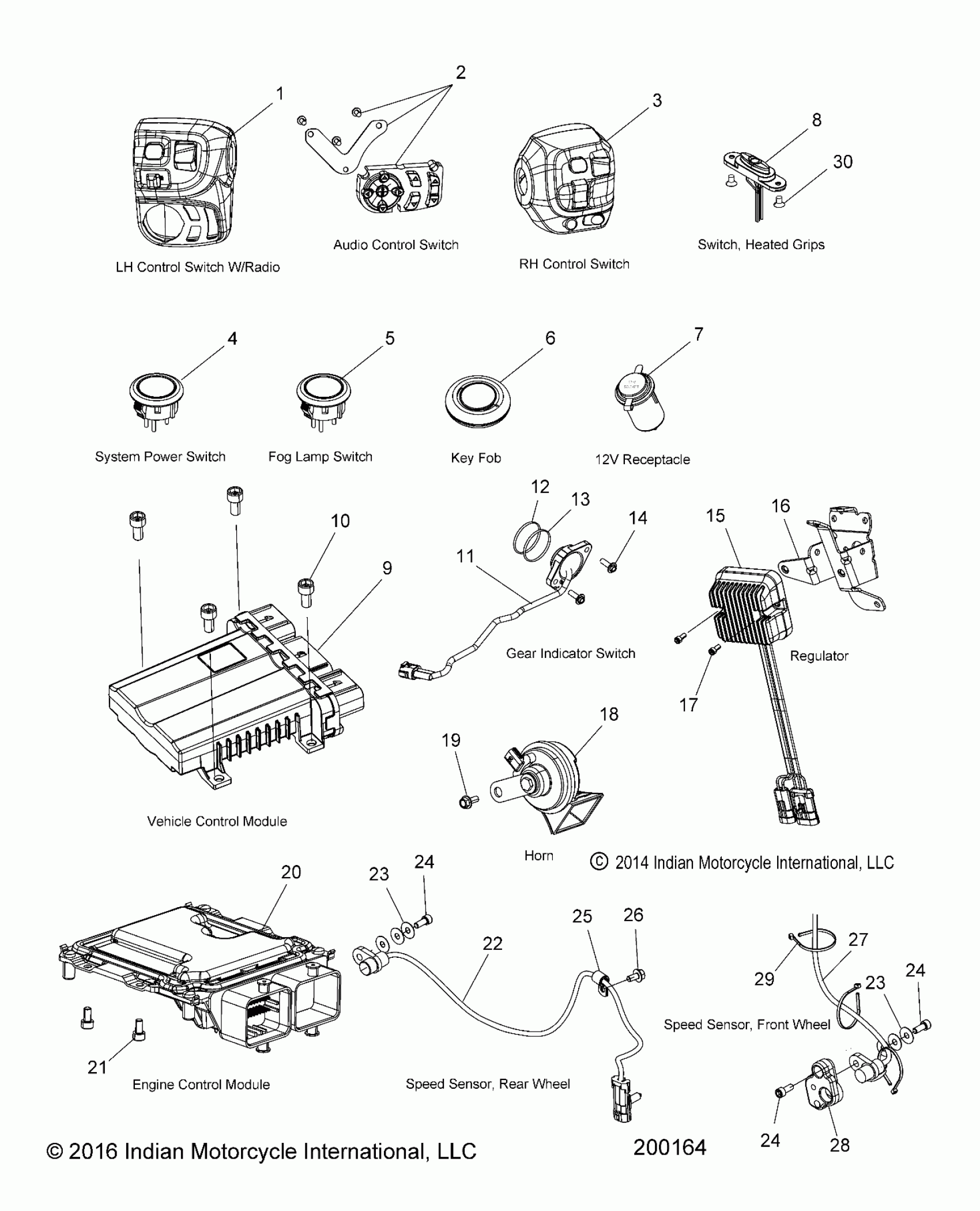

Polaris ROADMASTER CLASSIC ALL OPTIONS (R02) - N17TRLAA ELECTRICAL, COMPONENTS 1 - N17TRLAA ALL OPTIONS (200164) Diagram

#

Description
Price

1

BUTTON-SWITCH, TURN SIGNAL

5453101

$799.99

1

SWITCH, CONTROL, LH, TOUR, CHROME

4015197-156

$799.99

2

SWITCH, AUDIO CONTROL [SWITCH ONLY]

4015740

$129.99

2

BRKT.-AUDIO SWITCH

5258235

$8.89

2

SCREW

7519913

$3.17

3

ASM., ETC SWITCH CONTROL, CHROME

2413027-156

$1,124.99

4

SWITCH, SYSTEM POWER

4016053

$82.29

5

SWITCH, FOG, LONG

4016252

$62.92

6

DECAL-INDIAN LOGO

7180111

$9.70

6

REMOTE CONTROL, FOB

4014111

$203.32

7

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

8

SWITCH, HEATED GRIPS

4015738

$96.81

9

MODULE, VEHICLE CONTROL [SVC][DEALER INSTALL REQUIRED]

4016189

$599.99

10

SCREW

7517781

$3.17

11

SWITCH, GEAR, N-6, W/GROUND

4014718

$39.99

12

O-RING

5412530

$1.60

13

RING, PARBAK

5450958

$6.46

14

SCREW

7519986

$4.76

15

REGULATOR, VOLTAGE

4014300

Unavailable

16

BRKT., VOLTAGE REGULATOR

5257637

$97.13

17

SCREW

7517272

$7.84

18

HORN, TRUMPET, LOW TONE, TVS

4015908

$47.60

18

HORN, TRUMPET, LOW TONE, INTL, MP280 [INTL]

4016294

$47.60

19

SCREW

7520122

$4.76

20

ECM, NO START, ME17 [SVC]

4014125

$749.99

21

SCREW

7519851

$3.17

22

SENSOR, WHEEL SPEED, REAR

4014216

$256.57

23

SHIM

5255106

Unavailable

23

SHIM

5255106

Unavailable

24

SCREW

7517272

$7.84

24

SCREW

7517272

$7.84

24

SCREW

7517272

$7.84

25

CLAMP-REAR BRAKE

7080983

$4.35

26

SCREW

7517704

$7.84

27

SENSOR, WHEEL SPEED, FRONT

4013251

$242.05

28

MOUNT, SPEED SENSOR, ABS

5632575

$36.41

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

SCREW

7519876

$3.97
