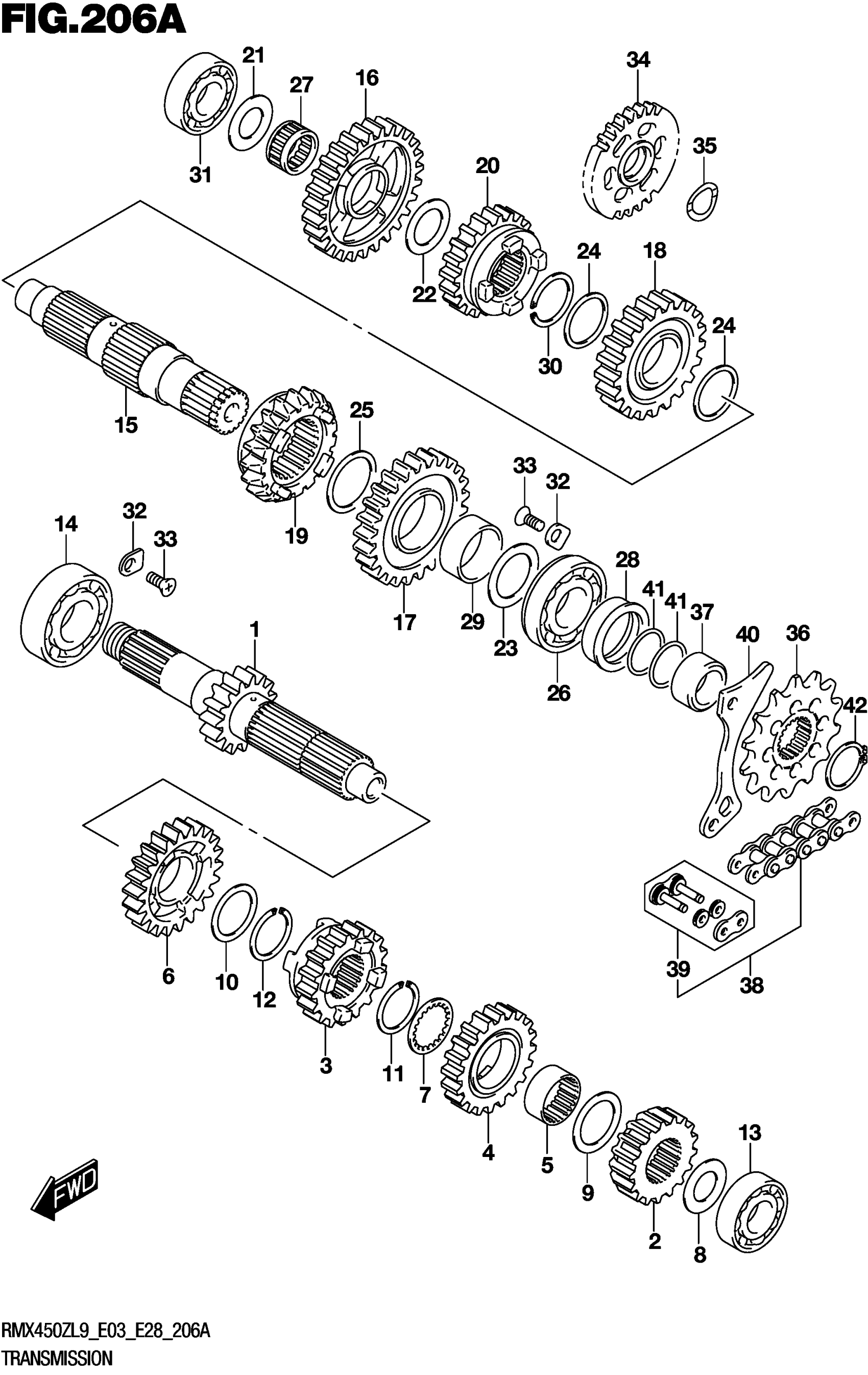

Suzuki RMX450ZL9 (2019) TRANSMISSION Diagram

#

Description
Price

1

SHAFT

24120-02J01

$210.47

2

GEAR

24221-02J00

Unavailable

3

GEAR

24231-02J00

$137.02

4

GEAR

24241-02J00

$117.48

5

BUSH

24242-37F00

$31.23

6

GEAR

24251-02J00

Unavailable

7

WASHER (25X31X1.0) | RH

09167-25026

$3.72

8

SHIM (17X30X1)

09181-17223

$2.96

9

WASHER, 5TH DRIVE | LH This part replaces 09181-25059.

09181-25167

$3.12

10

SHIM (25X30X1)

09181-25111

$4.10

11

CIRCLIP

09380-25010

$2.91

12

CIRCLIP

09380-25010

$2.91

13

BEARING | LH This part replaces 08123-62030.

08123-6203A

$25.45

14

BEARING (25X52X15) | RH

08143-62057

$24.40

15

SHAFT

24131-28H00

$233.32

16

GEAR

24311-02J00

Unavailable

17

GEAR

24321-02J00

$114.39

18

GEAR

24331-02J00

$126.18

19

GEAR

24341-02J00

Unavailable

20

GEAR

24351-02J00

$126.11

21

SHIM (17X30X1) | RH

09181-17223

$2.96

22

SHIM (20X30X1) | LH

09181-20195

$2.60

23

SHIM (24X34X1) | LH

09181-24005

$3.55

24

SHIM (25X30X1)

09181-25111

$4.10

25

SHIM (27X33X1) | RH

09181-27015

$4.60

26

BEARING (24X56X14) | LH

09262-24001

$90.20

27

BEARING (20X24X10)

09263-20107

Unavailable

28

SEAL,OIL (31X40X8.5)

09289-31003

$13.73

29

BUSH (27X31X13)

09300-27005

Unavailable

30

CIRCLIP | RH

09380-25010

$2.91

31

BEARING | RH This part replaces 08123-62030.

08123-6203A

$25.45

32

RETAINER

24741-20A00

$2.81

33

SCREW (6X12)

09126-06011

$2.03

34

GEAR

26260-35G00

$162.04

34

GEAR

26260-35G00

$162.04

35

WASHER

26264-28H00

$7.08

36-1

SPROCKET

27511-35G30

$58.13

36-2

SPROCKET | OPT

27511-35G20

$58.13

37

SPACER,ENGINE SPROCKET

27531-35G01

$28.58

38

CHAIN ASSY

27600-02J01-114

Unavailable

38

CHAIN ASSY

27600-02J01-114

Unavailable

39

.JOINT SET

27620-02J01

$14.80

40

PLATE

27641-02J00

Unavailable

41

O-RING (D:1.9,ID:21.8)

09280-21010

$2.27

42

CIRCLIP

08331-3124A

$2.03
