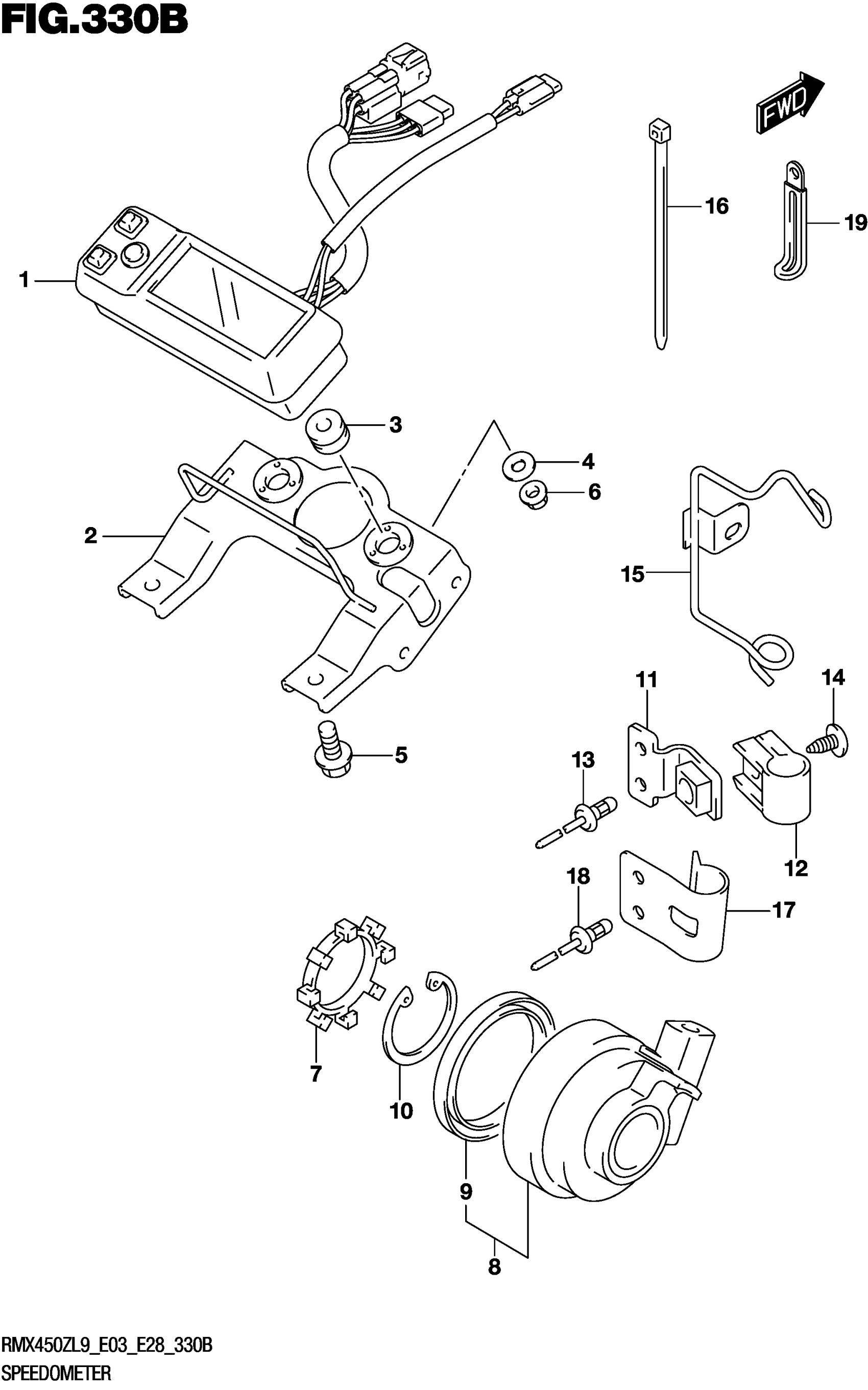

Suzuki RMX450ZL9 (2019) SPEEDOMETER (RMX450ZL9 E28) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-02J01

Unavailable

2

BRACKET

34950-02J00

$40.25

3

CUSHION

34955-02J00

$4.75

4

WASHER (5.5X16X1.2)

09160-05037

$1.49

5

BOLT

01550-0616A

$1.97

6

NUT

08316-1005A

$2.19

7

ROTOR

34981-02J00

Unavailable

8

SENSOR COMP,SPE This part replaces 34990-02J00.

34990-02J01

$273.93

9

SEAL This part replaces 09285-48001.

09285-48002

$6.10

10

CIRCLIP

09381-40005

$5.12

11

GUIDE

34938-02J10

$9.12

12

CLAMP BRAKE HOSE

58621-07A20

$4.07

13

RIVET

09229-03011

$4.12

14

.SCREW

02142-0512A

$1.49

15

GUIDE

34930-02J00

Unavailable

16

CLAMP (L:100)

09407-10404

$2.90

17

GUIDE

34938-02J20

Unavailable

18

RIVET

09229-03011

$4.12

19

CLAMP (L:45)

09404-06429

$1.83
