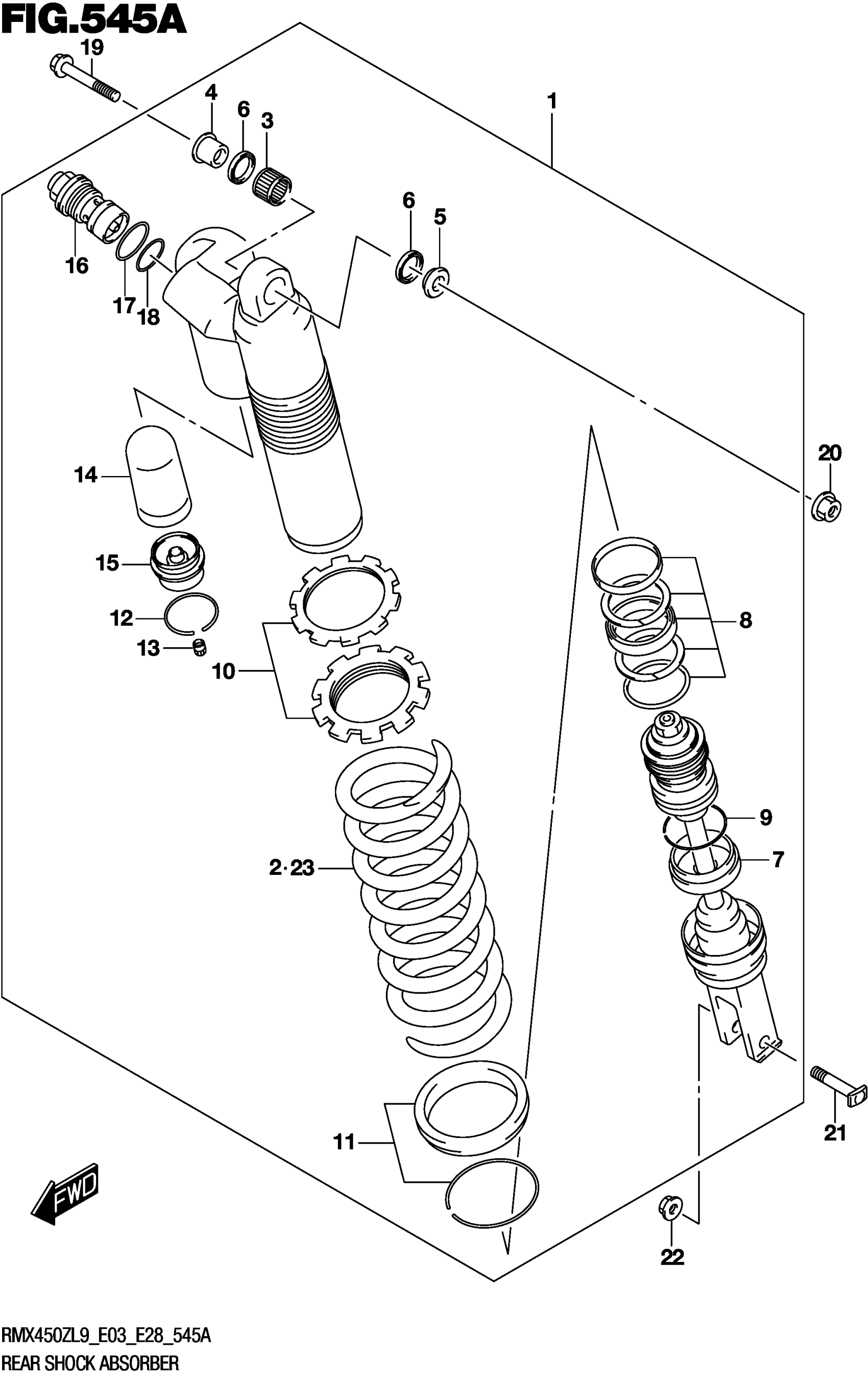

Suzuki RMX450ZL9 (2019) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY

62100-02J40-019

Unavailable

1

ABSORBER ASSY

62100-02J40-019

Unavailable

2

.SPRING (K=5.5) | HARD

62211-37FL0

Unavailable

3

.BEARING (16X22X12)

09263-16033

$20.26

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

OIL SEAL (16X22X2.5) | RH

09284-16005

$6.95

7

.ROD

62120-02J00

Unavailable

8

.O RING SET

62150-36EB0

$71.38

9

.RING

62279-36E80

$6.85

10

.ADJUSTER SET

62190-36F00

$116.65

11

.SPRING SEAT SET

62220-36F00

$86.03

12

.RING

62278-36E00

$8.60

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

.BLADDER

62273-36E00

$66.72

15

.CAP

62275-28H30

Unavailable

16

.BOLT

62130-02J00

Unavailable

17

.O RING

62131-28E00

$5.00

18

.O RING

51174-36EB0

$5.33

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

20

NUT (M10)

09159-10115

$3.55

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

22

NUT

09159-10067

$6.11

23-1

SPRING (K=5.1) | OPT

62211-37FJ0

Unavailable

23-1

SPRING (K=5.1) | SOFT

62211-37FJ0

Unavailable

23-2

SPRING (K=5.3) | OPT

62211-37FK0

Unavailable

23-2

SPRING (K=5.3) | SOFT

62211-37FK0

Unavailable

23-3

SPRING (K=5.7) | OPT

62211-35G30

Unavailable

23-3

SPRING (K=5.7) | HARD

62211-35G30

Unavailable

23-4

SPRING (K=5.9) | OPT

62211-35G40

Unavailable

23-4

SPRING (K=5.9) | HARD

62211-35G40

Unavailable
