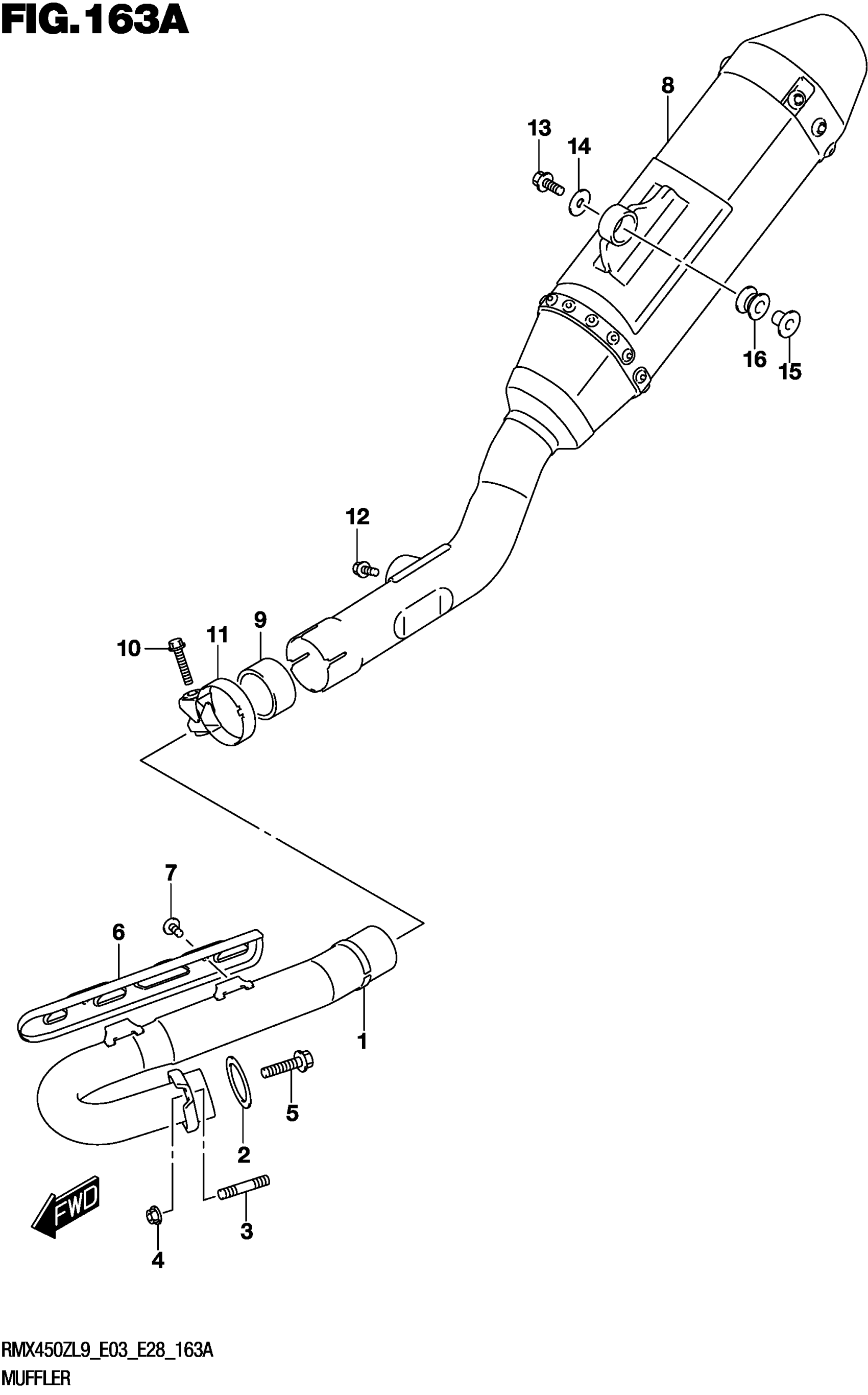

Suzuki RMX450ZL9 (2019) MUFFLER Diagram

#

Description
Price

1

PIPE

14150-02J00

Unavailable

2

.GASKET,EXHAUST PIPE

14181-35G00

$9.31

3

BOLT,STUD

01421-0820A

$1.91

4

NUT

08316-1008A

$2.45

5

BOLT (8X25)

09103-08521

$3.15

6

COVER

14186-28H10

$54.75

7

BOLT (6X8)

09139-06178

$4.72

8

BODY

14310-02J00-H01

Unavailable

9

CONNECTOR,MUF

14771-42F10

$23.13

10

BOLT (8X35)

09103-08391

$2.50

11

CLAMP,CONNECTOR

14459-28H00

$36.80

12

BOLT (8X20)

09103-08426

$4.60

13

BOLT (8X35)

09103-08391

$2.50

14

WASHER (8.5X26X1.6)

09160-08151

$1.99

15

SPACER (8.6X12X17.5)

09180-08151

$5.18

16

CUSHION

09320-12043

$7.98
