2019 Suzuki RMX450ZL9 Headlamp Diagram

← All diagrams

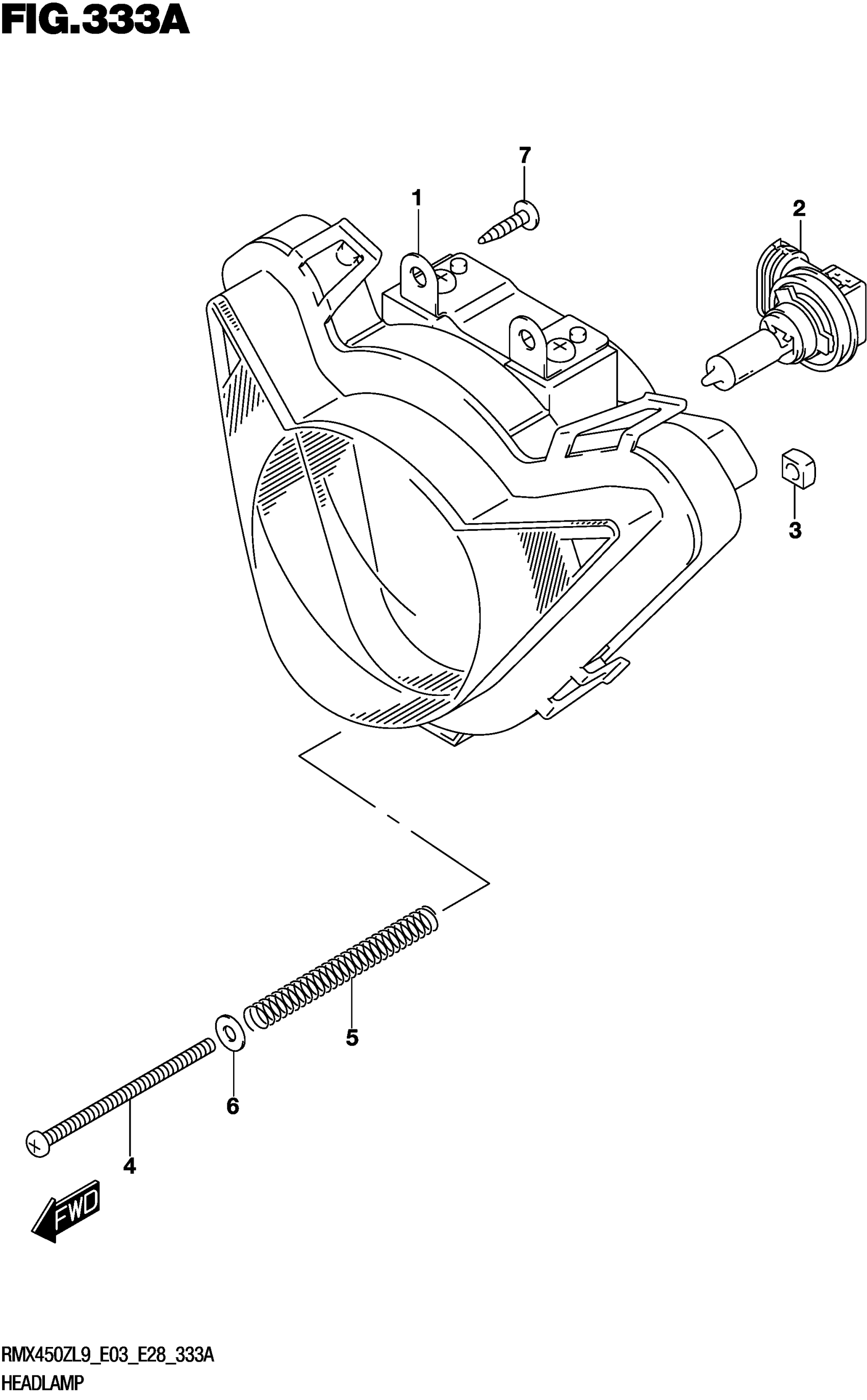

Find the part on the Headlamp diagram for your 2019 Suzuki RMX450ZL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RMX450ZL9 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-02J00-999

1
Out of stock

2

BULB (12V

09471-12211

1
Out of stock

3

NUT

35152-02J00

1
Out of stock

4

SCREW

35151-02J00

1
Out of stock

5

SPRING

35154-02J00

1
Out of stock

6

WASHER

08322-0104A

1
Out of stock

7

SCREW

03541-0516A

2
Out of stock
← Electrical Headlamp Cover →
