2019 Suzuki RMX450ZL9 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2019 Suzuki RMX450ZL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

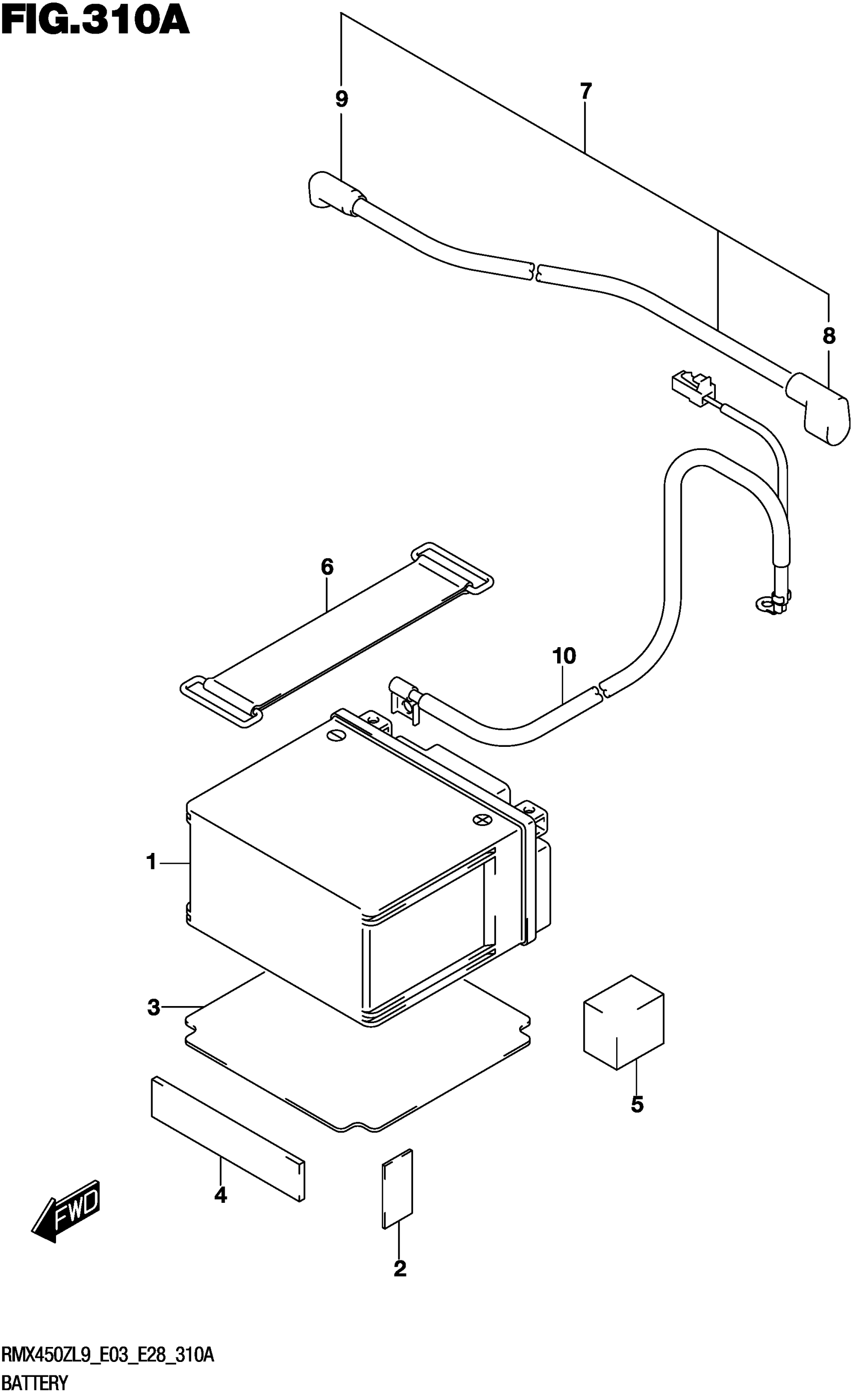

2019 Suzuki RMX450ZL9 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY This part replaces 33620-02J00.

33610-02J00

1
Out of stock

1

BATTERY ASSY This part replaces 33620-02J00.

33610-02J00

1
Out of stock

2

PROTECTOR (20X40X1)

33652-02J00

2
Out of stock

3

PROTECTOR (107X107X2)

33652-02J10

—
Out of stock

4

PROTECTOR (20X70X2)

33652-02J20

—
Out of stock

5

PROTECTOR (30X35X10)

33652-02J30

—
Out of stock

6

BAND

09462-00009

1
Out of stock

7

WIRE

33810-02J00

1
Out of stock

8

.CAP STARTER RELAY

31861-29F00

1
Out of stock

9

.CAP

31861-02J00

—
Out of stock

10

WIRE

33860-02J00

1
Out of stock
