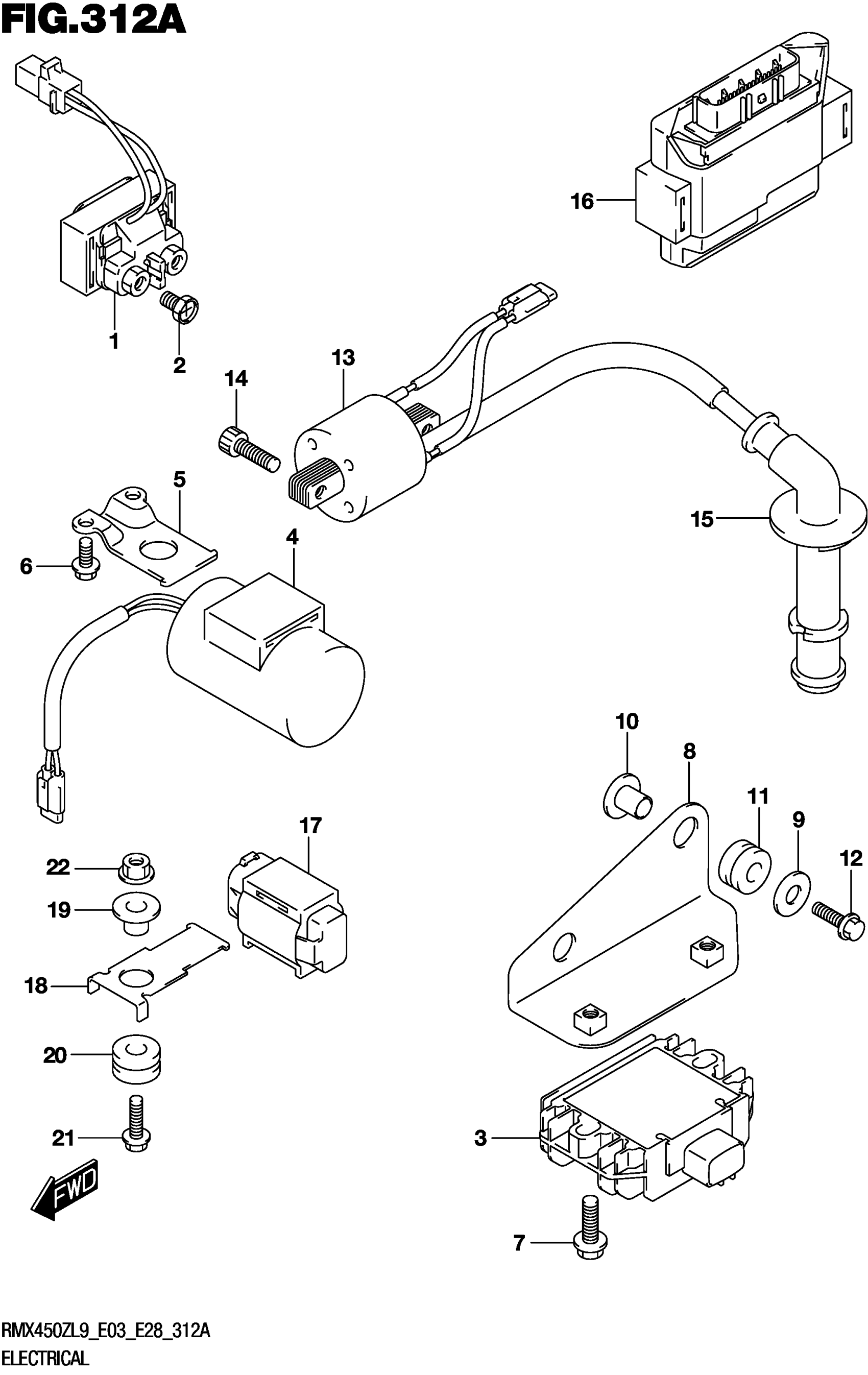

Suzuki RMX450ZL9 (2019) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$74.65

2

SCREW (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY

32800-05G11

$133.14

4

CONDENSER ASSY

33640-28H00

$157.50

5

BRACKET

33641-28H00

Unavailable

6

BOLT (6X10)

09103-06188

$2.90

7

SCREW

02162-0620C

$1.71

8

BRACKET

32830-02J00

Unavailable

9

WASHER (6.5X18X1.6)

09160-06109

$1.49

10

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

11

CUSHION (8.4X18X6)

09320-08066

$8.24

12

SCREW

02162-0620C

$1.71

13

COIL ASSY

33410-35G10

$126.57

14

BOLT

07130-0620A

$2.50

15

CAP ASSY,SPARK PLUG

33510-28H00

$59.80

16

CONTROL UNIT

32920-02J30

$488.13

17

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

18

BRACKET

33961-28H10

Unavailable

19

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

20

CUSHION (8X18X10)

09320-08501

$3.23

21

BOLT

01547-0620A

$2.03

22

NUT (6X12)

08316-1006A

$2.19
