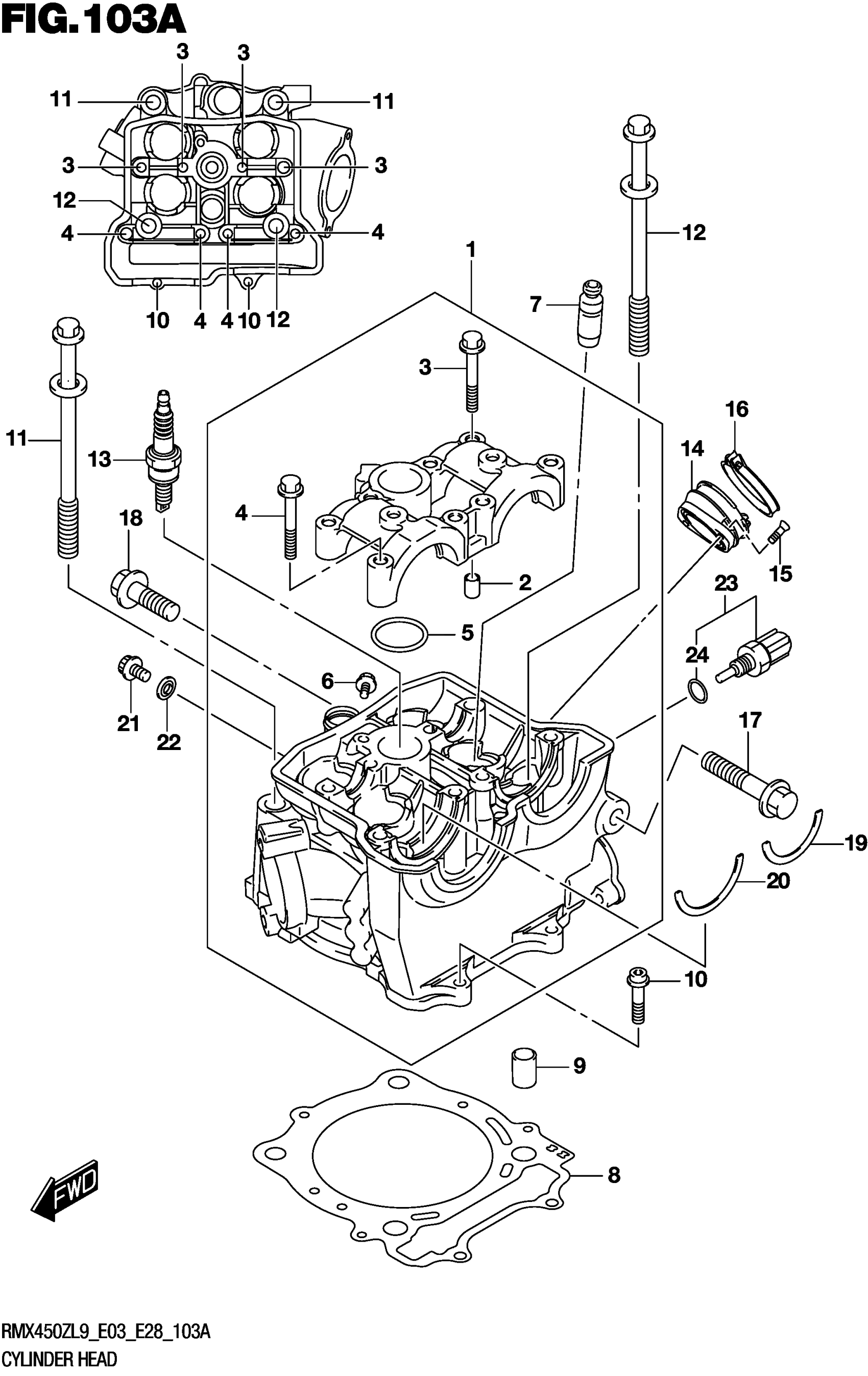

Suzuki RMX450ZL9 (2019) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY

11100-02J00

$1,320.38

2

.PIN (8X11)

09206-08001

$1.77

3

.BOLT (6X40)

09103-06266

$2.13

4

.BOLT (6X45)

09103-06293

$2.55

5

.O-RING (ID:25.7,DD:2.4)

09280-26007

$5.97

6

BOLT (6X10)

09103-06188

$3.17

7

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

$30.37

8

.GASKET,CYLINDER HEAD

11141-28H00

$30.20

9

PIN (10.4X13X18)

04211-13189

$2.19

10

BOLT

07120-0625A

$2.50

11

BOLT,CYLINDER HEAD (L:140)

11117-28H00

$15.11

12

BOLT,CYLINDER HEAD (L:120)

11161-45G00

$8.52

13

PLUG,SPARK (CR8EIB-10) | NGK

09482-00584

$10.64

14

PIPE

13101-02J00

Unavailable

15

SCREW

02122-0616A

$1.43

16

CLAMP,INTAKE PIPE

13170-35G01

$17.63

17

BOLT (10X43) | LH

09103-10116

$7.68

18

BOLT (10X30) | RH

09103-10359

$4.70

19

C RING

12749-35G01

$3.26

20

C RING

12749-10H00

$3.92

21

.BOLT

07120-0610A

$2.58

22

GASKET (5.8X13X1.2)

09168-06023

$2.01

23

SENSOR,WATER TEMP

13650-14G00

$48.98

24

.O RING

13655-14G00

$10.48
