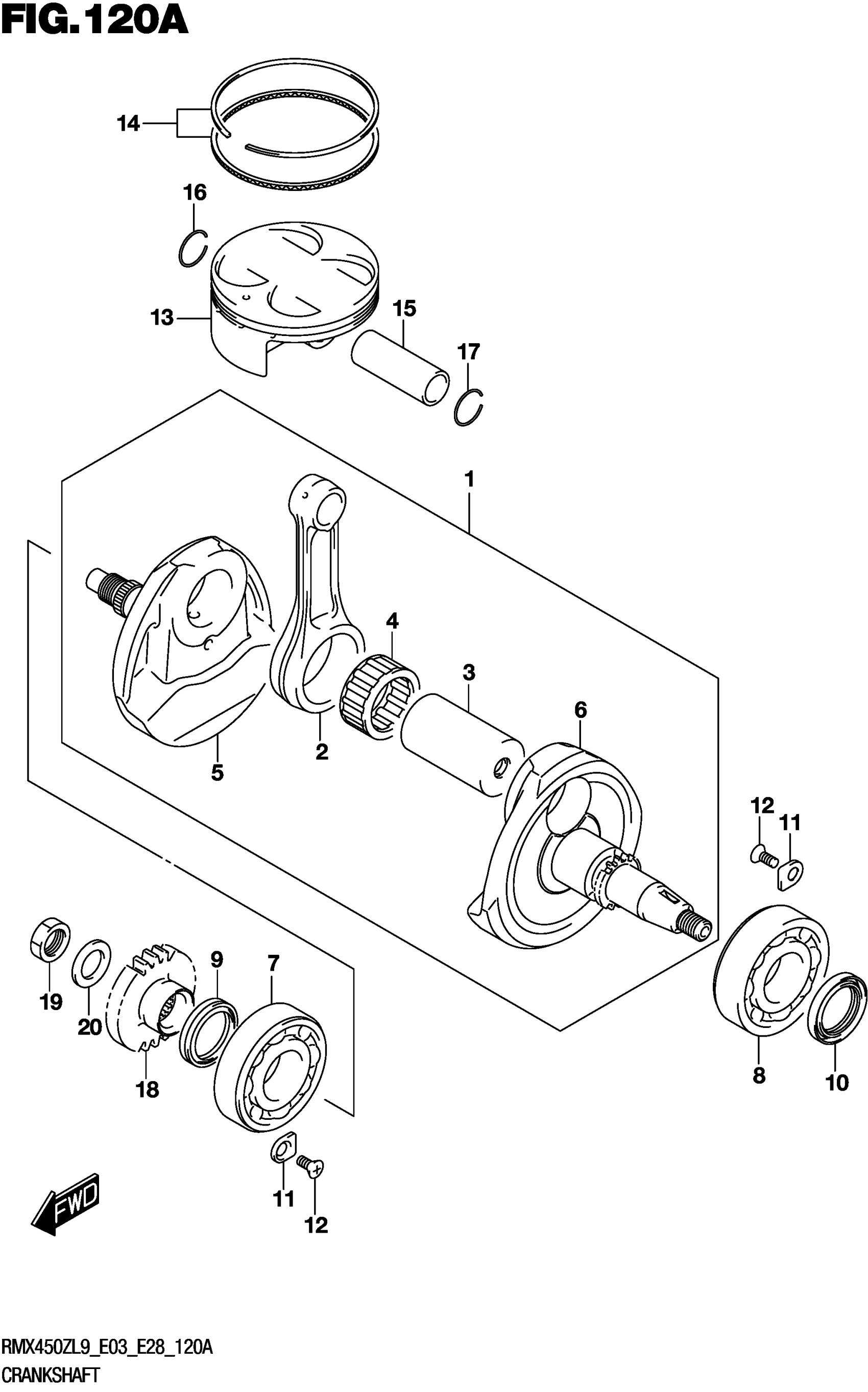

Suzuki RMX450ZL9 (2019) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-02J10

$761.75

2

.ROD

12160-28H00-0B0

$230.95

3

.PIN

12210-35G03

$105.67

4

.BEARING (34X42X20)

09263-34014-0B0

$152.90

5

.CRANKSHAFT

12220-02J00

Unavailable

6

.CRANKSHAFT

12261-02J00

Unavailable

7

BEARING (30X72X19) | RH

09262-30115

$96.62

8

BEARING (32X75X20) | LH

09262-32017

$144.80

9

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

$13.82

10

SEAL,OIL | LH This part replaces 09283-32037.

09283-32044

$19.09

11

RETAINER

24741-20A00

$2.80

12

SCREW (6X12)

09126-06011

$2.01

13

PISTON

12111-28H10-0F0

$294.72

14

RING SET,PISTON

12140-28820

$53.15

15

PIN

12151-35G01

$24.46

16

RING,SNAP

09381-19001

$2.08

17

CIRCLIP (21.5X1.2)

09381-19005

$2.19

18

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

Unavailable

19

NUT

09140-16036

$16.05

20

WASHER

09164-16002

$2.90
