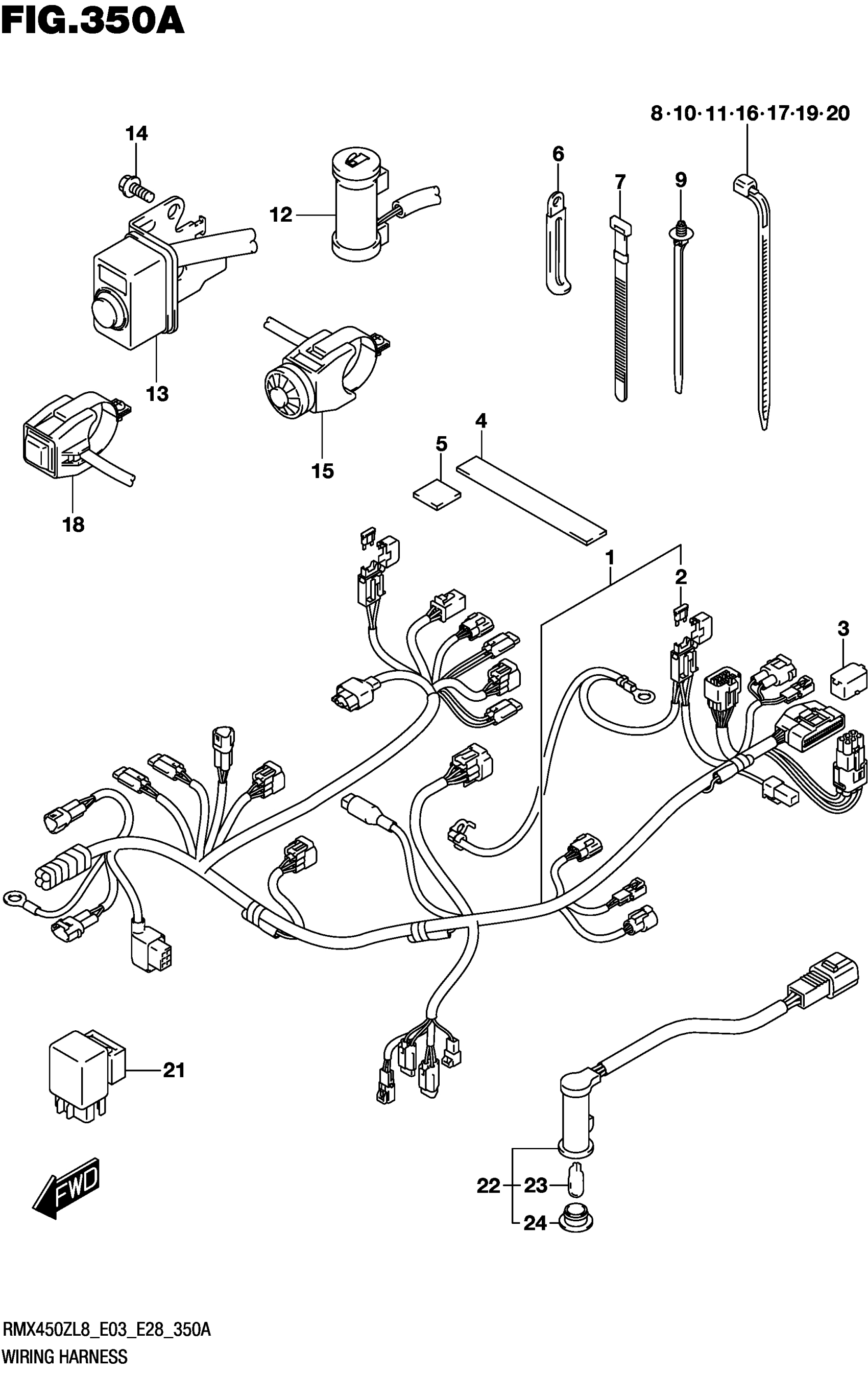

Suzuki RMX450ZL8 (2018) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-02J20.

36610-02J21

$519.30

2

.FUSE (15A)

09481-15101

$2.53

3

CAP,TS This part replaces 36654-06J00.

36654-06J01

$13.85

4

PROTECTOR (15X100X0.13)

36611-02J00

Unavailable

5

CUSHION (20X20X1)

44534-24F00

$3.78

6

CLAMP (L:135)

09404-06435

$3.68

7

CLAMP (L:95)

09407-10403

Unavailable

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:145)

09407-14407

$3.57

10

CLAMP (L:165)

09407-18402

$2.19

11

CLAMP (L:235)

09407-25401

$4.66

12

LAMP ASSY,FUEL This part replaces 36380-02J00.

36380-02J01

$47.05

13

SWITCH ASSY

37110-02J00

$145.32

14

BOLT

01547-0612A

$2.03

15

SWITCH ASSY

37310-02J00

$83.43

16

CLAMP (L:95)

09407-11401

$2.63

17

CLAMP (L:125)

09407-14403

$2.26

18

SWITCH ASSY,ENGINE STOP

37820-36E00

$25.46

19

CLAMP (L:95)

09407-11401

$2.63

20

CLAMP (L:125)

09407-14403

$2.26

21

RELAY ASSY,HEAD This part replaces 38740-39G00.

38740-39G10

$38.40

22

LAMP ASSY | OPT

36380-28H00

$77.55

23

.BULB (12V3.4W,T10) | OPT

09471-12028

$1.99

24

.LENS (RED) | OPT

36321-28H00

$10.58
