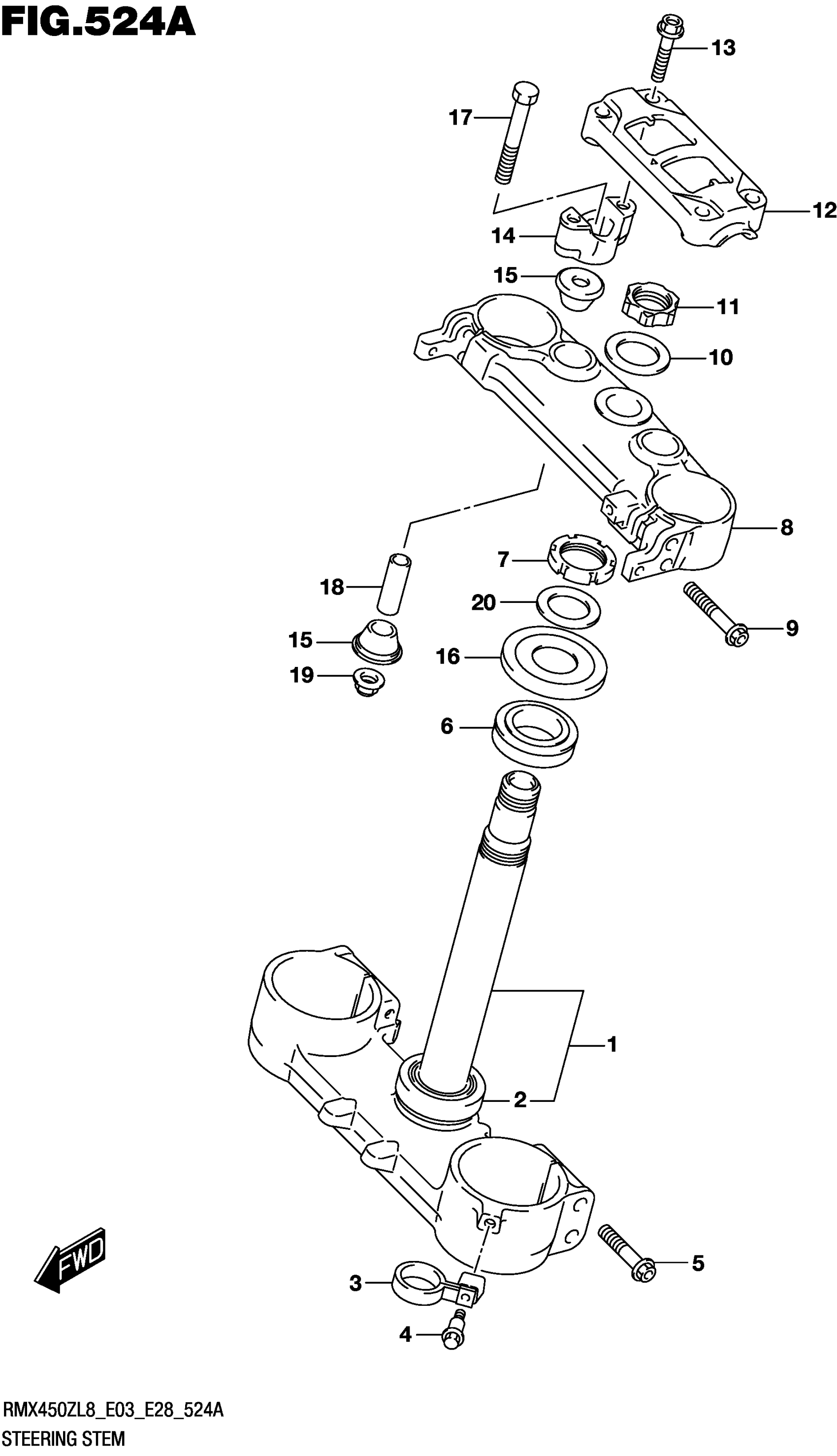

Suzuki RMX450ZL8 (2018) STEERING STEM Diagram

#

Description
Price

1

STEM

51410-02J10

$817.77

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE

58621-29F20

$11.55

4

BOLT (6X20.5)

09111-06087

$2.71

5

BOLT

51328-37F80

$7.25

6

BEARING (30X52X16)

09265-30022

$78.03

7

NUT STEERING

51631-28E00

$28.88

8

HEAD

51311-02J10

$396.98

9

BOLT

51328-37F80

$7.25

10

WASHER,STEM HEAD

51356-29E00

$15.29

11

NUT,STEM HEAD

51353-37F70

$40.35

12

HOLDER,HANDLE

56211-10H10

$85.28

13

BOLT

51321-37F90

$6.19

14

HOLDER,HANDLE,LOWER

56221-28H01

$115.65

15

CUSHION,RUBBER

56241-10H11

$43.88

16

SEAL,STEERING U This part replaces 51643-28H00.

51643-28H01

$23.63

17

BOLT,HANDLE HOLDER

56321-28H00

$13.07

18

SPACER

56243-10H11

$11.85

19

NUT This part replaces 08319-31108.

08319-31107

$2.73

20

WASHER

51632-49H10

Unavailable
