2018 Suzuki RMX450ZL8 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

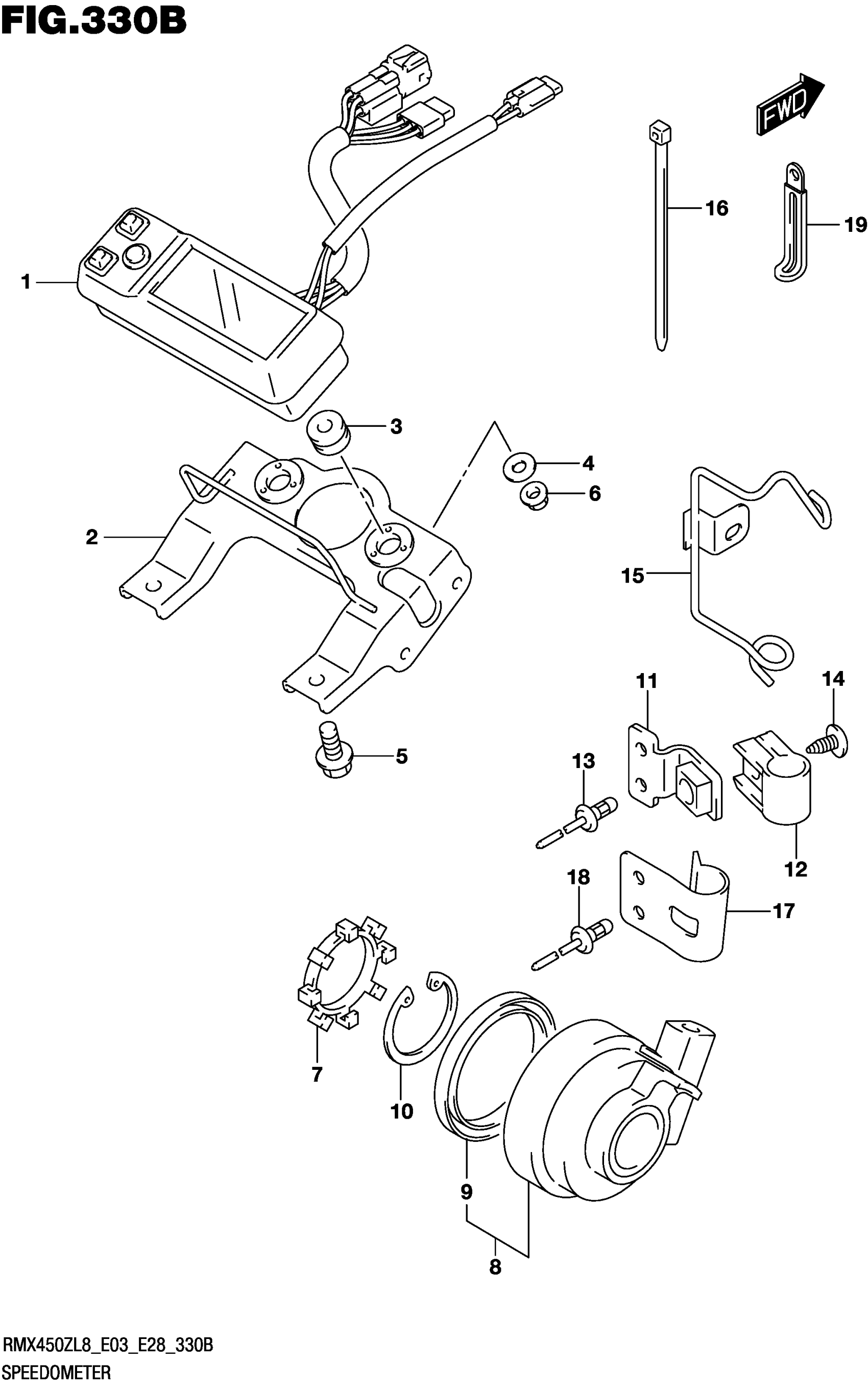

2018 Suzuki RMX450ZL8 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-02J01

—
Out of stock

2

BRACKET

34950-02J00

1
Out of stock

3

CUSHION

34955-02J00

2
Out of stock

4

WASHER (5.5X16X1.2)

09160-05037

2
Out of stock

5

BOLT

01550-0616A

2
Out of stock

6

NUT

08316-1005A

2
Out of stock

7

ROTOR

34981-02J00

1
Out of stock

8

SENSOR COMP,SPE This part replaces 34990-02J00.

34990-02J01

1
Out of stock

9

SEAL This part replaces 09285-48001.

09285-48002

1
Out of stock

10

CIRCLIP

09381-40005

1
Out of stock

11

GUIDE

34938-02J10

1
Out of stock

12

CLAMP BRAKE HOSE

58621-07A20

1
Out of stock

13

RIVET

09229-03011

2
Out of stock

14

.SCREW

02142-0512A

1
Out of stock

15

GUIDE

34930-02J00

1
Out of stock

16

CLAMP (L:100)

09407-10404

1
Out of stock

17

GUIDE

34938-02J20

1
Out of stock

18

RIVET

09229-03011

2
Out of stock

19

CLAMP (L:45)

09404-06429

1
Out of stock
