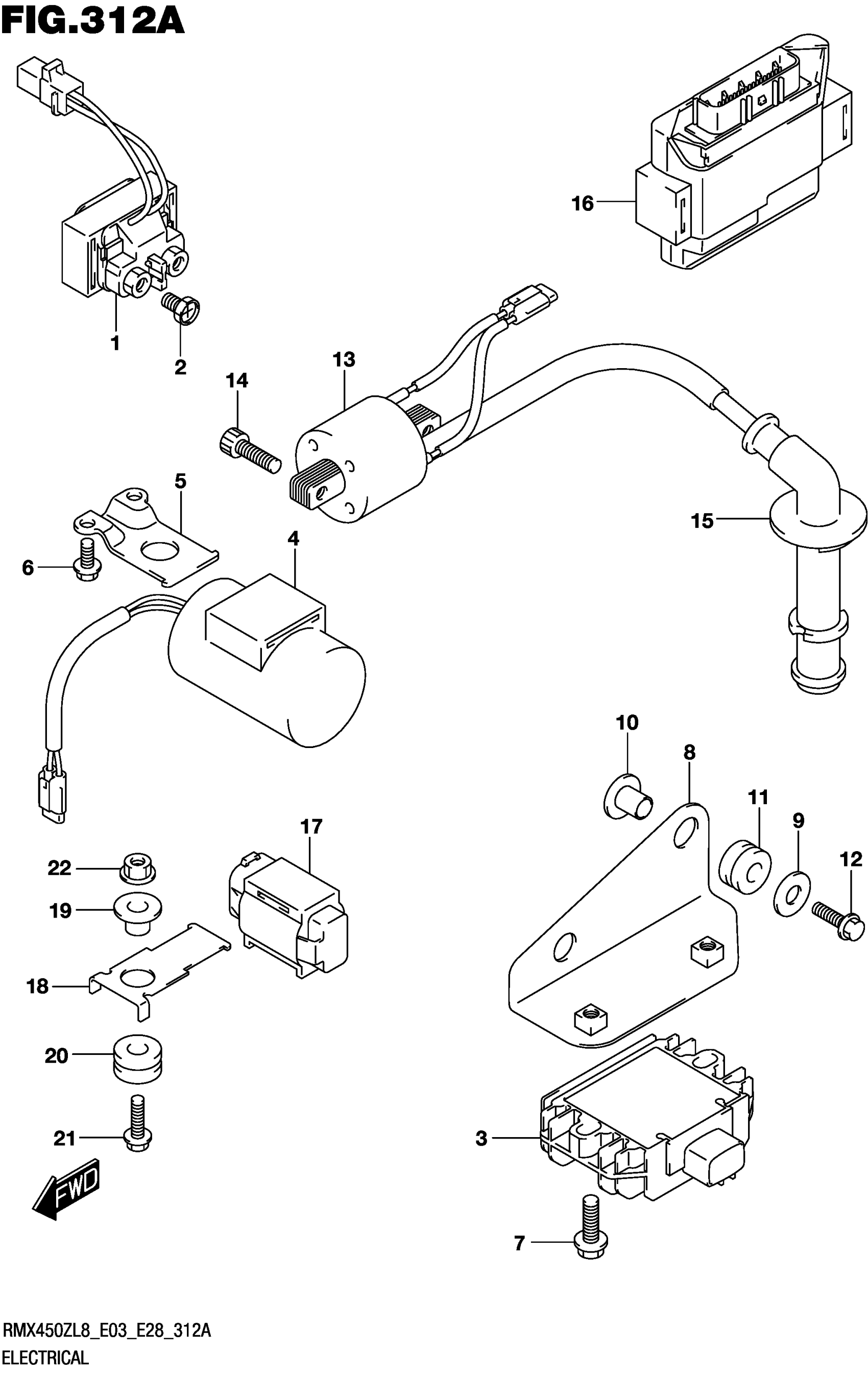

Suzuki RMX450ZL8 (2018) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$83.85

2

SCREW (6X8)

09128-06013

$1.28

3

RECTIFIER ASSY

32800-05G11

$129.16

4

CONDENSER ASSY

33640-28H00

$152.79

5

BRACKET

33641-28H00

Unavailable

6

BOLT (6X10)

09103-06188

$3.17

7

SCREW

02162-0620C

$1.80

8

BRACKET

32830-02J00

Unavailable

9

WASHER (6.5X18X1.6)

09160-06109

$1.19

10

SPACER (6.2X8.4X6.9)

09180-06325

$3.59

11

CUSHION (8.4X18X6)

09320-08066

$7.67

12

SCREW

02162-0620C

$1.80

13

COIL ASSY

33410-35G10

$142.17

14

BOLT

07130-0620A

$2.57

15

CAP ASSY,SPARK PLUG

33510-28H00

$67.48

16

CONTROL UNIT

32920-02J30

$532.95

17

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

18

BRACKET

33961-28H10

Unavailable

19

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

20

CUSHION (8X18X10)

09320-08501

$3.06

21

BOLT

01547-0620A

$2.10

22

NUT (6X12)

08316-1006A

$2.25
