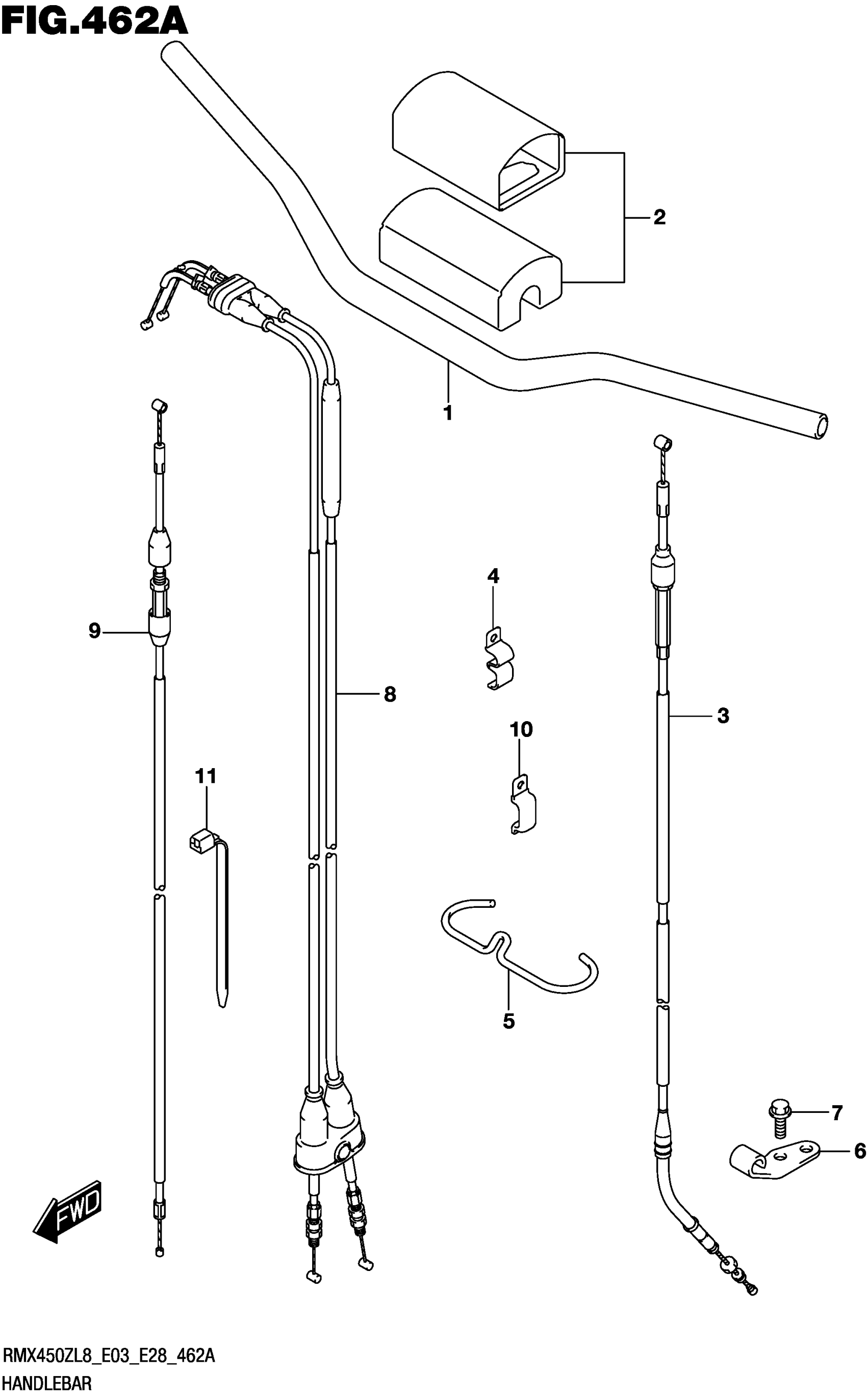

Suzuki RMX450ZL8 (2018) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$249.60

2

PAD SET,HANDLEBAR

56170-35G00

Unavailable

3

CABLE ASSY

58200-02J00

$87.70

4

CLAMP CABLE

58285-02J00

Unavailable

5

GUIDE

58621-02J00

Unavailable

6

STOPPER

58634-02J00

Unavailable

7

BOLT

01547-0612A

$2.03

8

CABLE SET,THROT This part replaces 58301-28H50.

58301-28H51

$93.75

9

CABLE ASSY,HOT This part replaces 58900-02J00.

58900-02J01

$46.15

10

CLAMP This part replaces 09403-10307.

09403-10328

$1.98

11

CLAMP (L:95)

09407-10403

Unavailable
