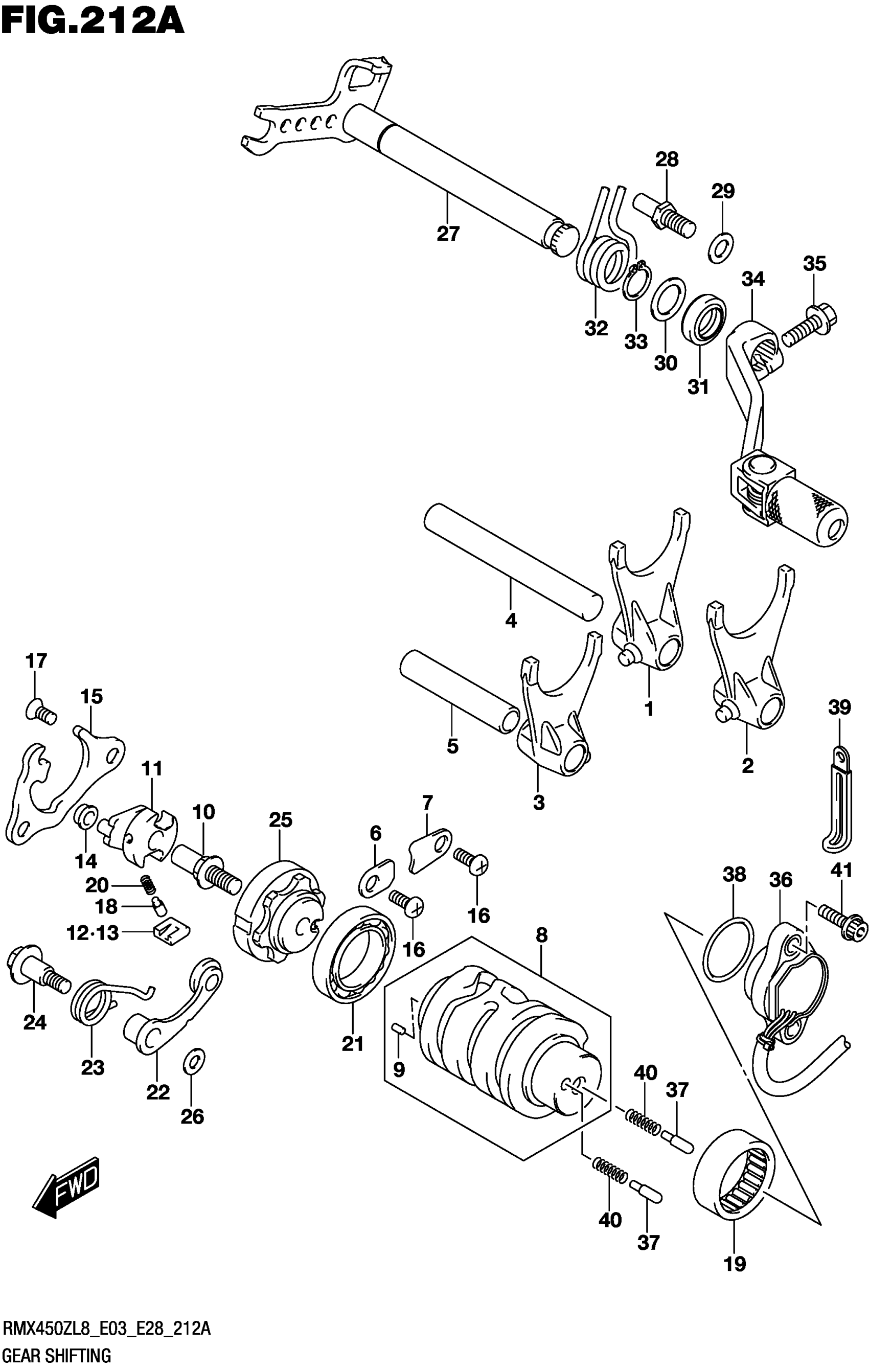

Suzuki RMX450ZL8 (2018) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-28H00

$86.50

2

FORK,GEAR SHIFT NO.2

25221-28H00

$89.43

3

FORK,GEAR SHIFT NO.3

25231-28H00

$88.17

4

SHAFT

25411-28H00

Unavailable

5

SHAFT

25421-28H00

Unavailable

6

RETAINER

24741-21A00

$2.81

7

RETAINER BEARING

24742-18A00

$4.35

8

CAM

25310-28H00

$198.45

9

PIN (4X13.8)

04221-04089

$1.49

10

PIN,GEAR SHIFT CAM

25313-37F00

$14.77

11

SHIFTER,GEAR SHIFT CAM

25322-28H00

$64.68

12

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

13

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

14

ROLLER,GEAR SHIFT CAM SHIFTER

25325-28H00

$12.40

15

LIFTER,GEAR SHIFT PAWL

25331-28H00

$23.47

16

SCREW (6X12)

09125-06122

$2.44

17

SCREW (6X12)

09126-06011

$2.03

18

PIN (5X8)

09209-05023

$2.61

19

BEARING (25X32X12) | LH

09263-25018

$21.39

20

SPRING

09440-04003

$1.54

21

BEARING | RH

08140-68050

$60.33

22

STOPPER

25350-28H00

$21.42

23

SPRING

25355-28H00

$5.39

24

BOLT,SHIFT CAM STOPPER

25357-28H00

$7.85

25

PLATE

25381-10H00

$77.75

26

WASHER

08211-06121

$1.54

27

SHAFT

25510-02J00

$96.30

28

STOPPER,GEAR SHIFT ARM

25671-10H00

$5.98

29

SHIM (8.8X14X1)

09181-08139

$1.91

30

SHIM (14X20X1)

09181-14139

$2.60

31

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

32

SPRING

09444-20011

$7.12

33

CIRCLIP

08331-3114A

$1.91

34

LEVER ASSY

25600-02J00

$155.97

35

BOLT

01547-0620A

$2.03

36

BASE ASSY,GEAR SHIFT TERM

37730-49H00

$125.38

37

PIN (5X15.5)

09209-05011

$2.20

38

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

39

CLAMP (L:45)

09404-06429

$1.83

40

SPRING

09440-04010

$1.54

41

BOLT

07120-0516A

$2.28
