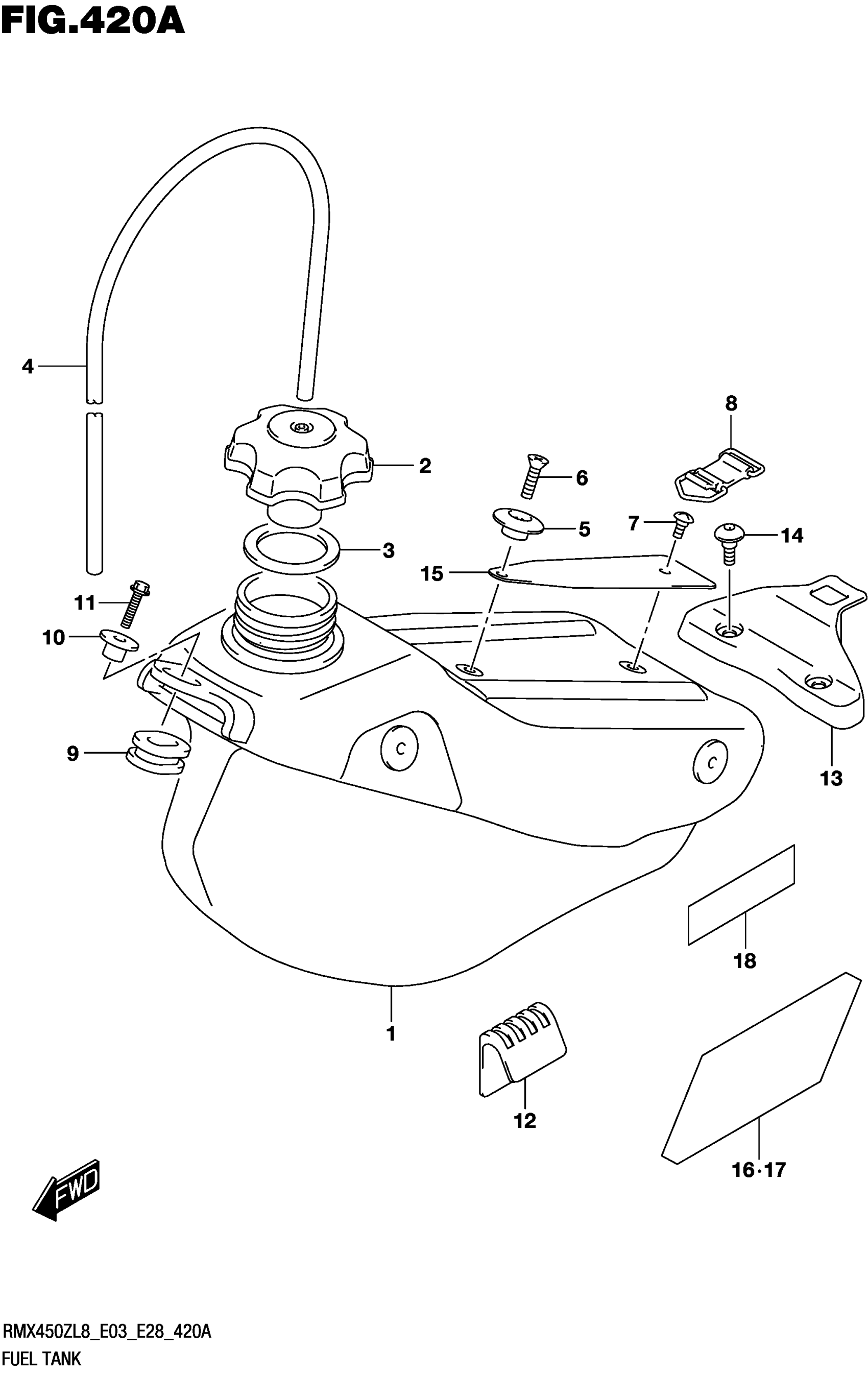

Suzuki RMX450ZL8 (2018) FUEL TANK Diagram

#

Description
Price

1

TANK

44110-28H01

Unavailable

2

CAP,FUEL TANK FILLER

44210-37F00

$34.55

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

4

HOSE,5X10X600 | L:600->350 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

HOOK

44132-37F10

$11.55

6

SCREW

02122-0620B

$1.93

7

SCREW (6X13.5)

09139-06134

$2.63

8

BAND

44560-27C00

$7.69

9

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

$5.05

10

SPACER

44134-35G02

$21.67

11

BOLT (6X30)

09103-06213

$2.47

12

CUSHION,FUEL TA This part replaces 44543-49H00.

44543-49H01

$10.03

13

CUSHION,FUEL TA This part replaces 44542-28H10.

44542-28H11

$12.22

14

BOLT (5X13)

09139-05074

$2.61

15

PROTECTOR

44280-28H00

$45.38

16

PROTECTOR

17795-28H00

$20.45

17

PROTECTOR

17796-28H00

$20.45

18

PROTECTOR

17797-28H00

$13.18
