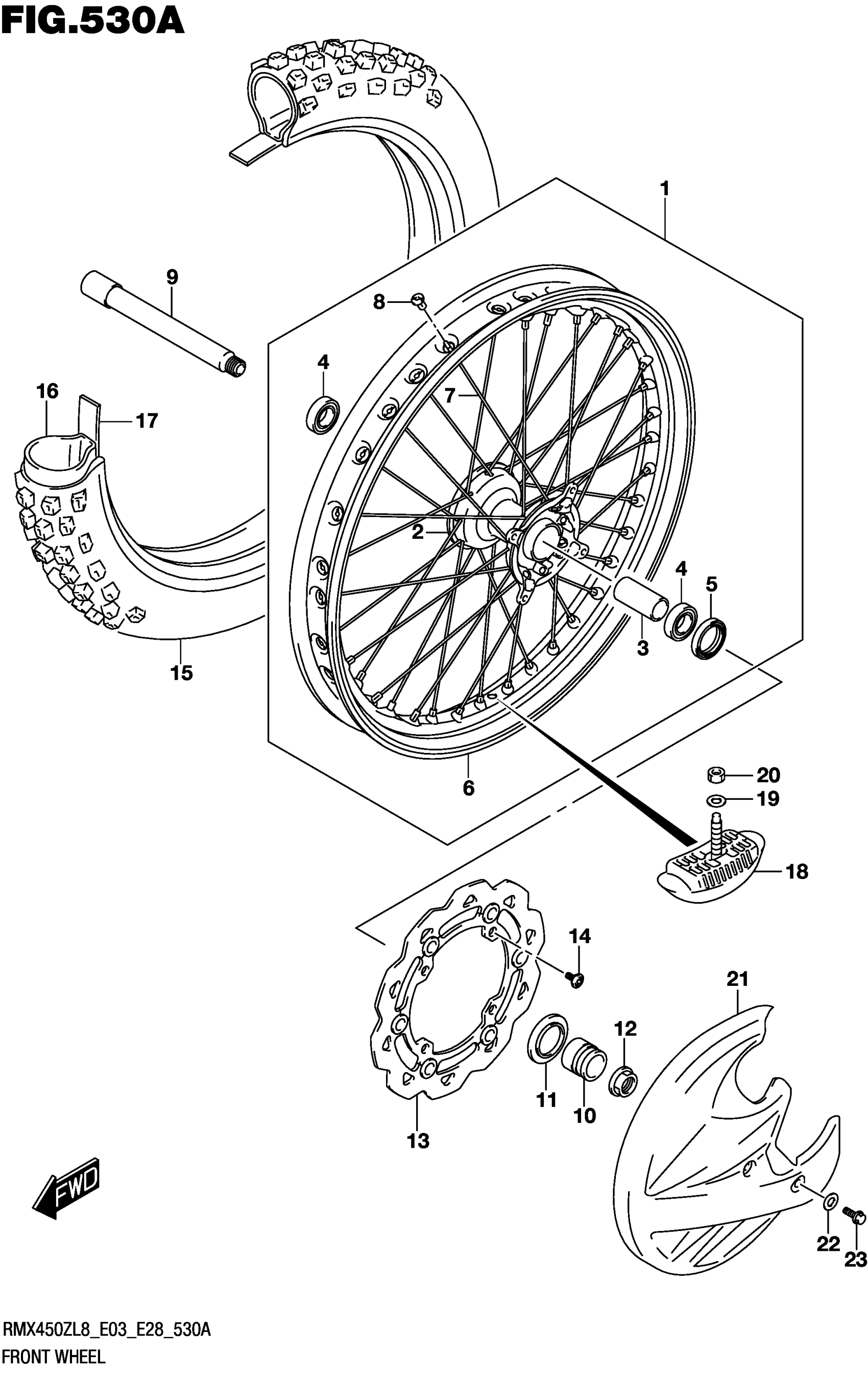

Suzuki RMX450ZL8 (2018) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL ASSY

54100-02J10

$924.43

2

.HUB

54111-02J00

Unavailable

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

$25.52

3

.SPACER,FR HUB BEARING (20.5X

54731-35G00

$25.52

4

.BEARING (22X39X9) This part replaces 09262-22034.

09262-22048

$46.03

5

.SEAL,OIL (30X40X7)

09283-30073

$17.28

6

.RIM

55311-10H10

$371.93

7

.SPOKE,FR WHEEL

55321-35G10

$4.79

8

.NIPPLE,FRONT WHEEL

55325-35G00

$5.83

9

AXLE,FR

54711-35G00

$115.85

10

SPACER,FR AXLE (L:41)

54741-35G00

$31.07

11

COVER,FR AXLE SPACER

54742-35G00

$8.98

12

NUT

09159-18016

$12.48

13

DISC

59220-02J00

$399.87

14

SCREW (6X13.5)

09139-06142

$3.97

15

TIRE

55110-10H00

Unavailable

16

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

17

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

$6.88

18

STOPPER,BEAD

65270-14300

$52.73

19

WASHER

08322-0108A

$1.92

20

NUT

08310-0008A

$1.84

21

COVER,FR BRAKE DISC (BLACK) | OPT

59231-36E30-019

Unavailable

21

COVER,FR BRAKE DISC (BLACK)

59231-36E30-019

Unavailable

22

WASHER,FRONT BRAKE DISC COVER | OPT

59232-36E30

$17.28

23

BOLT (6X12) | OPT

09103-06233

$2.11
