2018 Suzuki RMX450ZL8 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

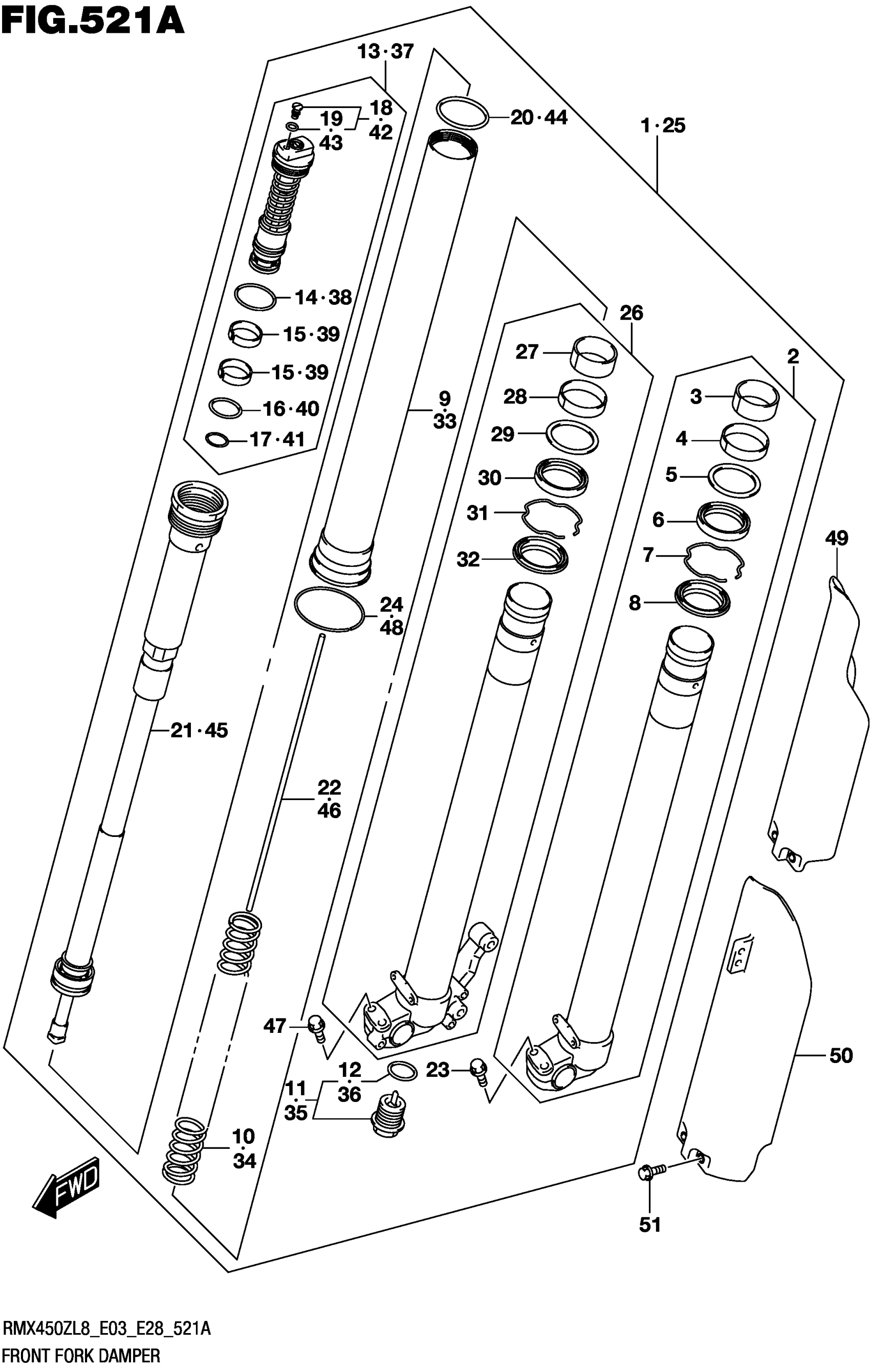

2018 Suzuki RMX450ZL8 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY

51103-02J10

1
Out of stock

2

.TUBE

51110-28H10

1
Out of stock

3

..BUSH

51121-28H10

1
Out of stock

4

..BUSH

51167-28H10

1
Out of stock

5

..SPACER SEAL

51158-36F00

1

$10.58

In stock

6

..SEAL OIL

51153-37F80

1

$29.39

In stock

7

1

$5.33

In stock

8

..SEAL DUST

51173-37F80

1

$26.50

In stock

9

.TUBE

51130-28H01

1
Out of stock

10-1

.SPRING | STD

51171-28H00

1
Out of stock

10-2

.SPRING | OPT

51171-28H10

1
Out of stock

10-2

.SPRING | SOFT

51171-28H10

1
Out of stock

10-3

.SPRING | OPT

51171-28H20

1
Out of stock

10-3

.SPRING | HARD

51171-28H20

1
Out of stock

11

.BOLT

51170-37FC0

1
Out of stock

12

..O RING

51177-36E20

1

$5.43

In stock

13

.BOLT

51351-02J10

1
Out of stock

14

.O RING

51117-37F80

1
Out of stock

15

..BUSH

51123-28H10

2
Out of stock

16

..O RING

51174-36E40

1

$5.63

In stock

17

..O RING

51175-37F80

1
Out of stock

18

..BOLT,PLUG

51357-36F20

1

$15.77

In stock

19

...O-RING

51358-28E30

1

$4.83

In stock

20

..O RING

51118-37F80

1
Out of stock

21

.ROD

51190-02J00

—
Out of stock

22

.ROD

51191-10H10

1
Out of stock

23

BOLT

51328-37F80

2
Out of stock

24

.RING STOPPER

51211-37FC0

1
Out of stock

25

DAMPER ASSY

51104-02J10

1
Out of stock

26

.TUBE

51120-28H10

1
Out of stock

27

..BUSH

51121-28H10

1
Out of stock

28

..BUSH

51167-28H10

1
Out of stock

29

..SPACER SEAL

51158-36F00

1

$10.58

In stock

30

..SEAL OIL

51153-37F80

1

$29.39

In stock

31

1

$5.33

In stock

32

..SEAL DUST

51173-37F80

1

$26.50

In stock

33

.TUBE

51130-28H01

1
Out of stock

34-1

.SPRING | STD

51171-28H00

1
Out of stock

34-2

.SPRING | OPT

51171-28H10

1
Out of stock

34-2

.SPRING | SOFT

51171-28H10

1
Out of stock

34-3

.SPRING | OPT

51171-28H20

1
Out of stock

34-3

.SPRING | HARD

51171-28H20

1
Out of stock

35

.BOLT

51170-37FC0

1
Out of stock

36

..O RING

51177-36E20

1

$5.43

In stock

37

.BOLT

51351-02J10

1
Out of stock

38

.O RING

51117-37F80

1
Out of stock

39

..BUSH

51123-28H10

2
Out of stock

40

..O RING

51174-36E40

1

$5.63

In stock

41

..O RING

51175-37F80

1
Out of stock

42

..BOLT,PLUG

51357-36F20

1

$15.77

In stock

43

...O-RING

51358-28E30

1

$4.83

In stock

44

..O RING

51118-37F80

1
Out of stock

45

.ROD

51190-02J00

—
Out of stock

46

.ROD

51191-10H10

1
Out of stock

47

BOLT

51328-37F80

2
Out of stock

48

.RING STOPPER

51211-37FC0

1
Out of stock

49

PROTECTOR

51501-28H70

1
Out of stock

50

PROTECTOR,FRONT FORK,L

51510-28H70

1
Out of stock

51

BOLT (6X10)

09111-06098

6
Out of stock
