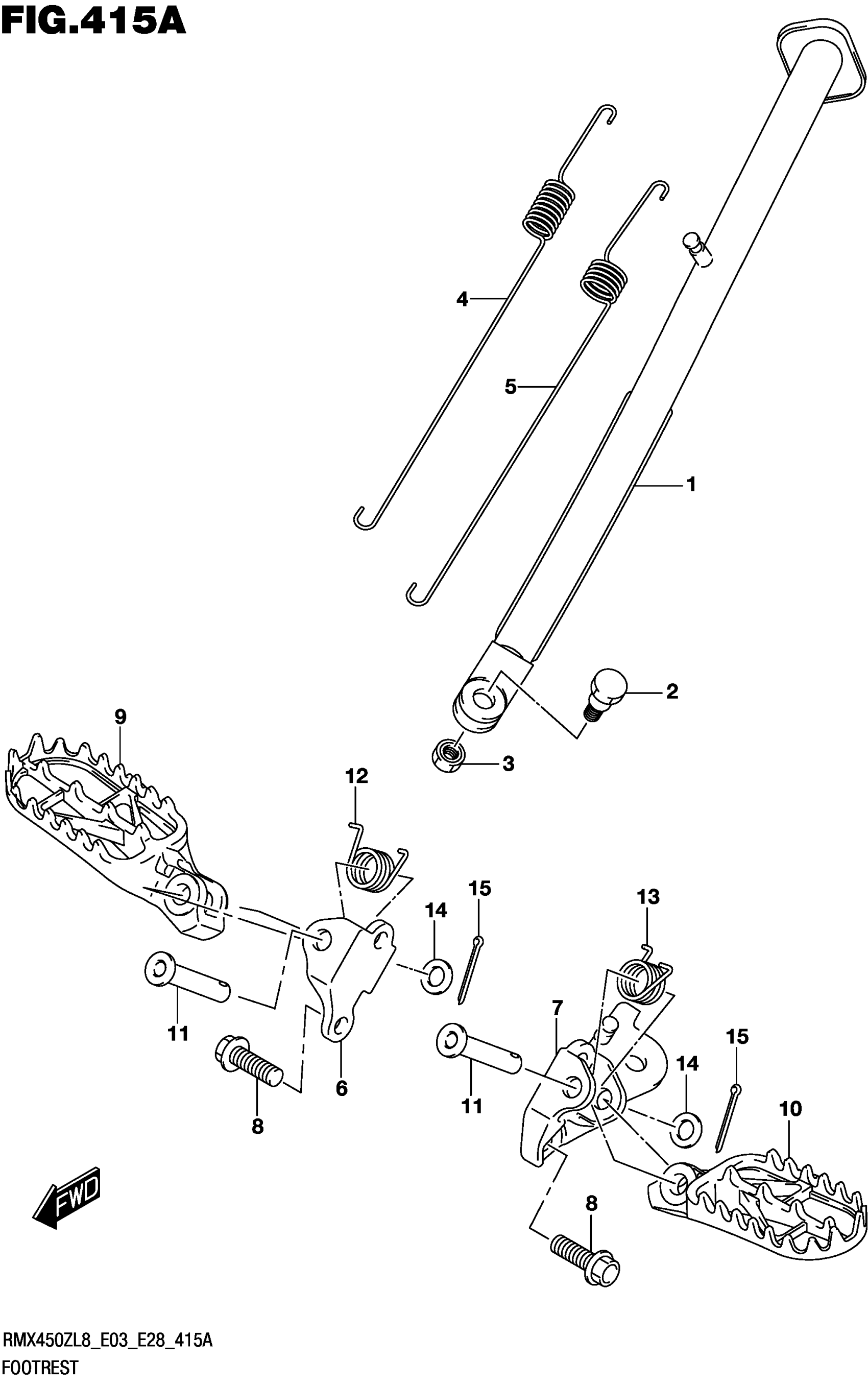

Suzuki RMX450ZL8 (2018) FOOTREST Diagram

#

Description
Price

1

STAND

42310-02J00

$220.86

2

BOLT (10X33)

09111-10060

$4.11

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING

42421-02J00

$15.92

5

SPRING

42422-02J00

$15.92

6

BRACKET,FOOTREST RH

41855-28H10

$151.97

7

BRACKET

41865-02J00

Unavailable

8

BOLT (10X25)

09103-10415

$4.52

9

FOOTREST

43551-28H10

$98.37

10

FOOTREST LH

43561-28H10

$85.63

11

PIN (10X41.5)

09200-10019

$6.83

12

SPRING | RH

09448-21012

$7.40

13

SPRING | LH

09448-21014

$7.73

14

WASHER (10.5X18X1)

09160-10121

$2.03

15

PIN

04111-2520A

$1.49
