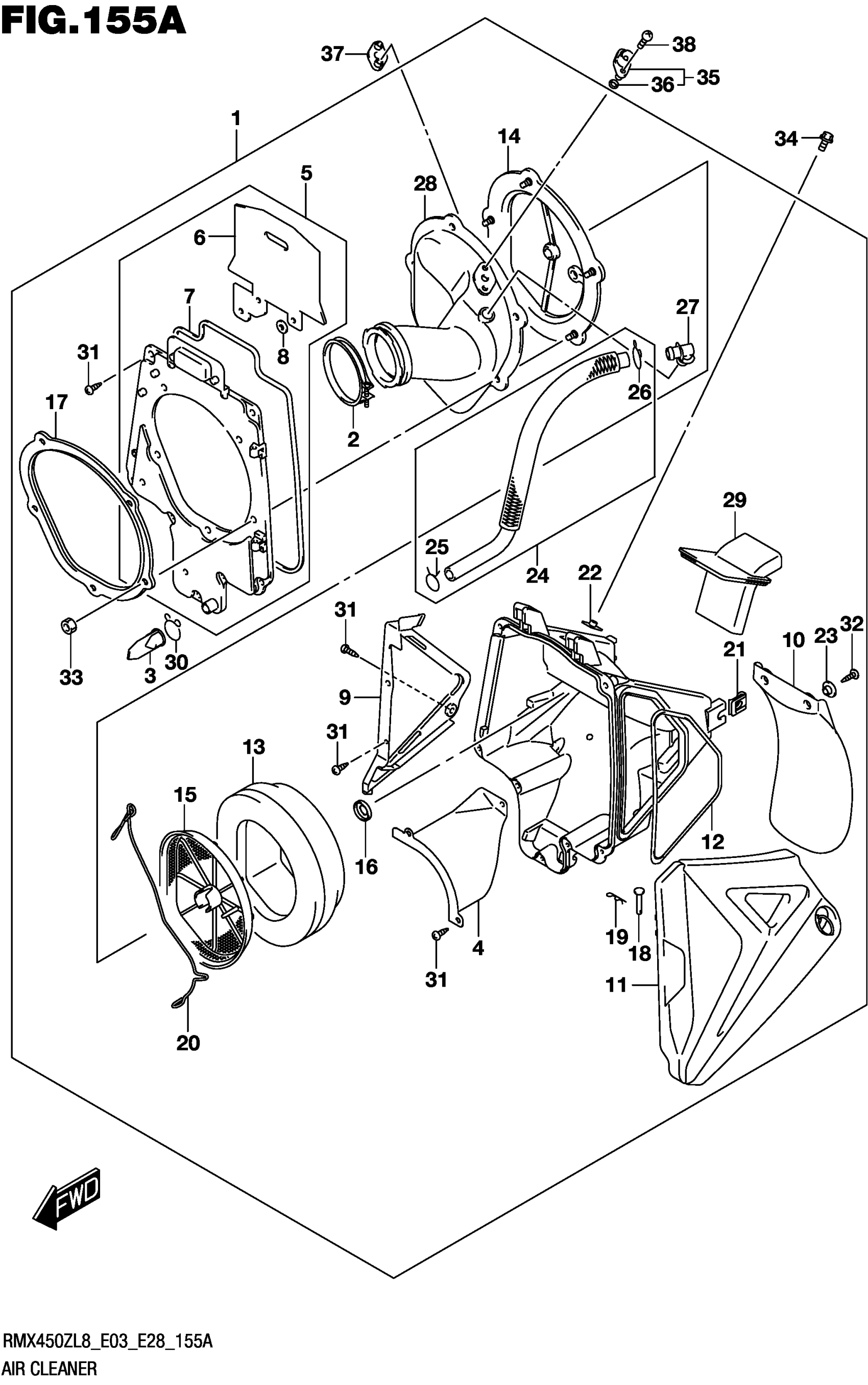

Suzuki RMX450ZL8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY

13700-02J02-30H

Unavailable

2

.CLAMP

13170-25D01

$6.60

3

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

$6.63

4

.PLATE

13719-02J00

Unavailable

5

.CASE

13721-02J00

$46.25

6

..COVER AIR CLEANER

13749-02J00

$21.58

7

..GASKET

13756-02J00

Unavailable

8

..NUT

13832-02J00

$2.13

9

.COVER

13723-02J00

$21.58

10

.MUD GUARD

13738-36E01

$21.90

11

.CAP

13740-02J01-YU1

$59.88

12

.GASKET

13757-02J00

$8.28

13

.FILTER ASSY

13780-02J00

$64.68

14

.BASE

13790-02J00

Unavailable

15

.HOLDER

13791-02J00

$35.93

16

.SPACER

13796-44E00

$3.62

17

.PLATE

13797-02J00

Unavailable

18

.PIN

13822-02J00

$8.05

19

.PIN

13823-02J00

$3.82

20

.SPRING

13825-02J00

Unavailable

21

.RECEPTACLE

13835-02J01

Unavailable

22

.NUT

13836-12D00

Unavailable

23

.COLLAR

13838-02B00

$3.56

24

.TUBE

13850-02J00

Unavailable

25

CLIP

09401-13301

$2.70

26

.CLIP (ID:14.5)

09401-14101

$2.34

27

.JOINT

13858-14D20

$7.22

28

.TUBE

13881-02J00

Unavailable

29

TUBE,INLET This part replaces 13891-02J00.

13891-02J01

$47.25

30

CLIP

09401-17201

$3.15

31

.SCREW

03211-0516B

Unavailable

32

SCREW

03541-0520B

$2.63

33

.NUT

08310-00057

$1.84

34

BOLT

01547-0612A

$2.03

35

SENSOR,AIR TEMP

13650-14G10

$52.06

36

.O-RING

13655-14G10

$9.90

37

BRACKET,AIR TEMP SENSOR

13652-28H00

$12.40

38

.SCREW

02112-0516A

$1.49
