Description

Price

1

CYLINDER ASSY, REAR MASTER

69604-28H10

$294.53

2

.PISTON/CUP SET This part replaces 69600-35811.

69600-35812

$35.35

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-35G00

$21.77

5

.ROD, PUSH

69670-28H00

$26.73

6

.NUT

51212-77500

$7.05

7

.CAP

69669-28H00

$15.33

8

.DIAPHRAGM

69667-37F20

$16.18

9

.SCREW

69689-37F30

$3.65

10

.SEPARATOR

59748-36E00

$9.37

11

.RING

69744-36E00

$4.02

12

SCREW (6X16)

09139-06139

$3.23

13

HOSE This part replaces 69480-28H01.

69480-28H02

$99.73

14

UNION

09360-10065

$8.92

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

GUIDE, HOSE

61196-27C40

$10.00

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

18

PIN (8X20)

09200-08048

$2.92

19

WASHER (8.5X14X1.6)

09160-08090

$2.39

20

COTTER PIN

04111-2015A

$1.49

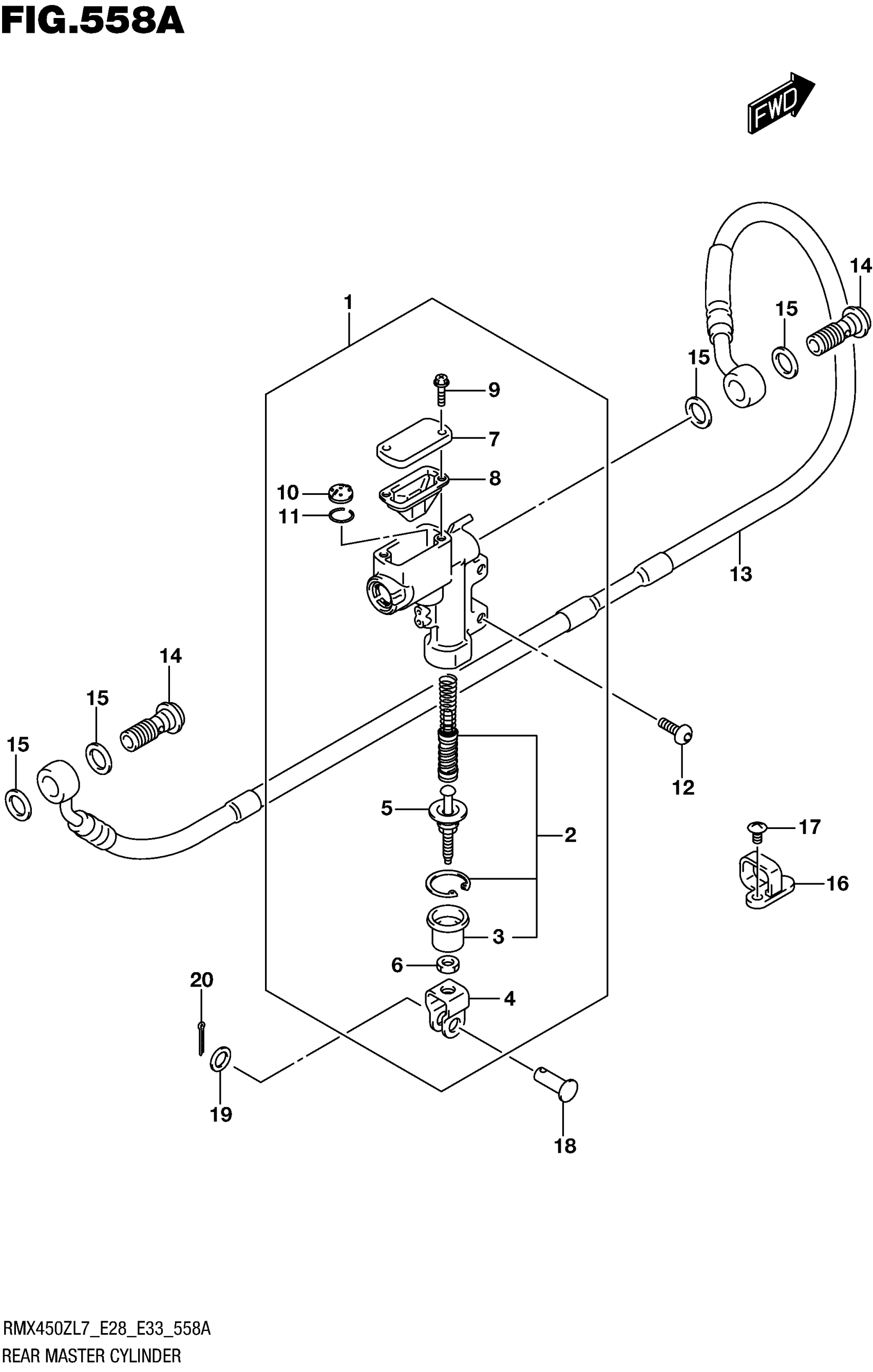

Suzuki RMX450ZL7 (2017) REAR MASTER CYLINDER Diagram
