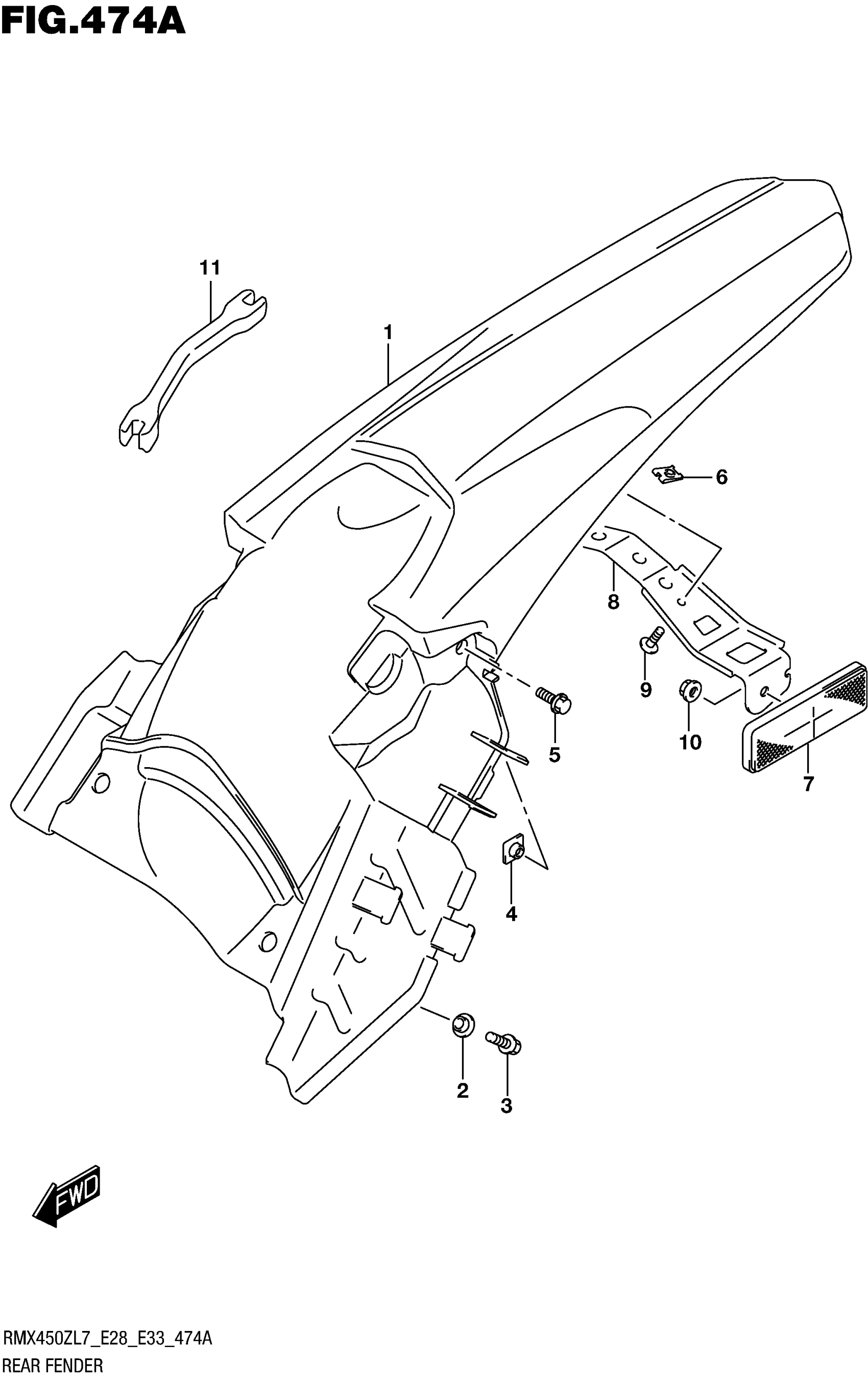

Suzuki RMX450ZL7 (2017) REAR FENDER (RMX450ZL7 E28) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-02J00-YU1

$80.50

2

WASHER, FRONT

63191-02J00

$7.77

3

BOLT

01547-0620A

$2.03

4

NUT

63131-02J00

$13.18

5

BOLT

01547-0616A

$2.03

6

NUT

09148-05052

$3.37

7

REFLECTOR ASSY, RR

35970-07F01

$20.88

8

BRACKET, RR SIDE RR

35974-02J00

Unavailable

9

SCREW

02142-0512A

$1.49

10

NUT

08316-1005A

$2.19

11

SPANNER (6.4X6.8)

09813-00134

$18.48
