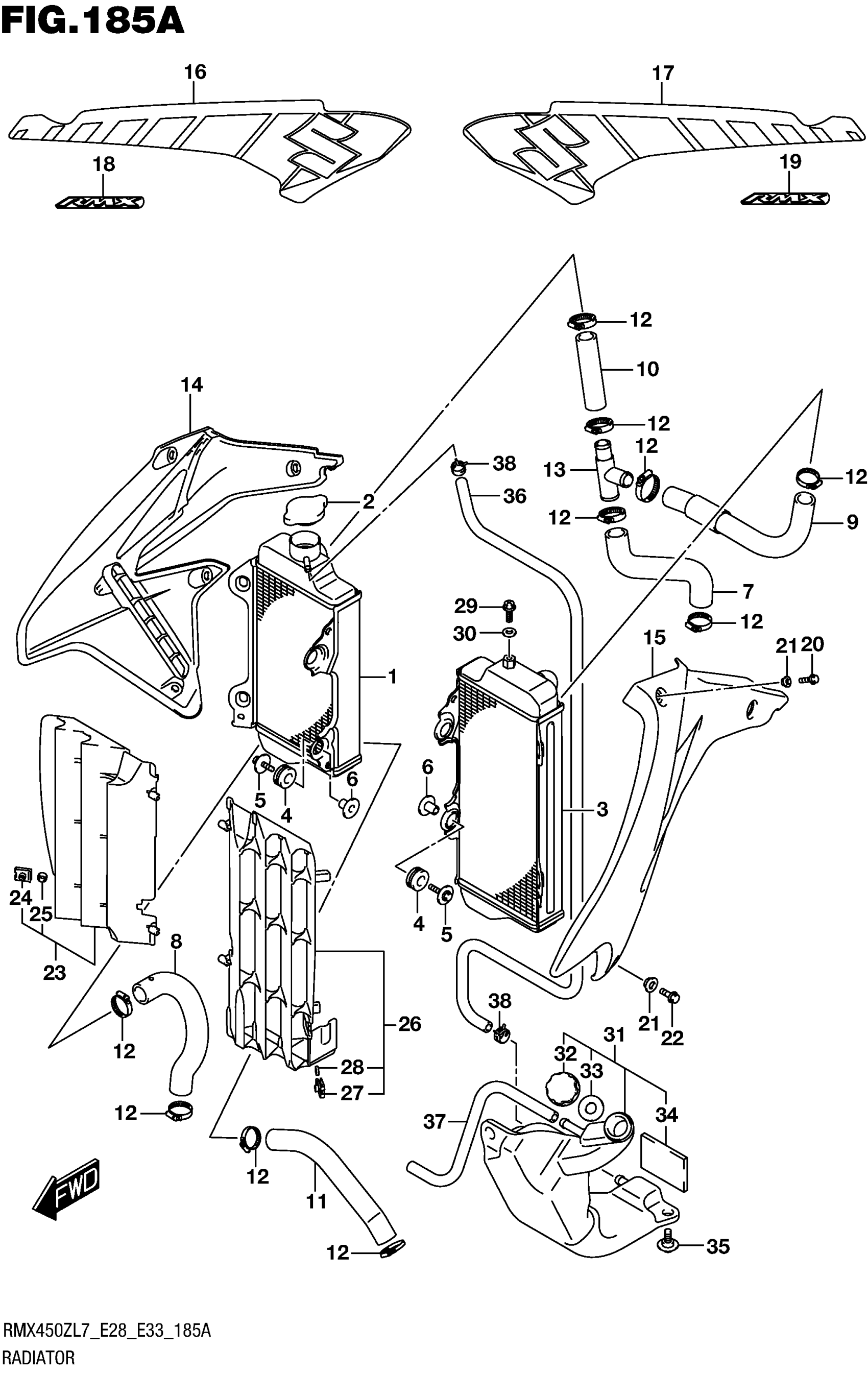

Suzuki RMX450ZL7 (2017) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-28H21

$401.77

2

CAP, RADIATOR (1.1)

17730-08J00

$42.50

3

RADIATOR, LH

17720-28H20

$466.25

4

CUSHION, SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, INLET

17851-28H00

$18.58

8

HOSE, OUTLET

17852-28H00

$22.52

9

HOSE, JOINT UPPER NO.1

17853-28H10

$23.43

10

HOSE, JOINT UPPER NO.2

17854-28H00

Unavailable

11

HOSE, JOINT LOWER

17855-28H00

$18.18

12

CLAMP

09402-28513

$6.88

13

JOINT, RADIATOR HOSE

17860-02J00

Unavailable

14

COVER, RADIATOR, RH

17761-28H02-GY8

$104.82

14

(YELLOW/BLACK)

17761-28H02-GY8

$104.82

15

COVER, RADIATOR, LH

17762-28H02-GY8

$104.82

15

(YELLOW/BLACK)

17762-28H02-GY8

$104.82

16

TAPE, FUEL TANK COVER RH

68111-28H00-BDT

$31.88

17

TAPE, FUEL TANK COVER LH

68121-28H00-BDT

$31.88

18

EMBLEM, "RMX"

68666-02J00-BGJ

$23.02

19

EMBLEM, "RMX"

68666-02J00-BGJ

$23.02

20

BOLT

01547-0612A

$2.03

21

WASHER, RADIATOR COVER

47191-02J00

$18.13

22

BOLT

01547-0616A

$2.03

23

LOUVER, RADIATOR, RH

17801-28H10

$52.22

24

.NUT

09148-06017

$3.20

25

.SPACER (6.2X10X2.2)

09180-06129

$2.12

26

LOUVER, RADIATOR, LH

17802-28H10

$52.22

27

.NUT

09148-06017

$3.20

28

.SPACER (6.2X10X2.2)

09180-06129

$2.12

29

BOLT, AIR RELEASE

17568-50F00

$4.76

30

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

31

TANK ASSY, RESERVOIR

17910-02J00

Unavailable

32

.CAP

17931-02J00

Unavailable

33

.GASKET

17932-02J00

Unavailable

34

.CUSHION

17912-02J00

Unavailable

35

BOLT

17913-02J00

Unavailable

36

HOSE, TANK INLET

17981-02J00

$24.85

37

HOSE (5X9X600) | L:600->360

09352-50901-600

$8.06

38

CLIP

09401-08411

$1.78
