Description

Price

1

CYLINDER ASSY, FRONT MASTER

59600-37F10

$226.62

2

.PISTON & CUP SET

59600-37810

$58.68

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-14500

$10.12

5

.CAP

69669-44E00

$23.07

6

.SCREW

69689-49300

$1.91

7

.HOLDER

59671-27C00

$17.02

8

.BOLT

59675-06F00

$4.73

9

.SEPARATOR

59748-36E00

$9.37

10

UNION

09360-10065

$8.92

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FR BRAKE This part replaces 59480-02J00.

59480-02J01

$235.88

13

CLAMP, INNER

59260-28H10

$29.43

14

CLAMP,FR BRAKE HOSE

59271-28H10

$10.96

15

BOLT

01547-0616A

$2.03

16

GUIDE, BRAKE HOSE

58621-29F20

$11.55

17

BOLT (6X20.5)

09111-06087

$2.71

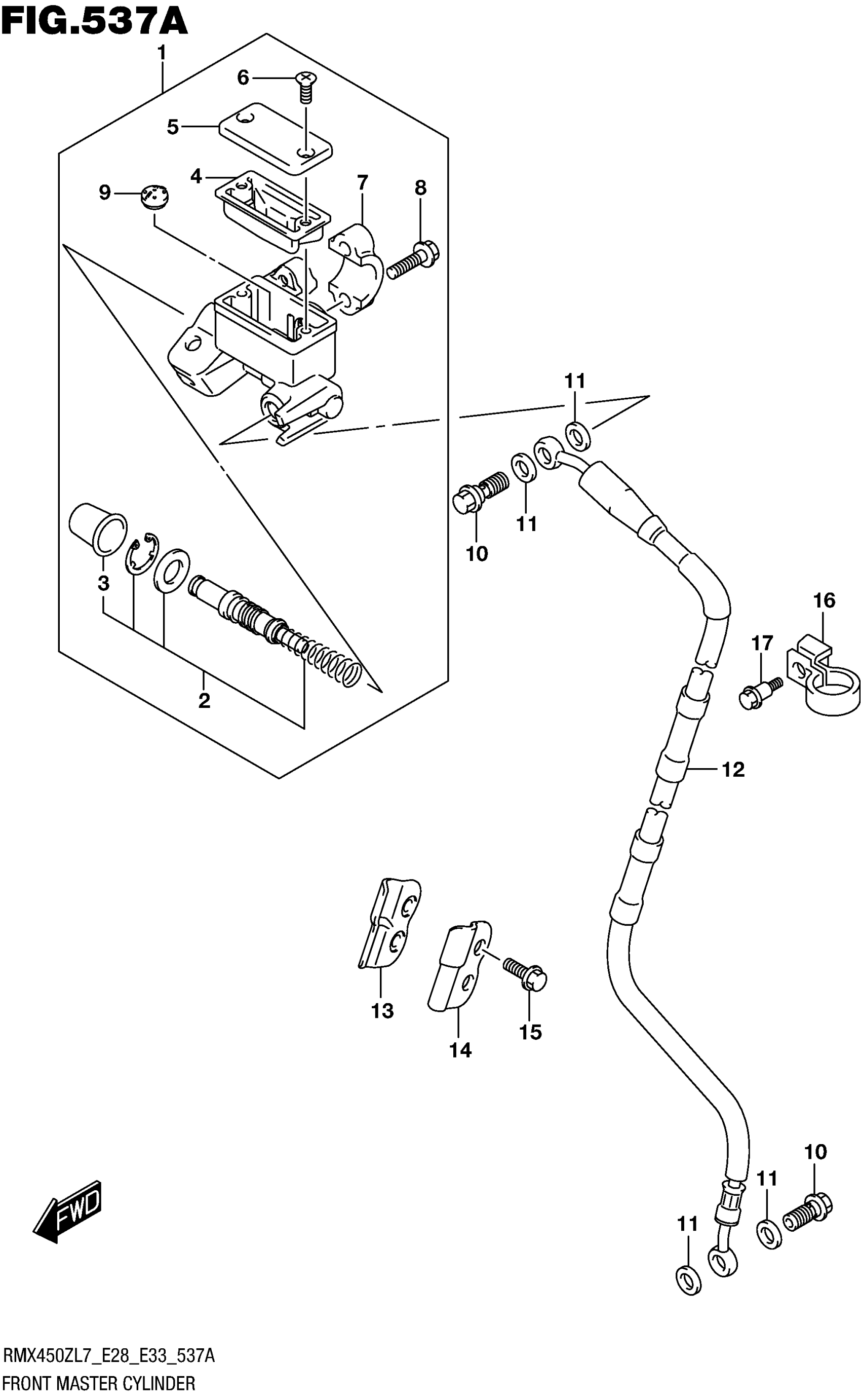

Suzuki RMX450ZL7 (2017) FRONT MASTER CYLINDER Diagram
