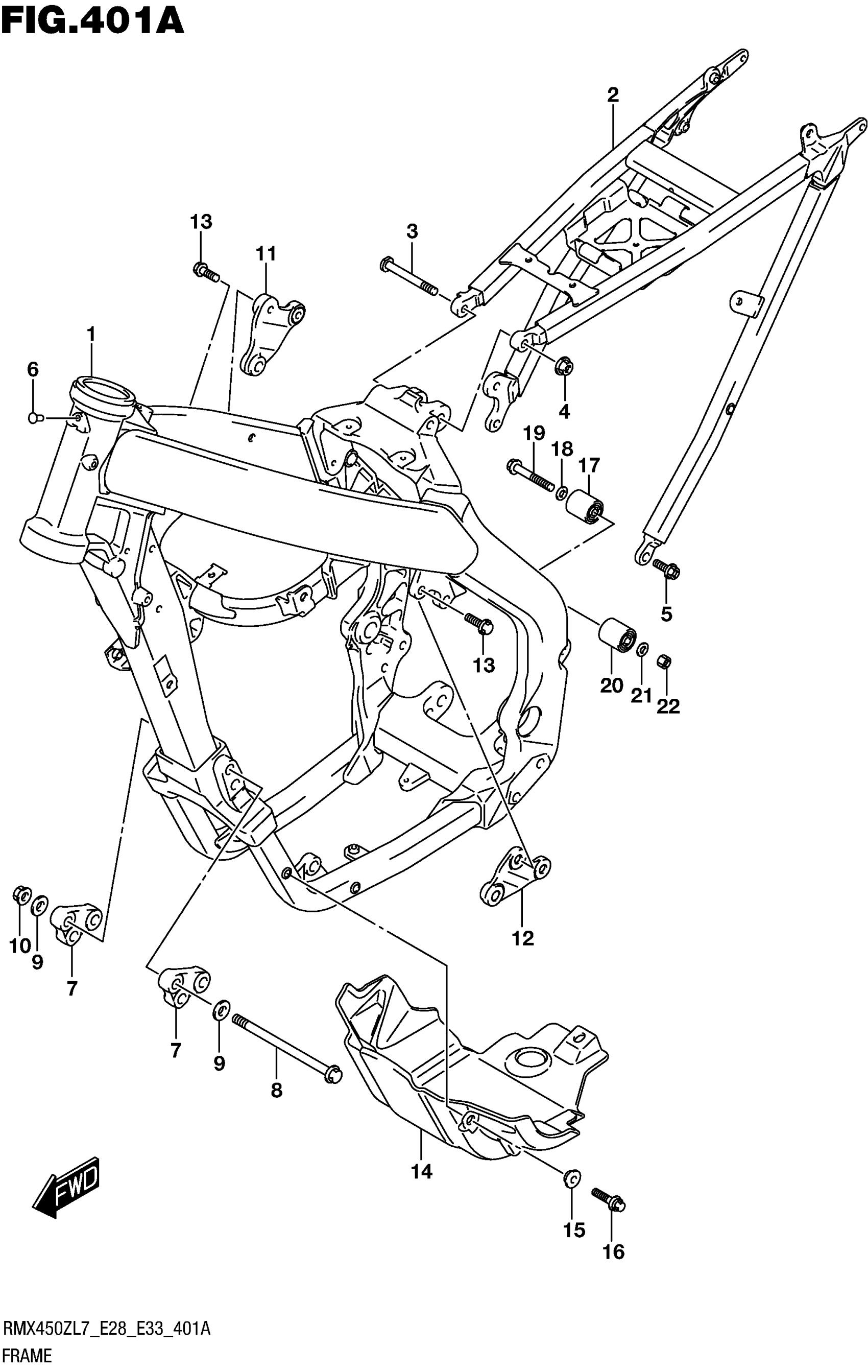

Suzuki RMX450ZL7 (2017) FRAME Diagram

#

Description
Price

1

FRAME

41100-02J00

$5,272.83

2

RAIL, SEAT

41200-02J00

Unavailable

3

BOLT, UPPER

41311-28H20

$19.12

4

NUT

08319-3108A

$2.32

5

BOLT (8X20) | LOWER

09103-08426

$4.60

6

CAP (OD:10)

09250-05009

$2.19

7

BRACKET, ENGINE MOUNT FRONT

41991-02J00

Unavailable

8

BOLT (10X120) | FRONT

09103-10388

$5.78

9

WASHER (10.5X22X2.3)

09160-10039

$2.26

10

NUT

09159-10115

$3.55

11

BRACKET, ENGINE MOUNT UPPER R

41993-28H10

Unavailable

12

BRACKET, ENGINE MOUNT UPPER L

41994-02J10

Unavailable

13

BOLT (8X21) | UPPER

09103-08404

$3.72

14

PROTECTOR, FRONT

42511-02J00

$54.32

15

WASHER

42514-02J00

$6.63

16

BOLT (6X25)

09116-06177

$2.50

17

ROLLER, CHAIN UPPER

43910-37F00

$70.53

18

SHIM (8X16X1)

09181-08167

$1.96

19

BOLT (8X45)

09103-08207

$2.51

20

ROLLER, CHAIN LOWER

43910-35G00

$65.18

21

SHIM (8X12X1)

09181-08111

$1.93

22

NUT

08319-2108A

$2.12
