Description

Price

1

HEAD ASSY, CYLINDER

11100-02J00

$1,209.37

2

.PIN (8X11)

09206-08001

$1.78

3

.BOLT (6X40)

09103-06266

$2.12

4

.BOLT (6X45)

09103-06293

$2.53

5

.O RING (D:2.4,ID:25.7)

09280-26007

$6.52

6

.BOLT (6X10)

09103-06188

$2.90

7

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

$32.26

8

.GASKET,CYLINDER HEAD

11141-28H00

$33.00

9

PIN

04211-13189

$2.19

10

BOLT

07120-0625A

$2.50

11

BOLT,CYLINDER HEAD (L:140)

11117-28H00

$16.04

12

BOLT,CYLINDER HEAD (L:120)

11161-45G00

$9.31

13

SPARK PLUG (CR8EIB-10) | NGK

09482-00584

$11.97

14

PIPE, INTAKE

13101-02J00

Unavailable

15

SCREW

02122-0616A

$1.49

16

CLAMP, INTAKE PIPE

13170-35G01

$15.63

17

BOLT (10X43) | LH

09103-10116

$6.02

18

BOLT (10X30) | RH

09103-10359

$4.32

19

C RING, INTAKE

12749-35G01

$3.56

20

C RING, EXHAUST

12749-10H00

$4.16

21

.BOLT

07120-0610A

$2.30

22

GASKET (5.8X13X1.2)

09168-06023

$2.35

23

SENSOR, WATER TEMP

13650-14G00

$52.02

24

.O RING

13655-14G00

$9.55

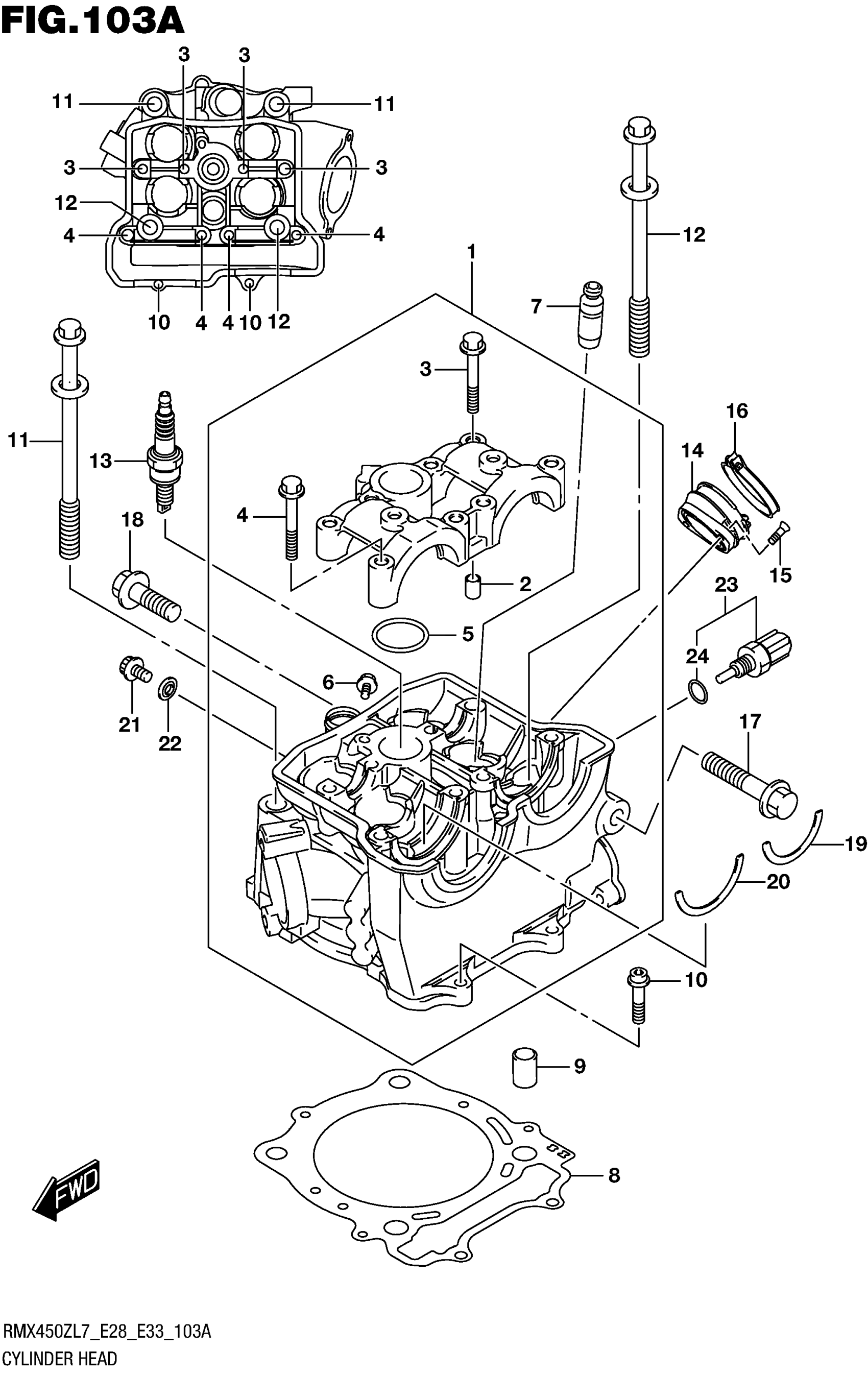

Suzuki RMX450ZL7 (2017) CYLINDER HEAD Diagram
