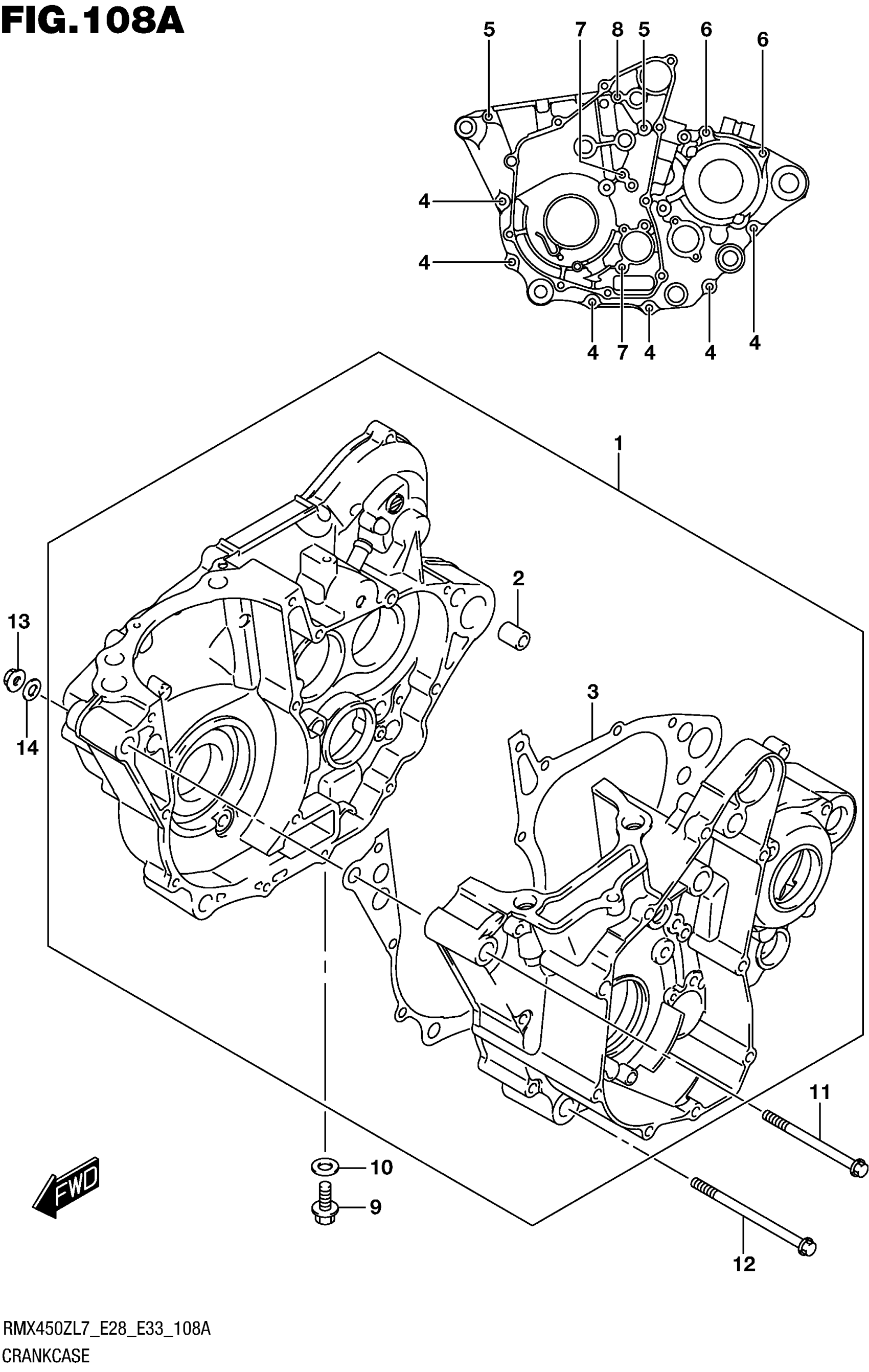

Suzuki RMX450ZL7 (2017) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-02810

Unavailable

2

.PIN

04211-13189

$2.19

3

.GASKET, CRANKCASE

11481-02J00

$27.40

4

.BOLT

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

BOLT

01547-0675A

$3.28

7

.BOLT

01547-0680A

$3.30

8

.BOLT

01547-0690A

$2.70

9

BOLT (8X20) | OIL DRAIN

09103-08393

$2.50

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

BOLT (10X120)

09103-10388

$5.78

12

BOLT (10X125)

09103-10399

$7.05

13

NUT

09159-10115

$3.55

14

WASHER (10.5X22X2.3)

09160-10039

$2.26
