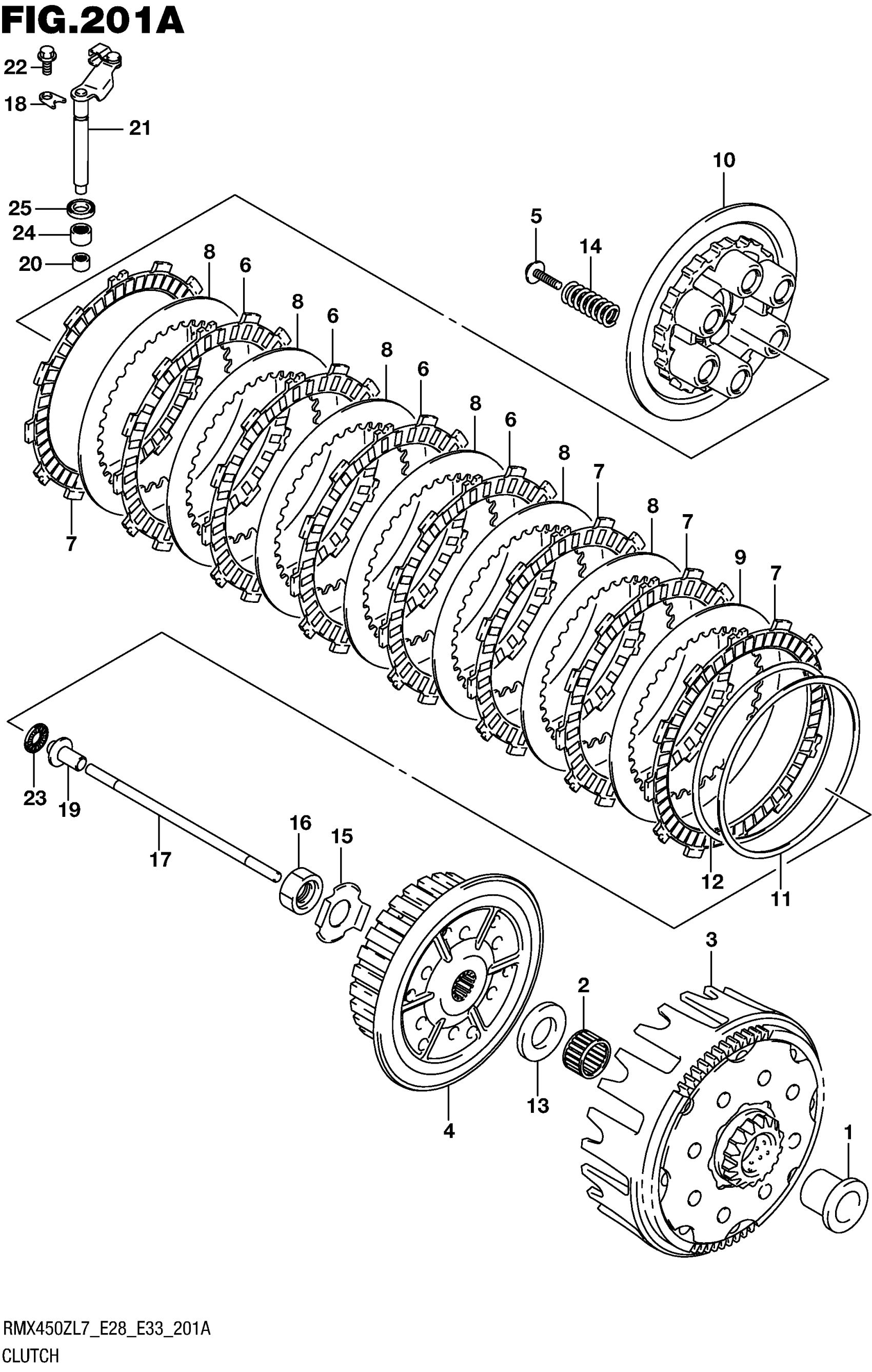

Suzuki RMX450ZL7 (2017) CLUTCH Diagram

#

Description
Price

1

SPACER,PRI DRIVEN GEAR

21251-28H00

$52.23

2

BEARING (28X32X26)

09263-28042

$29.55

3

GEAR ASSY, PRIMARY DRIVEN

21200-02J00

Unavailable

3

(NT:16/65)

21200-02J00

Unavailable

4

HUB, CLUTCH SLEEVE

21411-35G11

$105.52

5

BOLT,CLUTCH SPRING (6X25)

21412-35G00

$3.05

6

PLATE, CLUTCH DRIVE NO.1

21441-02J00

$30.95

6

(T:2.9)

21441-02J00

$30.95

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$13.53

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$13.53

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-35G00

$9.89

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-35G00

$12.40

10

DISC,CLUTCH PRESSURE

21462-28H00

$61.85

11

SEAT,WAVE WASHER

21471-28H00

$17.37

12

WASHER,CLUTCH PLATE WAVE

21472-35G00

$21.87

13

WASHER (22.5X39X3)

09160-22082

$14.25

14

SPRING

09440-18044

$5.72

15

WASHER,CLUTCH SLEEVE HUB LOCK

21416-35G10

$4.72

16

NUT

09140-18017

$12.00

17

ROD,CLUTCH PUSH

23110-28H00

$24.93

18

RETAINER,CL RELEASE CAMSHAFT

23117-28H00

$4.58

19

PIECE,CLUTCH PUSH

23121-37F00

$20.21

20

BEARING, CLUTCH RELEASE

23129-35G00

$10.55

21

CAMSHAFT, CLUTCH RELEASE

23200-02J00

Unavailable

22

BOLT (6X12)

09103-06280

$3.03

23

BEARING (10X22X2.8)

09263-10002

$10.19

24

BEARING (10X14X10)

09263-10014

$13.52

25

OIL SEAL (10X17X5)

09285-10004

$3.37
