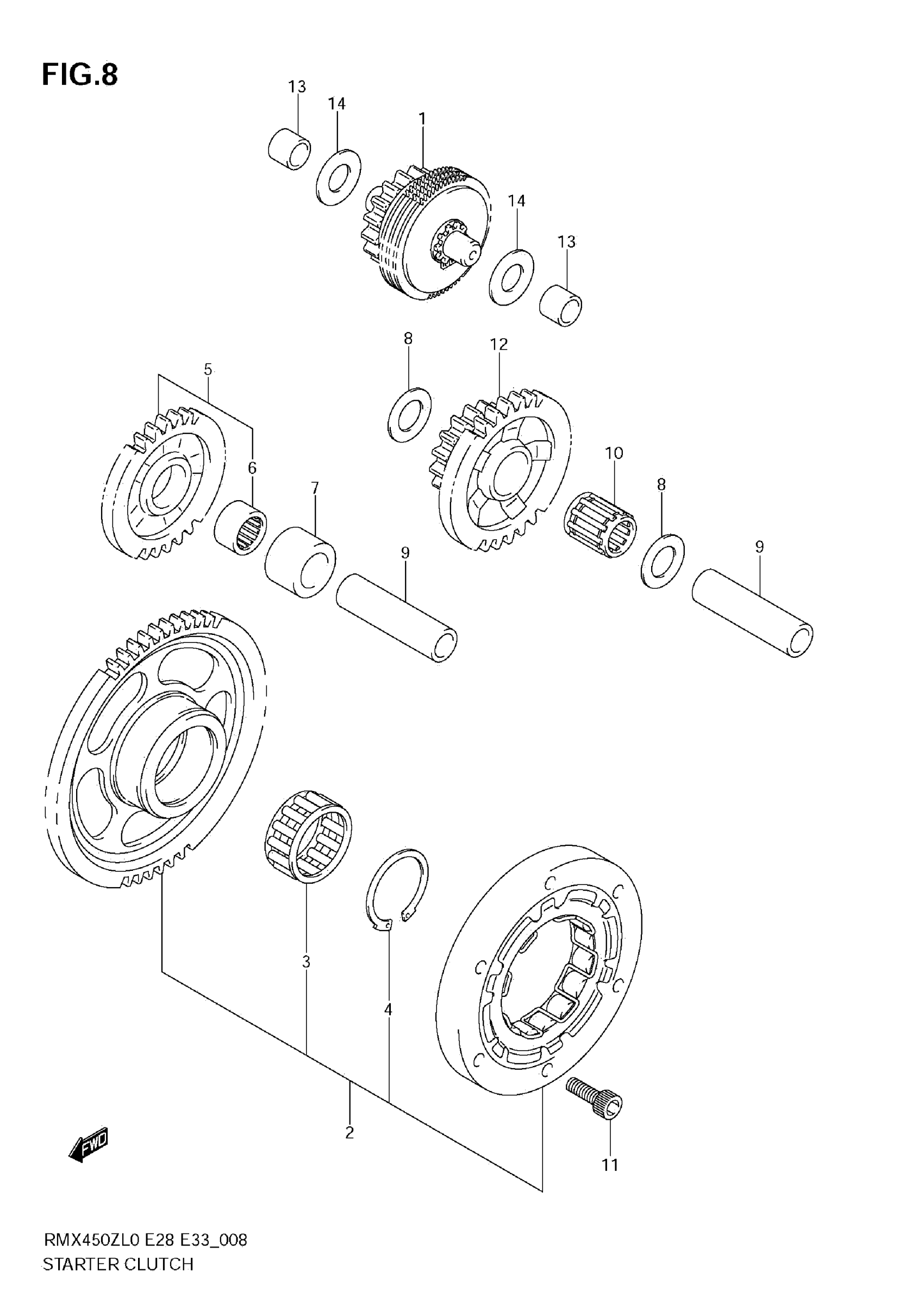

Suzuki RMX450ZL0 (2010) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE GEAR

12600-02J00

Unavailable

2

CLUTCH SET, STARTER

12600-02810

Unavailable

3

BEARING

09263-22072-0B0

$21.97

4

CIRCLIP

09381-28005

Unavailable

5

GEAR, STARTER IDLE

12630-02J00

Unavailable

6

BEARING

09263-12024

$12.67

7

SPACER

09180-12139

$8.07

8

WASHER

09181-12167

$2.26

9

PIN

09206-12006

$9.43

10

BEARING

09263-12022

$17.67

11

BOLT

09106-06073

$2.39

12

GEAR, STARTER IDLE NO.2

12612-02J00

Unavailable

13

BUSH

12618-31G00

$4.03

14

WASHER

08211-10221

$2.28
