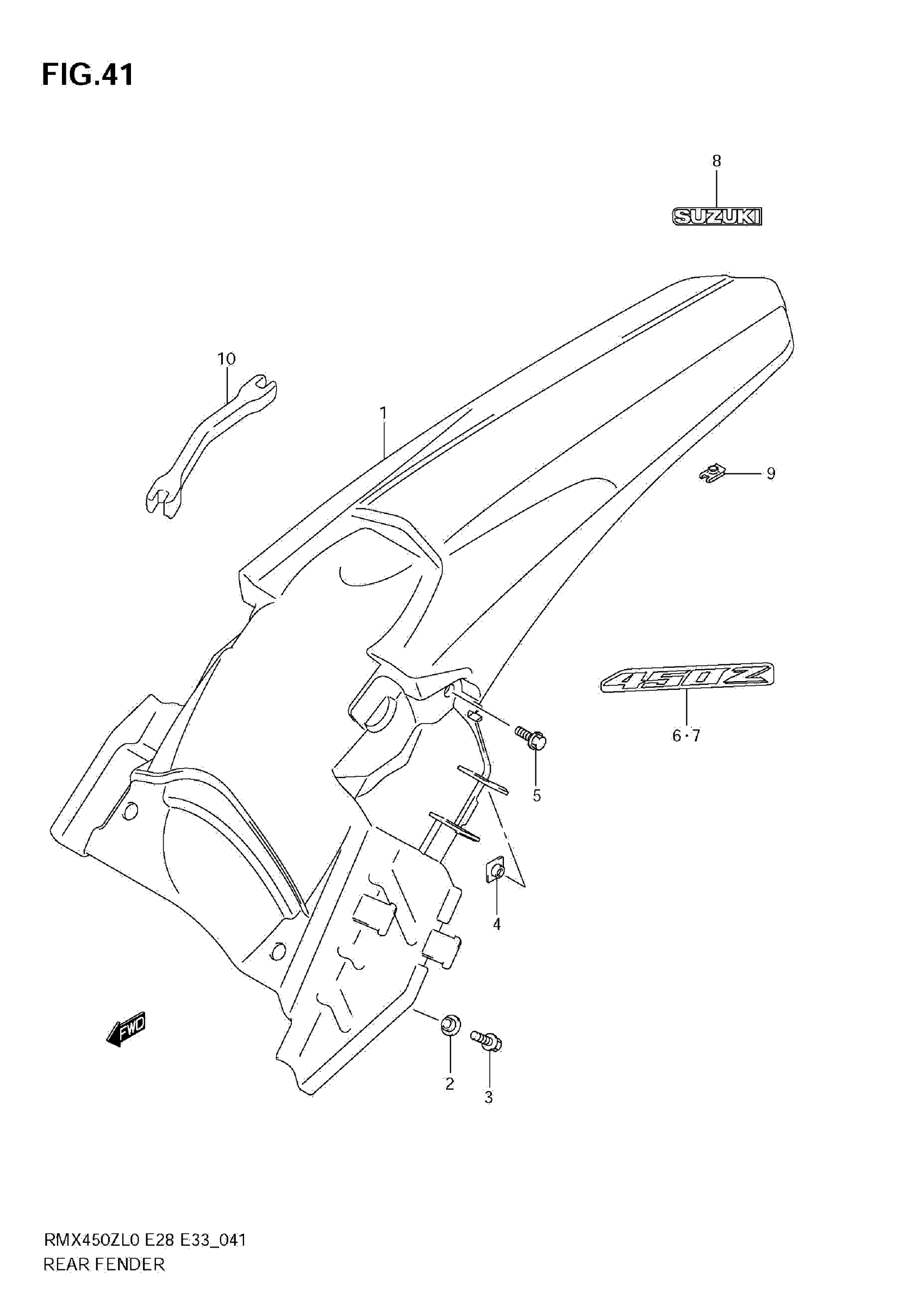

Suzuki RMX450ZL0 (2010) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-02J00-YU1

$90.43

2

WASHER, FRONT

63191-02J00

$8.77

3

BOLT, FRONT

01547-06207

$2.01

4

NUT

63131-02J00

$14.88

5

BOLT, REAR

09103-06234

$2.17

6

EMBLEM, RH

68175-02J00-LV8

Unavailable

7

EMBLEM, LH

68176-02J00-LV8

Unavailable

8

EMBLEM,SUZUKI This part replaces 68131-21H00-019.

68131-21H01-019

$10.70

9

NUT, REFLECTOR | E28

09148-05052

$3.04

10

SPANNER (6.4X6.8)

09813-00134

$20.67
