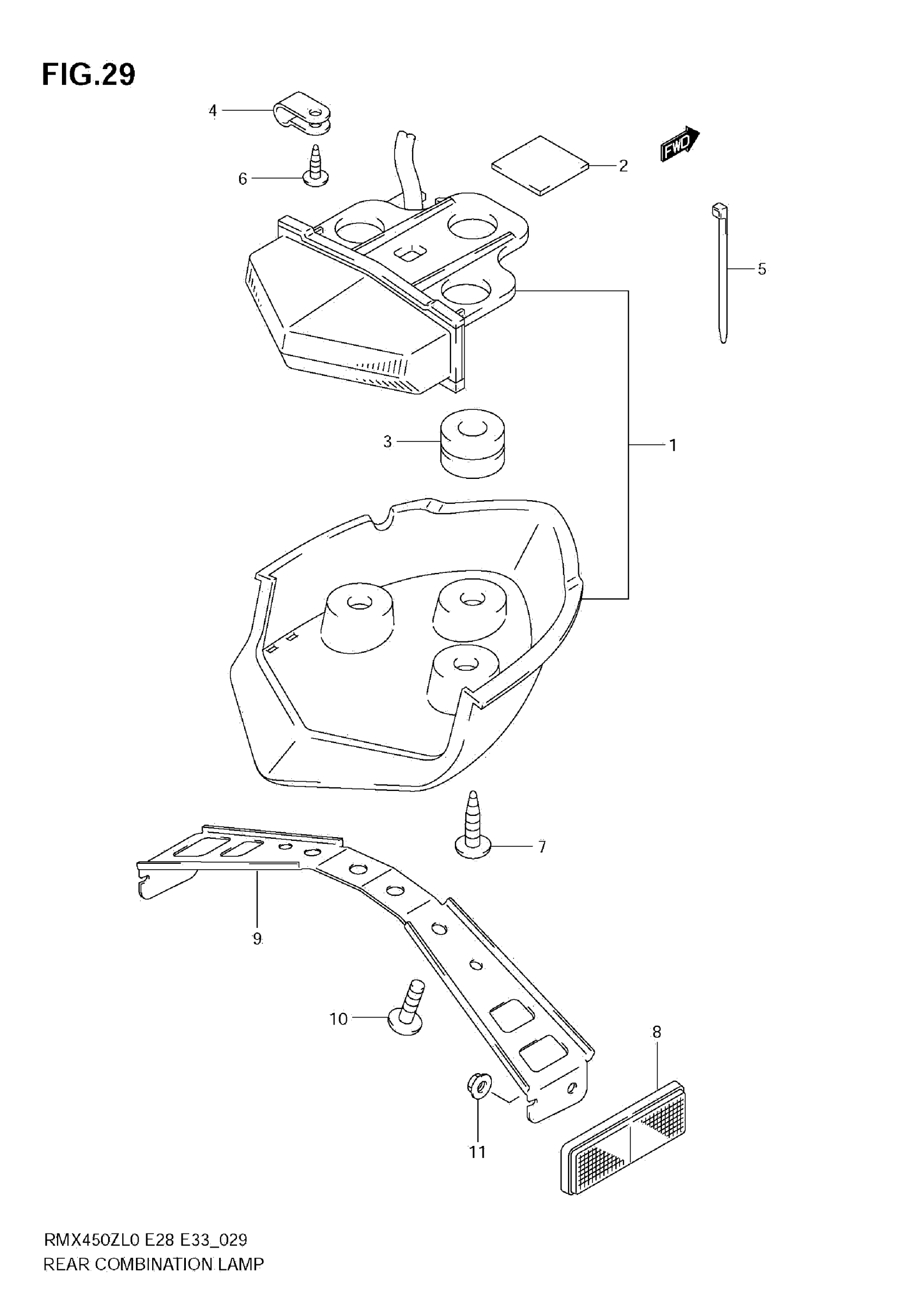

Suzuki RMX450ZL0 (2010) REAR COMBINATION LAMP (E28) Diagram

#

Description
Price

1

LAMP ASSY, TAIL

35710-02J10

Unavailable

2

CUSHION (30X40X1)

33652-13G00

$4.05

3

CUSHION, TAIL LAMP

09320-09010

$2.80

4

CLAMP

09403-06408

$3.37

5

CLAMP (L:145)

09407-14407

$2.80

6

SCREW

03541-0410A

$1.83

7

SCREW

03541-0516A

$1.37

8

REFLECTOR ASSY, REAR SIDE

35970-07F01

$19.11

9

BRACKET, REAR SIDE

35974-02J00

Unavailable

10

SCREW

02142-0512A

$1.37

11

NUT

08316-1005A

$2.19
