2010 Suzuki RMX450ZL0 Headlamp Diagram

← All diagrams

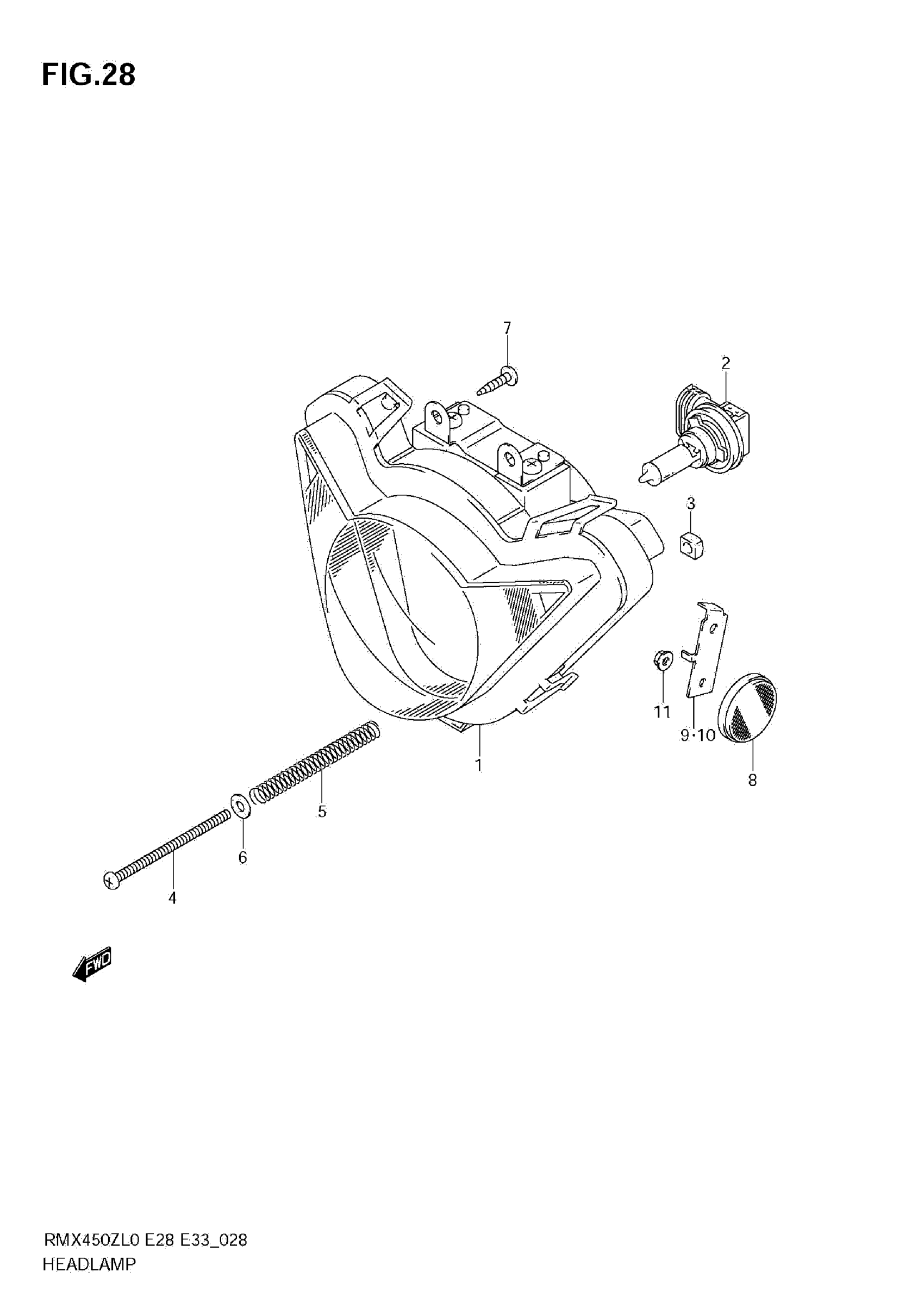

Find the part on the Headlamp diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RMX450ZL0 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-02J00-999

1
Out of stock

2

BULB (12V35W)

09471-12211

1
Out of stock

3

NUT, HEADLAMP

35152-02J00

1
Out of stock

4

SCREW, HEADLAMP ADJUST

35151-02J00

1
Out of stock

5

SPRING, HEADLAMP ADJUST

35154-02J00

1
Out of stock

6

WASHER

08322-0104A

1
Out of stock

7

SCREW

03541-0516A

2
Out of stock

8

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

2
Out of stock

9

BRACKET, FRONT SIDE RR, R | E28

35956-02J00

1
Out of stock

10

BRACKET, FRONT SIDE RR, L | E28

35957-02J00

—
Out of stock

11

NUT | E28

08316-1005B

2
Out of stock
