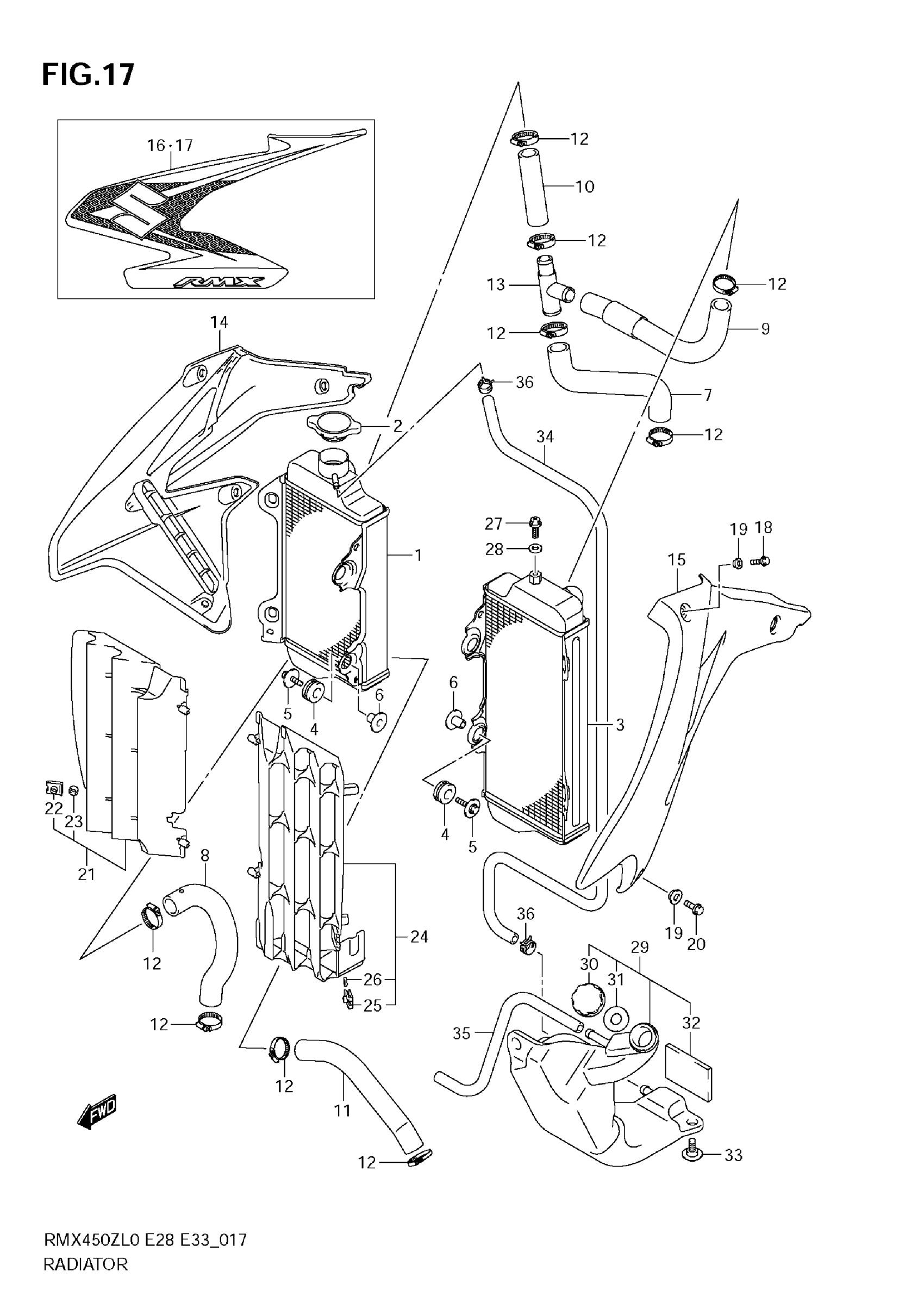

Suzuki RMX450ZL0 (2010) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH This part replaces 17710-28H20.

17710-28H21

$401.77

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

RADIATOR, LH

17720-28H20

$466.25

4

CUSHION, SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER

09180-06243

$5.46

7

HOSE, INLET

17851-28H00

$18.58

8

HOSE, OUTLET

17852-28H00

$22.52

9

HOSE, JOINT UPPER NO.1

17853-28H10

$23.43

10

HOSE, JOINT UPPER NO.2

17854-28H00

Unavailable

11

HOSE, JOINT LOWER

17855-28H00

$18.18

12

CLAMP

09402-28513

$6.88

13

JOINT, RADIATOR HOSE

17857-35G10

$7.73

14

COVER, RADIATOR RH (YELLOW/BLACK) This part replaces 17761-28H01-GY8.

17761-28H02-GY8

$104.82

15

COVER, RADIATOR LH (YELLOW/BLACK) This part replaces 17762-28H01-GY8.

17762-28H02-GY8

$104.82

16

TAPE, RADIATOR COVER, RH

68115-02J00-HBP

Unavailable

17

TAPE, RADIATOR COVER, LH

68116-02J00-HBP

Unavailable

18

BOLT (6X12)

09103-06233

$2.11

19

WASHER, RADIATOR COVER

47191-02J00

$18.13

20

BOLT (6X16)

09103-06234

$2.35

21

LOUVER, RADIATOR, R

17801-28H10

$52.22

22

.NUT

09148-06017

$3.20

23

.SPACER (6.2X10X2.2)

09180-06129

$2.12

24

LOUVER, RADIATOR, L

17802-28H10

$52.22

25

.NUT

09148-06017

$3.20

26

.SPACER (6.2X10X2.2)

09180-06129

$2.12

27

BOLT, AIR RELEASE

17568-50F00

$4.76

28

GASKET

09168-06026

$3.10

29

TANK ASSY, RESERVOIR

17910-02J00

Unavailable

30

CAP

17931-02J00

Unavailable

31

GASKET

17932-02J00

Unavailable

32

CUSHION

17912-02J00

Unavailable

33

BOLT

17913-02J00

Unavailable

34

HOSE, TANK INLET

17981-02J00

$24.85

35

HOSE, TANK OVERFLOW | L:600!360

09352-50901-600

$8.06

36

CLIP

09401-08411

$1.78
