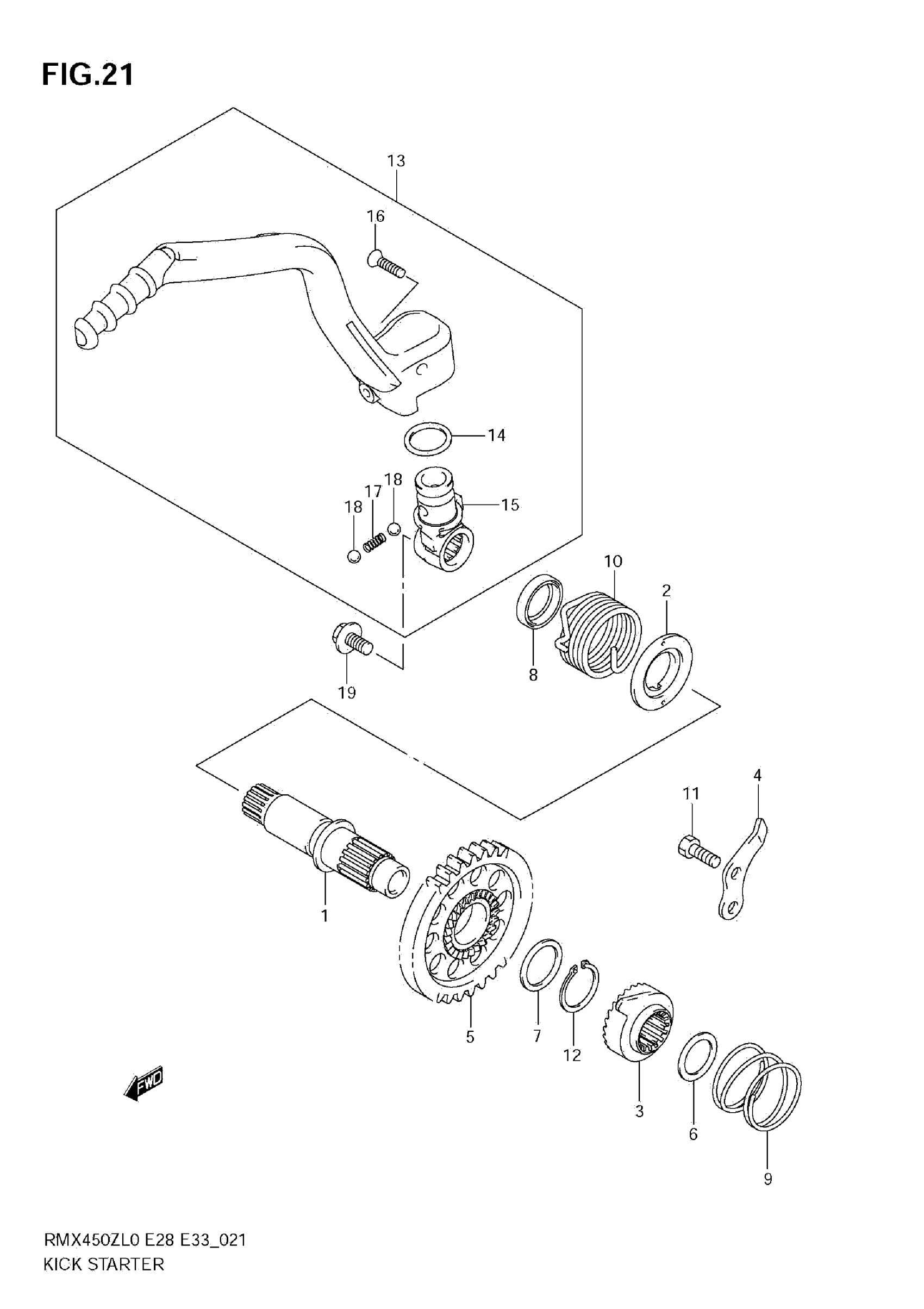

Find the part on the Kick Starter diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RMX450ZL0 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,KICK STARTER

26211-28H00

1
Out of stock

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

1
Out of stock

3

STARTER,KICK

26231-28H00

1
Out of stock

4

GUIDE,KICK STARTER

26232-28H00

1
Out of stock

5

GEAR, KICK STARTER DRIVE

26240-35G00

1
Out of stock

6

WASHER (17X24X0.5)

09181-17130

1
Out of stock

7

WASHER (20X26X1)

09181-20139

1
Out of stock

8

SEAL, KICK STARTER SHAFT OIL

09283-20031

1
Out of stock

9

SPRING, KICK STARTER

09440-32002

1
Out of stock

10

SPRING, KICK STARTER SHAFT

09448-38007

1
Out of stock

11

BOLT, KICK STARTER STOPPER

01500-0612A

1
Out of stock

12

CIRCLIP, KICK START DRIVE GEAR

08331-3120A

1
Out of stock

13

LEVER ASSY,KICK This part replaces 26300-28H20.

26300-28H21

1
Out of stock

14

.O-RING This part replaces 26313-28E20.

26313-28E21

1
Out of stock

15

.JOINT,KICK STARTER LEVER

26331-28H20

1
Out of stock

16

SCREW (6X27.5)

09127-06016

1
Out of stock

17

SPRING, KICK STARTER LEVER

09440-05031

1
Out of stock

18

BALL

06111-07004

2
Out of stock

19

BOLT (8X14)

09103-08522

1
Out of stock
