2010 Suzuki RMX450ZL0 Gasket SET Diagram

← All diagrams

Find the part on the Gasket SET diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

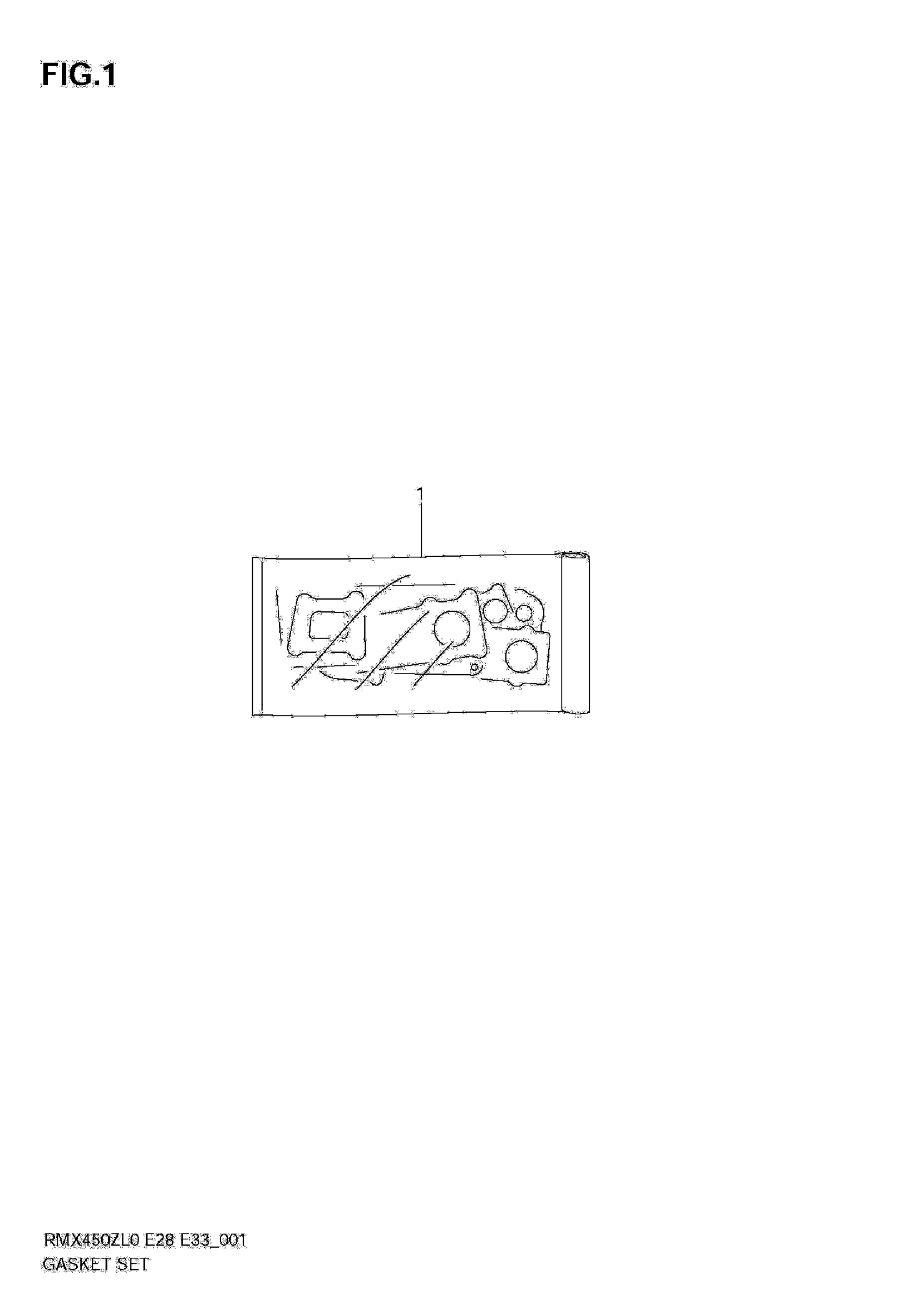

2010 Suzuki RMX450ZL0 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11401-28850

1
Out of stock

2

.GASKET,CYLINDER HEAD | NOT SHOWN

11141-28H00

1
Out of stock

3

.GASKET,CYL HEAD COVER | NOT SHOWN

11173-28H00

1
Out of stock

4

.GASKET,CYLINDER | NOT SHOWN

11241-28H10

1
Out of stock

5

GASKET, CRANKCASE | NOT SHOWN

11481-02J00

1
Out of stock

6

.GASKET,CLUTCH COVER | NOT SHOWN

11482-28H00

1
Out of stock

7

GASKET, MAGNETO COVER | NOT SHOWN

11483-02J00

1
Out of stock

8

.GASKET,CLUTCH COVER OUTER | NOT SHOWN

11484-28H00

1
Out of stock

9

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

1
Out of stock

10

.GASKET,EXHAUST PIPE | NOT SHOWN

14181-35G00

1
Out of stock

11

.O-RING | NOT SHOWN

17431-28H00

1
Out of stock
