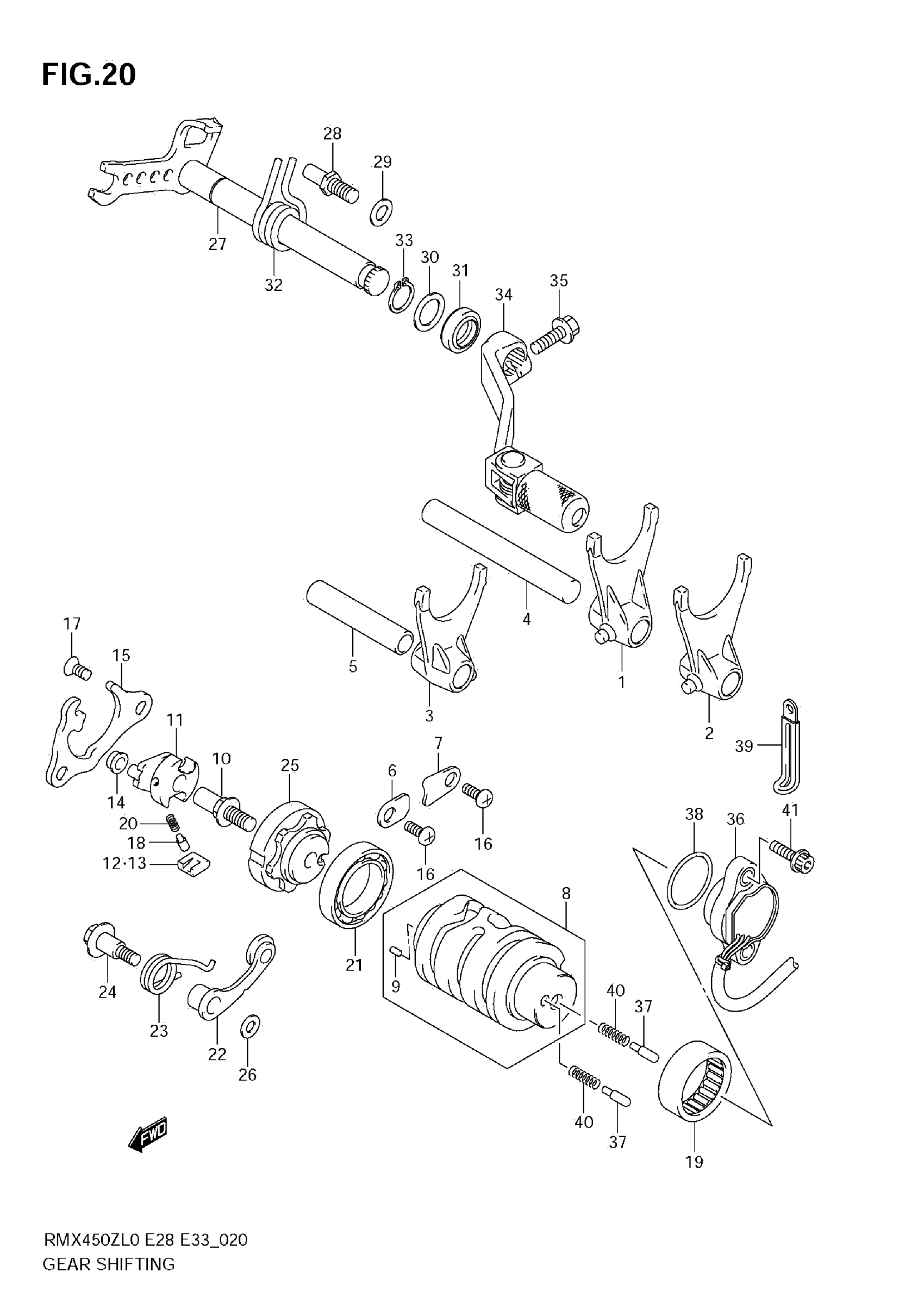

Suzuki RMX450ZL0 (2010) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-28H00

$86.50

2

FORK,GEAR SHIFT NO.2

25221-28H00

$89.43

3

FORK,GEAR SHIFT NO.3

25231-28H00

$88.17

4

SHAFT, GEAR SHIFT FORK NO.1

25411-28H00

Unavailable

5

SHAFT, GEAR SHIFT FORK NO.2

25421-28H00

Unavailable

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

7

RETAINER, SHIFT SHAFT BRG NO.2

24742-18A00

$4.35

8

CAM, GEAR SHIFT

25310-28H00

$198.45

9

PIN (4X13.8) | 4X11.2

04221-04089

$1.49

10

PIN, GEAR SHIFT CAM DRIVEN

25313-37F00

$14.77

11

SHIFTER, GEAR SHIFT CAM

25322-28H00

$64.68

12

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

13

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

14

ROLLER,GEAR SHIFT CAM SHIFTER

25325-28H00

$12.40

15

LIFTER,GEAR SHIFT PAWL

25331-28H00

$23.47

16

SCREW, SHIFT CAM BEARING RTNR | 6X12

09125-06110

$2.12

17

SCREW, SHIFT PAWL LIFTER | 6X12

09126-06011

$2.03

18

PIN, SHIFT PAWL CLICK

09209-05023

$2.61

19

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$21.39

20

SPRING, SHIFT PAWL RETURN

09440-04003

$1.54

21

BEARING, GEAR SHIFT CAM, R

08140-68050

$60.33

22

STOPPER COMR, GEAR SHIFT CAM

25350-28H00

$21.42

23

SPRING, GEAR SHIFT CAM STOPPER

25355-28H00

$5.39

24

BOLT,SHIFT CAM STOPPER

25357-28H00

$7.85

25

PLATE, GEAR SHIFT CAM STOPPER

25381-10H00

$77.75

26

WASHER, GEAR SHIFT CAM STOPPER

08211-06121

$1.54

27

SHAFT, GEAR SHIFT

25510-02J00

$96.30

28

STOPPER, GEAR SHIFT ARM

25671-10H00

$5.98

29

WASHER, GEAR SHIFT ARM STOPPER | 8.8X14X1.0

09181-08139

$1.91

30

WASHER, GEAR SHIFT SHAFT | 14X20X1.0

09181-14139

$2.60

31

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.70

32

SPRING, SHIFT SHAFT RETURN

09444-20011

$7.12

33

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.91

34

LEVER ASSY, GEAR SHIFT LEVER

25600-02J00

$155.97

35

BOLT, GEAR SHIFT LEVER

01547-06207

$2.01

36

BASE ASSY,GEAR SHIFT TERM

37730-49H00

$125.38

37

CONTACT, GEAR SHIFT SW

09209-05011

$2.20

38

O RING, GEAR SHIFT SW | D:2.4,ID:26.2

09280-26005

$2.30

39

CLAMP (L:45)

09404-06429

$1.83

40

SPRING, GEAR SHIFT SW

09440-04010

$1.54

41

BOLT, GEAR SHIFT SW

07120-0516A

$2.28
