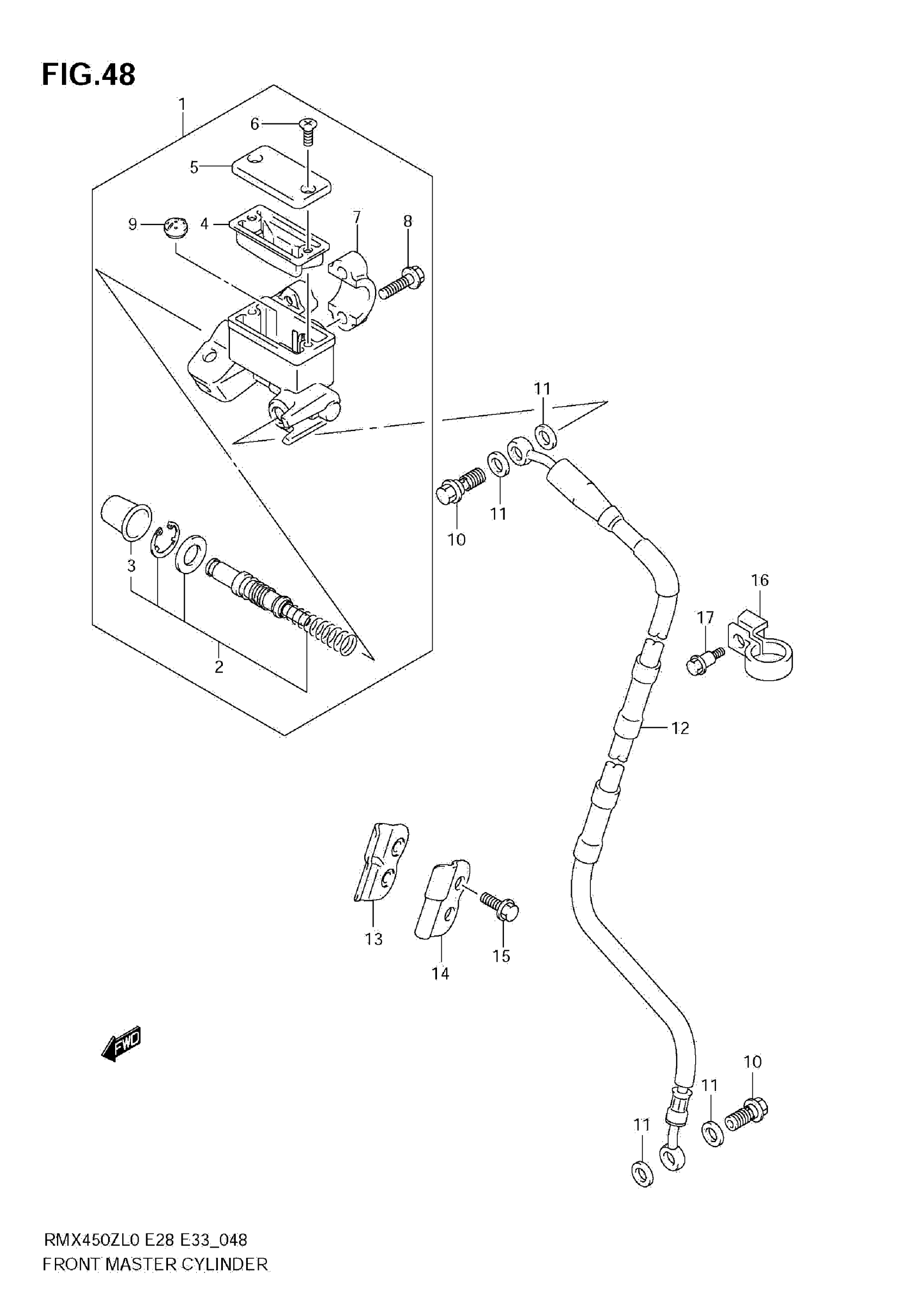

Suzuki RMX450ZL0 (2010) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

$226.62

2

PISTON & CUP SET

59600-37810

$58.68

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-06F00

$4.73

9

SEPARATOR

59748-36E00

$9.37

10

BOLT (10X1.25X22)

09360-10065

$8.92

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FR BRAKE This part replaces 59480-02J00.

59480-02J01

$235.88

13

CLAMP, INNER

59260-28H10

$29.43

14

CLAMP,FR BRAKE HOSE

59271-28H10

$10.96

15

BOLT

09103-06234

$2.35

16

GUIDE, BRAKEK HOSE

58621-29F00

$14.63

17

BOLT, GUIDE (6X20.5)

09111-06087

$2.71
