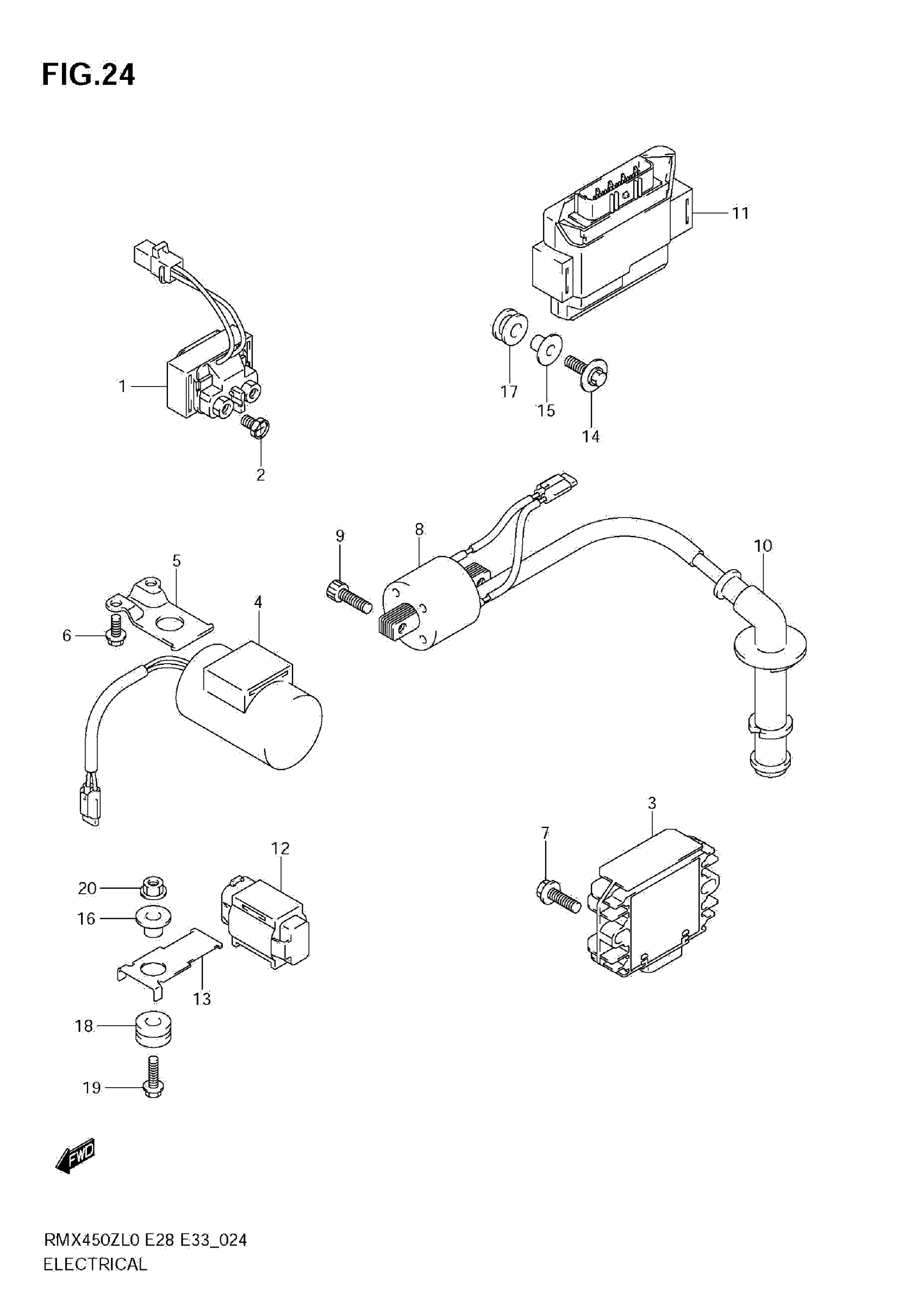

Suzuki RMX450ZL0 (2010) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$74.65

2

BOLT (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY This part replaces 32800-05G10.

32800-05G11

$133.14

4

CONDENSER ASSY

33640-28H00

$157.50

5

BRACKET, CONDENSER

33641-28H00

Unavailable

6

BOLT (6X10)

09103-06188

$2.90

7

BOLT, RECTIFIER

02162-0620C

$1.71

8

COIL ASSY, IGNITION

33410-35G10

$126.57

9

BOLT

07130-0620A

$2.50

10

CAP ASSY,SPARK PLUG

33510-28H00

$59.80

11

CONTROL UNIT, FI

32920-02J10

Unavailable

12

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

13

BRACKET, FUEL CUT SENSOR

33961-28H10

Unavailable

14

BOLT (6X20)

09116-06182

$2.30

15

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

16

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

17

CUSHION,CABLE H This part replaces 09320-08076.

09320-08517

$5.17

18

CUSHION, FUEL CUT SENSOR

09320-08501

$3.23

19

BOLT

01547-0620A

$2.03

20

NUT

08316-1006A

$2.19
