Description

Price

1

HEAD ASSY, CYLINDER

11100-02J00

$1,209.37

2

PIN, CAMSHAFT HOUSING

09206-08001

$1.78

3

BOLT, CAMSHAFT HOUSING (6X40)

09103-06266

$2.12

4

BOLT, CAMSHAFT HOUSING (6X45)

09103-06293

$2.53

5

O RING

09280-26007

$6.52

6

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

$32.26

7

.GASKET,CYLINDER HEAD

11141-28H00

$33.00

8

PIN, CYL HEAD KNOCK

04211-13189

$2.19

9

BOLT, CYLINDER HEAD (L25)

07120-0625A

$2.50

10

BOLT,CYLINDER HEAD (L:140)

11117-28H00

$16.04

11

BOLT,CYLINDER HEAD (L:120)

11161-45G00

$9.31

12

PLUG, SPARK (CR8EIB-10)

09482-00584

$11.97

13

PIPE, INTAKE

13101-02J00

Unavailable

14

BOLT

02122-0616B

$1.96

15

CLAMP, INTAKE PIPE This part replaces 13170-35G00.

13170-35G01

$15.63

16

BOLT, ENG MTG, LH (10X43)

09103-10116

$6.02

17

BOLT, ENG MTG, RH (10X30)

09103-10359

$4.32

18

C RING, INTAKE

12749-35G01

$3.56

19

C RING, EXHAUST

12749-10H00

$4.16

20

.BOLT

07120-0610A

$2.30

21

GASKET

09168-06023

$2.35

22

SENSOR, WATER TEMP

13650-14G00

$52.02

23

.O RING

13655-14G00

$9.55

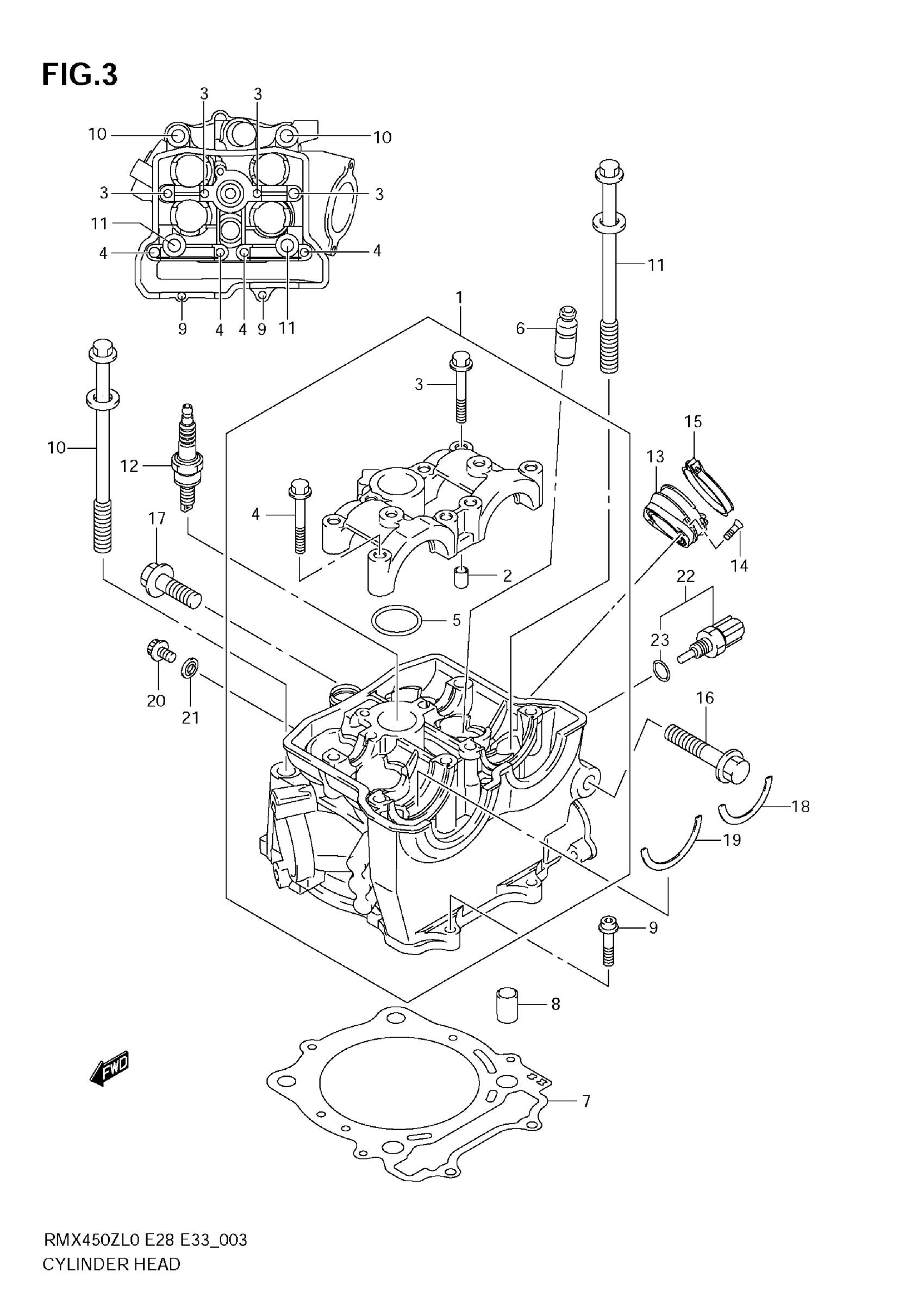

Suzuki RMX450ZL0 (2010) CYLINDER HEAD Diagram
