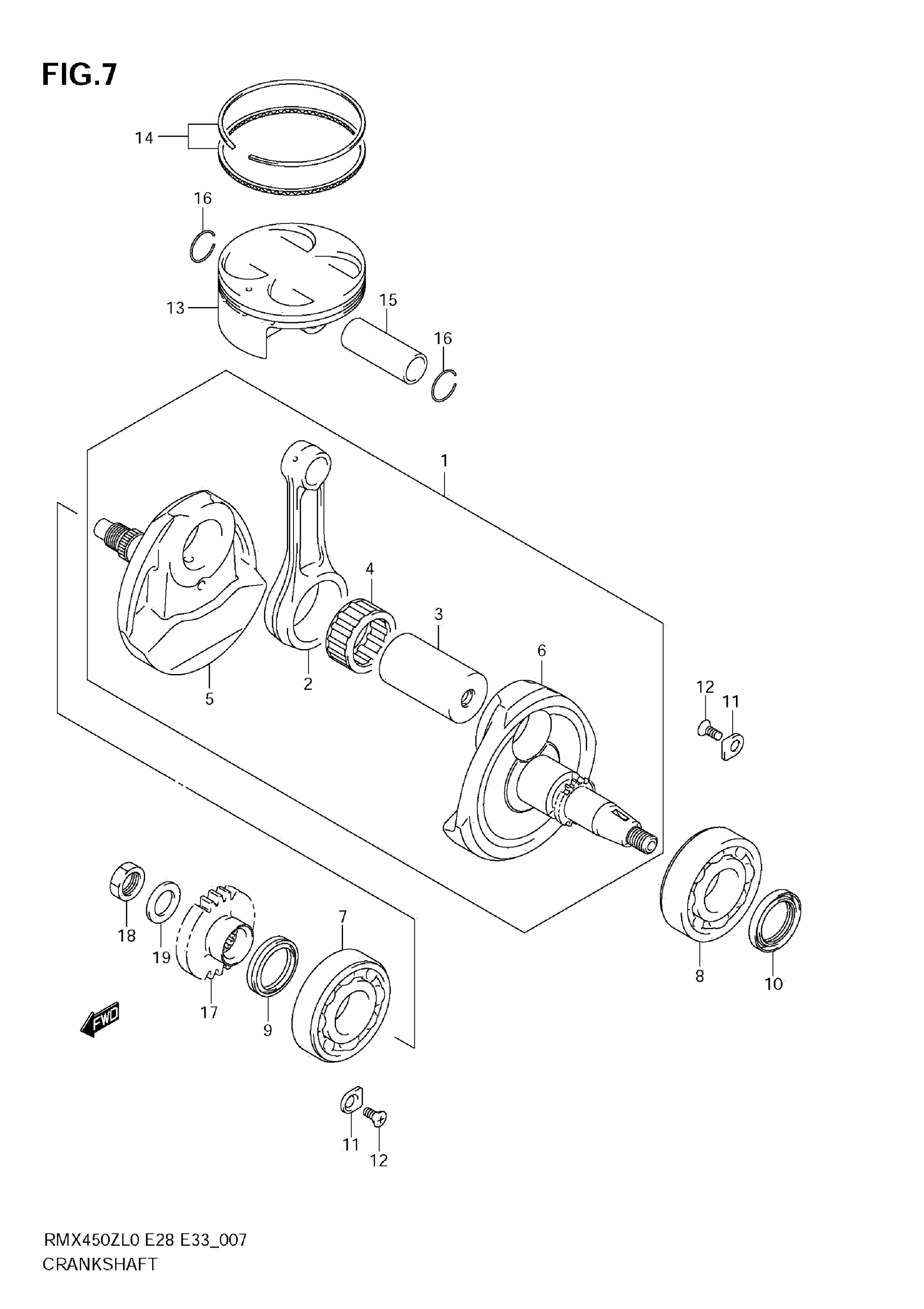

Suzuki RMX450ZL0 (2010) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY This part replaces 12200-02J00.

12200-02J01

$831.63

2

ROD, CONNECTING

12160-28H00-0B0

$207.53

3

PIN This part replaces 12210-35G02.

12210-35G03

$93.63

4

BEARING (34X42X20) This part replaces 09263-34012-0B0.

09263-34014-0B0

$136.78

5

CRANKSHAFT, RH

12220-02J00

Unavailable

6

CRANKSHAFT, LH

12261-02J00

Unavailable

7

BEARING, RH

09262-30115

$88.92

8

BEARING, LH

09262-32017

$133.23

9

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$15.32

10

SEAL,OIL This part replaces 09283-32037.

09283-32044

$18.71

11

RETAINER

24741-20A00

$2.81

12

SCREW

09126-06011

$2.03

13

PISTON

12111-28H10-0F0

$264.83

14

RING SET,PISTON

12140-28820

$48.43

15

PIN, PISTON

12151-35G01

$18.43

16

RING,SNAP

09381-19001

$2.29

17

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

Unavailable

18

NUT

09140-16036

$14.77

19

WASHER

09164-16002
