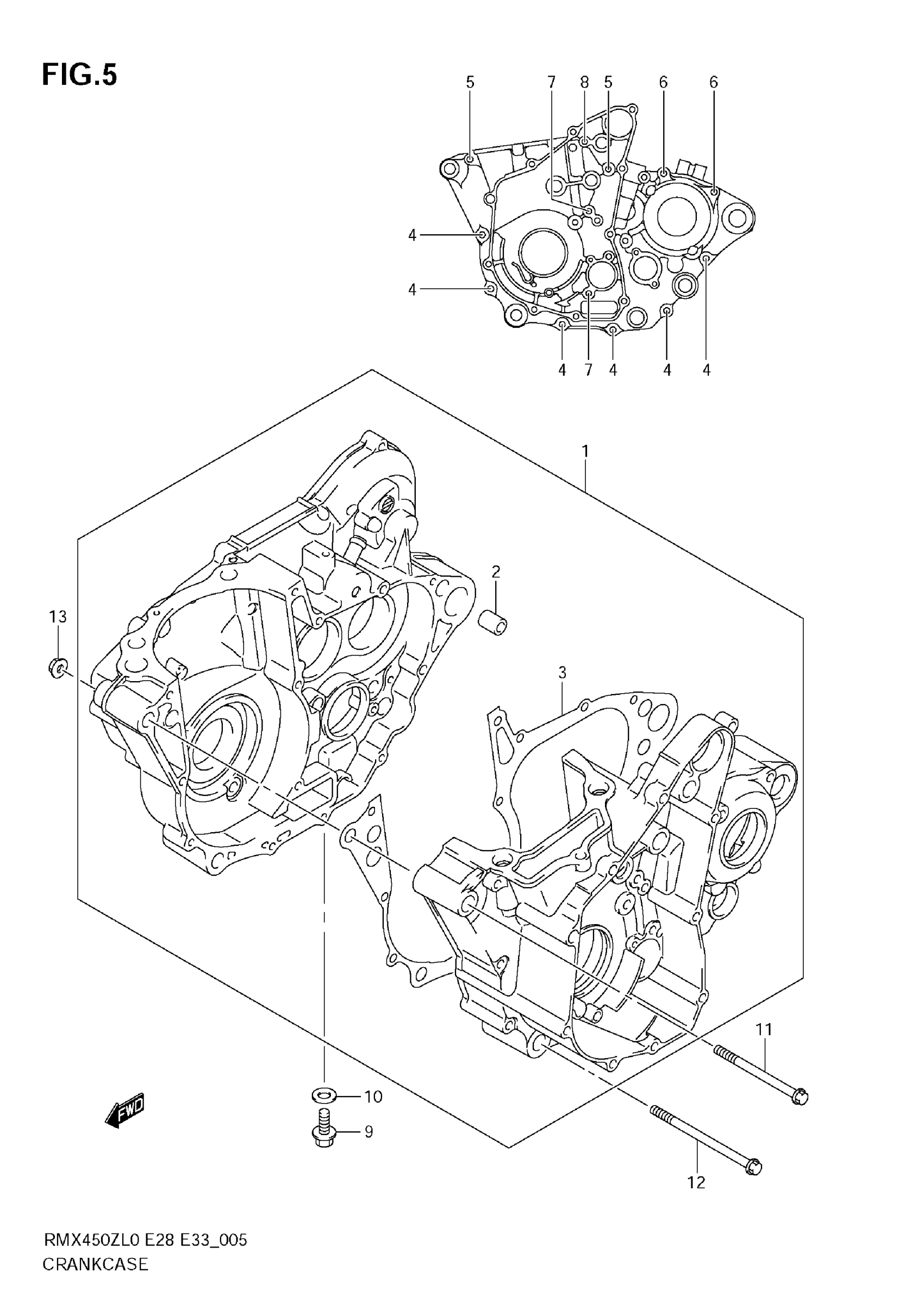

Suzuki RMX450ZL0 (2010) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-02810

Unavailable

2

PIN, CRANKCASE

09206-13020

$2.34

3

GASKET, CRANKCASE

11481-02J00

$27.40

4

BOLT, CRANKCASE

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

BOLT

01547-0675A

$3.28

7

BOLT, CRANKCASE

01547-0680A

$3.30

8

BOLT, CRANKCASE

01547-0690A

$2.70

9

PLUG, OIL DRAIN

09103-08393

$2.50

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

BOLT (10X120)

09103-10388

$5.78

12

BOLT (10X125)

09103-10399

$7.05

13

NUT

09159-10115

$3.55
