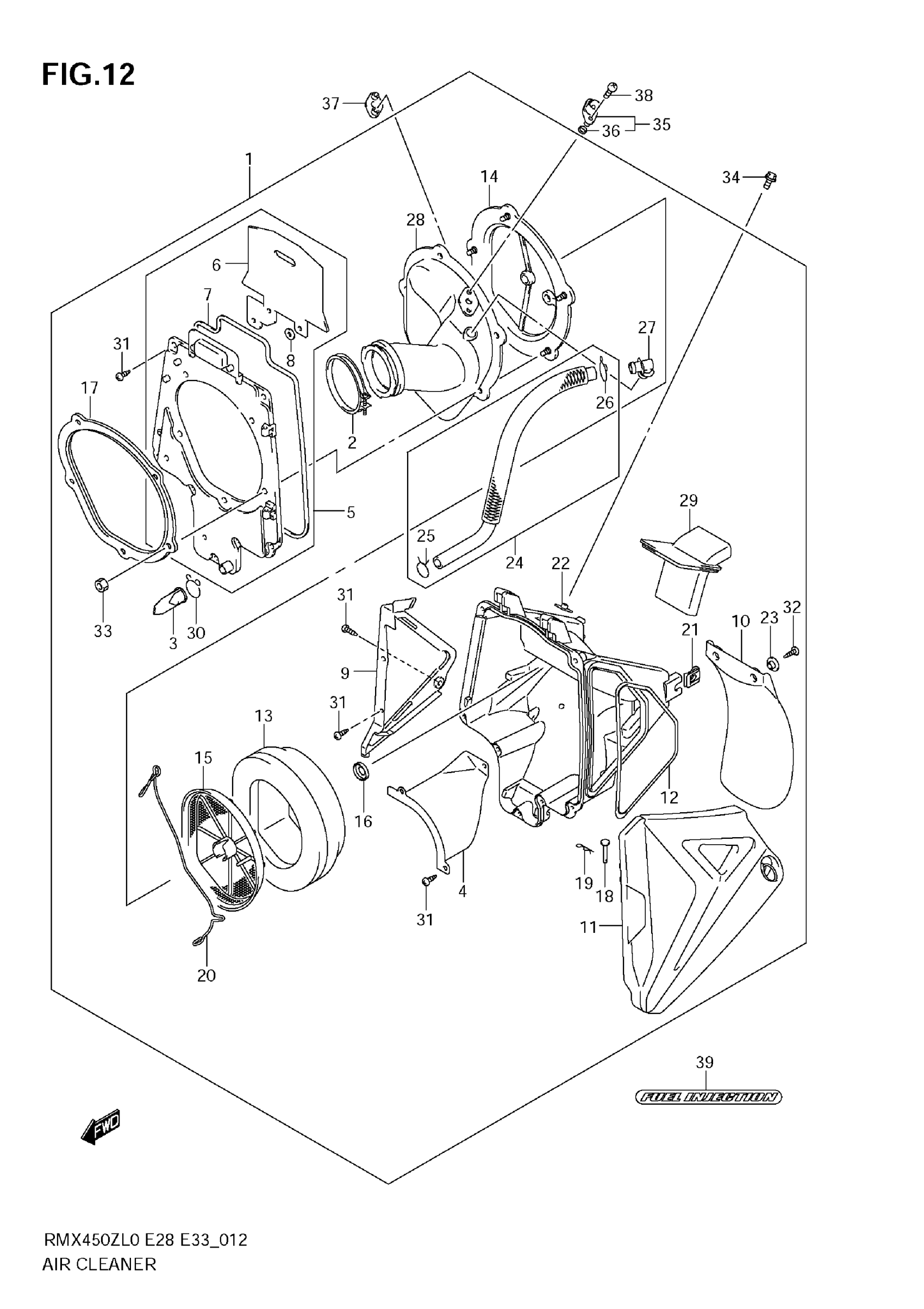

Suzuki RMX450ZL0 (2010) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR (WHITE)

13700-02J00-30H

Unavailable

2

.CLAMP This part replaces 13170-25D00.

13170-25D01

$6.60

3

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

$6.63

4

PLATE, HEAT GUARD

13719-02J00

Unavailable

5

CASE, AIR CLEANER FRONT

13721-02J00

$46.25

6

COVER

13749-02J00

$21.58

7

GASKET

13756-02J00

Unavailable

8

NUT, PUSH

13832-02J00

$2.13

9

COVER, SIDE RH

13723-02J00

$21.58

10

MUD GUARD

13738-36E01

$21.90

11

AIR CLEANER,CAP This part replaces 13740-02J00.

13740-02J01-30H

$66.82

12

GASKET

13757-02J00

$8.28

13

FILTER ASSY

13780-02J00

$64.68

14

BASE, FILTER

13790-02J00

Unavailable

15

HOLDER, FILTER

13791-02J00

$35.93

16

SPACER

13796-44E00

$3.62

17

PLATE, FILTER BASE

13797-02J00

Unavailable

18

PIN, HINGE

13822-02J00

$8.05

19

PIN, SNAP

13823-02J00

$3.82

20

SPRING

13825-02J00

Unavailable

21

RECEPTACLE

13835-02J00

Unavailable

22

NUT, AIR CLEANER

13836-12D00

Unavailable

23

COLLAR

13838-02B00

$3.56

24

TUBE, BREATHER

13850-02J00

Unavailable

25

CLIP

09401-13301

$2.70

26

CLIP

09401-14101

$2.34

27

JOINT This part replaces 13858-14D10.

13858-14D20

$7.22

28

TUBE, OUTLET

13881-02J00

Unavailable

29

TUBE,INLET This part replaces 13891-02J00.

13891-02J01

$47.25

30

CLIP

09401-17201

$3.15

31

SCREW

03211-0516B

Unavailable

32

SCREW

03541-0520B

$2.63

33

NUT This part replaces 08310-11058.

08310-00057

$1.84

34

BOLT

01547-0612A

$2.03

35

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$52.06

36

O RING

13655-14G10

$9.90

37

BRACKET

13652-28H00

$12.40

38

SCREW

02112-0516B

$1.93

39

EMBLEM, FUEL-INJECTION

68131-28H00-FTY

$12.82
