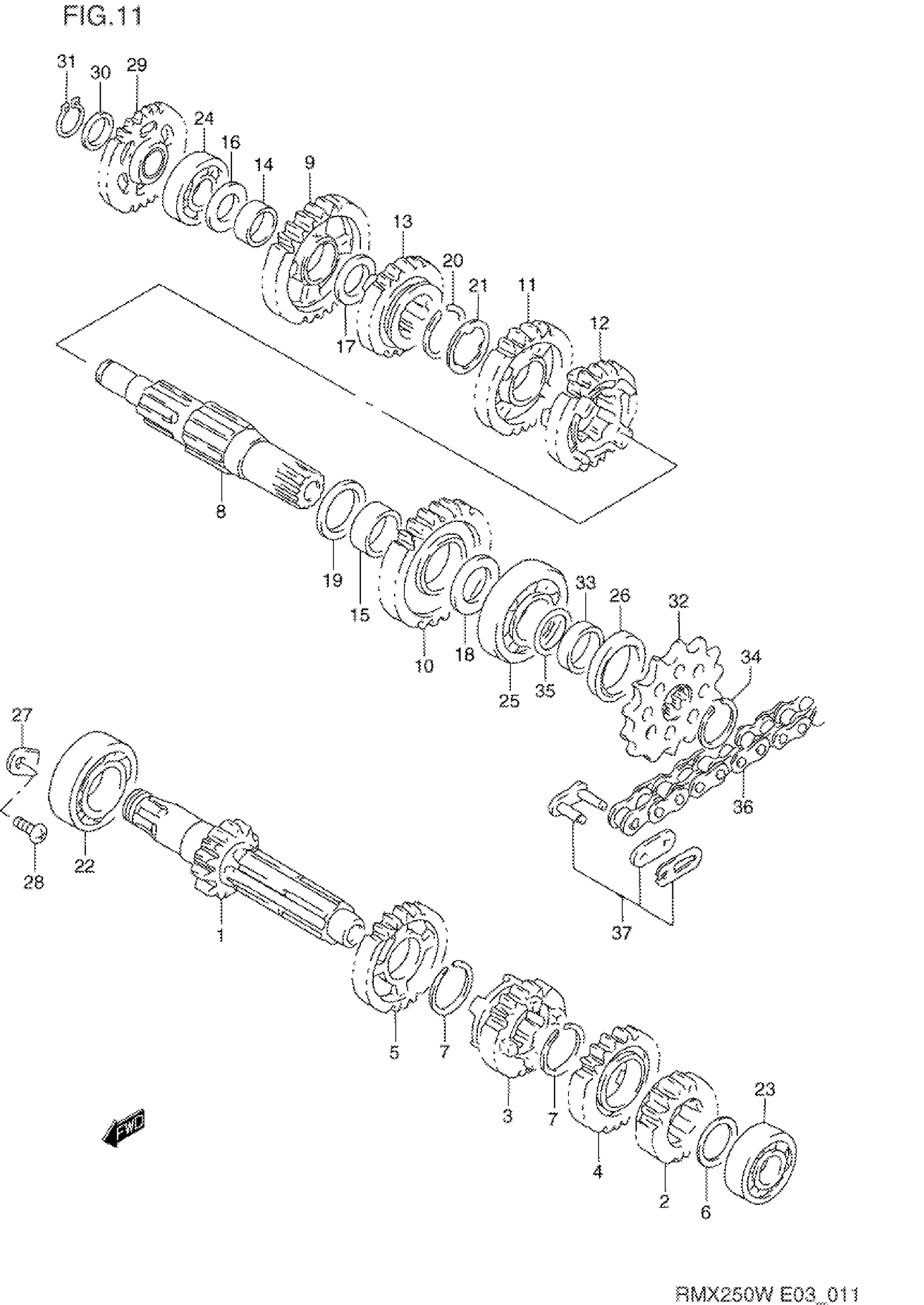

Suzuki RMX250W (1998) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24121-05D02

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-28C00

Unavailable

3

GEAR, 3RD DRIVE (NT:16) This part replaces 24231-05D01.

24231-05D02

$134.48

4

GEAR, 4TH DRIVE (NT:22) This part replaces 24241-05D00.

24241-05D01

$117.48

5

GEAR, 5TH DRIVE (NT:22)

24251-05D00

$117.48

6

WASHER (17X30X1.0)

09181-17223

$2.96

7

CIRCLIP

09380-25010

$2.91

8

DRIVESHAFT

24131-05D00

Unavailable

9

GEAR, 1ST DRIVEN (NT:32)

24311-05D00

$124.28

10

GEAR, 2ND DRIVEN (NT:26)

24321-28C02

$121.98

11

GEAR, 3RD DRIVEN (NT:22)

24331-05D01

$126.18

12

GEAR, 4TH DRIVEN (NT:24) This part replaces 24341-05D00.

24341-05D01

$137.02

13

GEAR, 5TH DRIVEN (NT:19)

24351-05D01

Unavailable

14

BUSH, 1ST DRIVEN GEAR

09300-20037

$17.90

15

BUSH, 2ND DRIVEN GEAR

09300-25031

$19.13

16

WASHER (17X30X1.0)

09181-17223

$2.96

17

WASHER (20X30X1.0)

09181-20195

$2.60

18

WASHER (22X32X1.5)

09181-22212

Unavailable

19

WASHER (25X34X1.0)

09181-25167

$3.12

20

CIRCLIP

09380-25010

$2.91

21

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

22

BEARING, RH (25X52X15)

09262-25003

$24.83

23

BEARING, LH (17X40X12)

09262-17023

$16.75

24

BEARING, RH (17X40X12)

09262-17023

$16.75

25

BEARING, LH (22X56X15)

09262-22023

Unavailable

26

OIL SEAL (28X38X6)

09283-28020

$9.93

27

HOLDER, BEARING

24741-21A00

$2.81

28

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

29

GEAR, KICK IDLE (NT:27)

26260-05D00

Unavailable

30

WASHER (17X24X0.5)

09181-17130

$2.96

31

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

32

SPROCKET, ENGINE (NT:13) This part replaces 27511-15D00.

27511-37F00

$25.05

32

SPROCKET, ENGINE (NT:15) | OPT

27511-14320

Unavailable

33

SPACER, ENGINE SPROCKET

27531-28C00

$13.30

34

CIRCLIP

09380-22006

$3.10

35

O RING

09280-21010

$2.27

36

CHAIN, DRIVE | Includes Item(s) 37 This part replaces 27600-05D20-114.

27600-06C20-114

Unavailable

37

JOINT, CHAIN

27620-05D00

Unavailable
