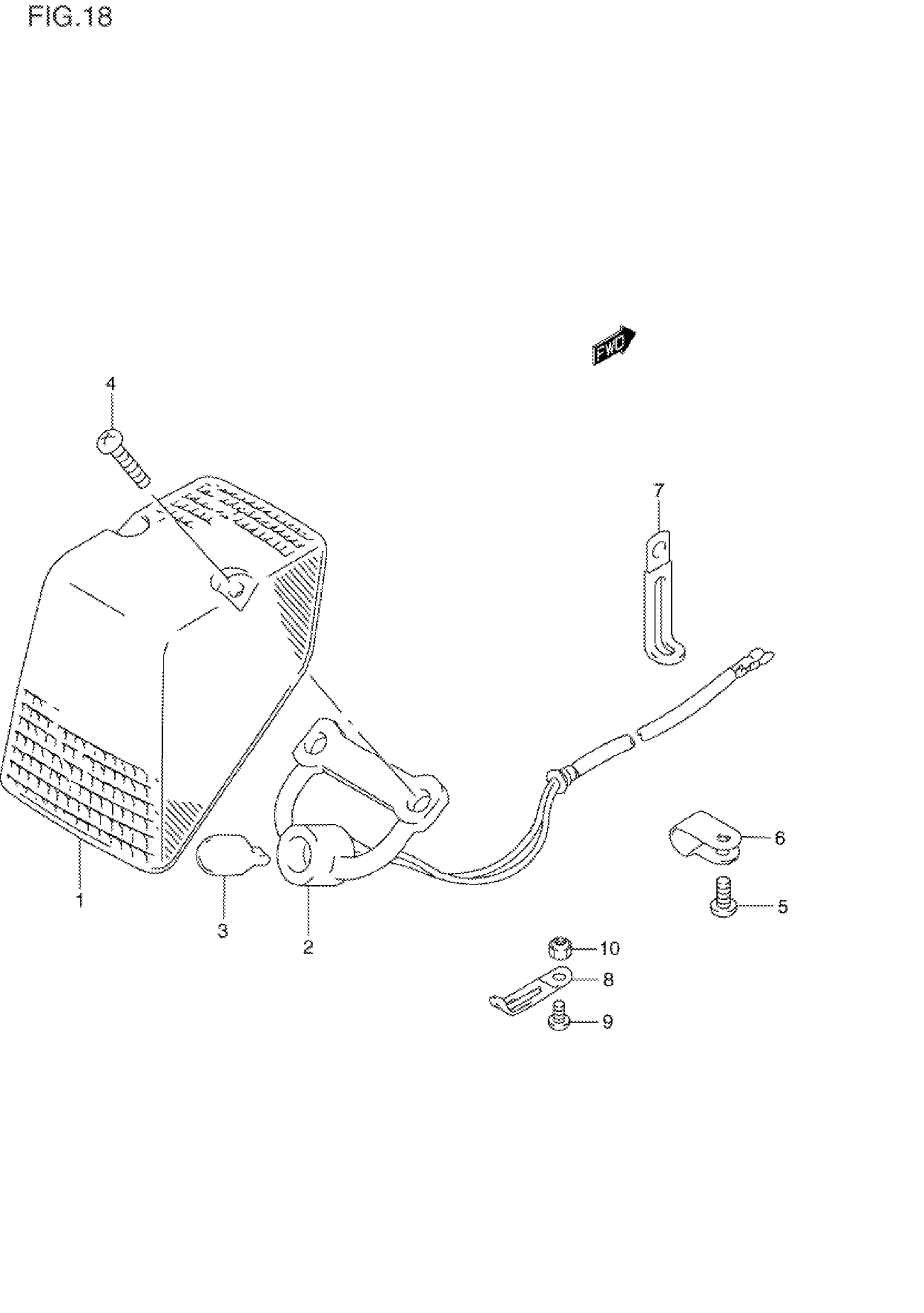

Suzuki RMX250W (1998) TAIL LAMP Diagram

#

Description

Price

1

LENS, TAIL LAMP

35712-03D00

$22.22

2

SOCKET | Includes Item(s) 3

35718-05D00

Unavailable

3

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

4

SCREW This part replaces 03511-04203.

03511-0420B

$2.46

5

SCREW This part replaces 03511-04123.

03511-0412A

$1.49

6

CLAMP

09403-06408

$3.08

7

CLAMP (L:45) This part replaces 09404-08417.

09404-08211

$2.35

8

CLAMP (L:50)

09404-06429

$1.83

9

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
