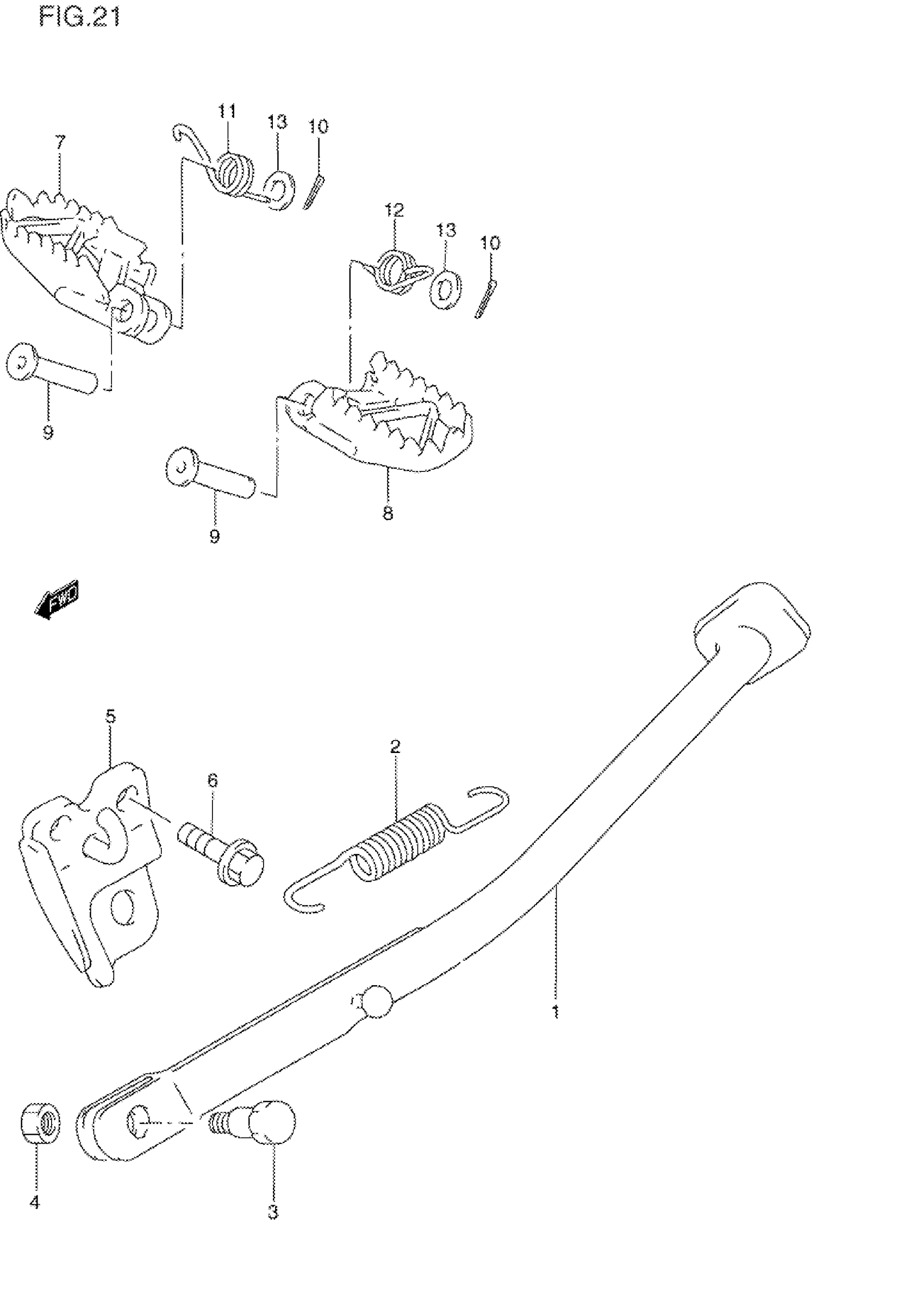

Suzuki RMX250W (1998) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP (SILVER)

42310-29E10-13L

Unavailable

2

SPRING This part replaces 09443-17015.

09443-17015-XC0

$13.09

3

BOLT

09111-10046

Unavailable

4

NUT, REAR This part replaces 08319-21103.

08319-2110A

$2.28

5

BRACKET (SILVER)

42330-29E01-13L

Unavailable

6

BOLT

09103-10275

$3.98

7

FOOTREST, RH

43551-28E10

Unavailable

8

FOOTREST, LH

43561-28E10

Unavailable

9

PIN

09200-10019

$6.83

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

SPRING, RH

09448-18030

$5.36

12

SPRING, LH

09448-18029

$5.36

13

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84
