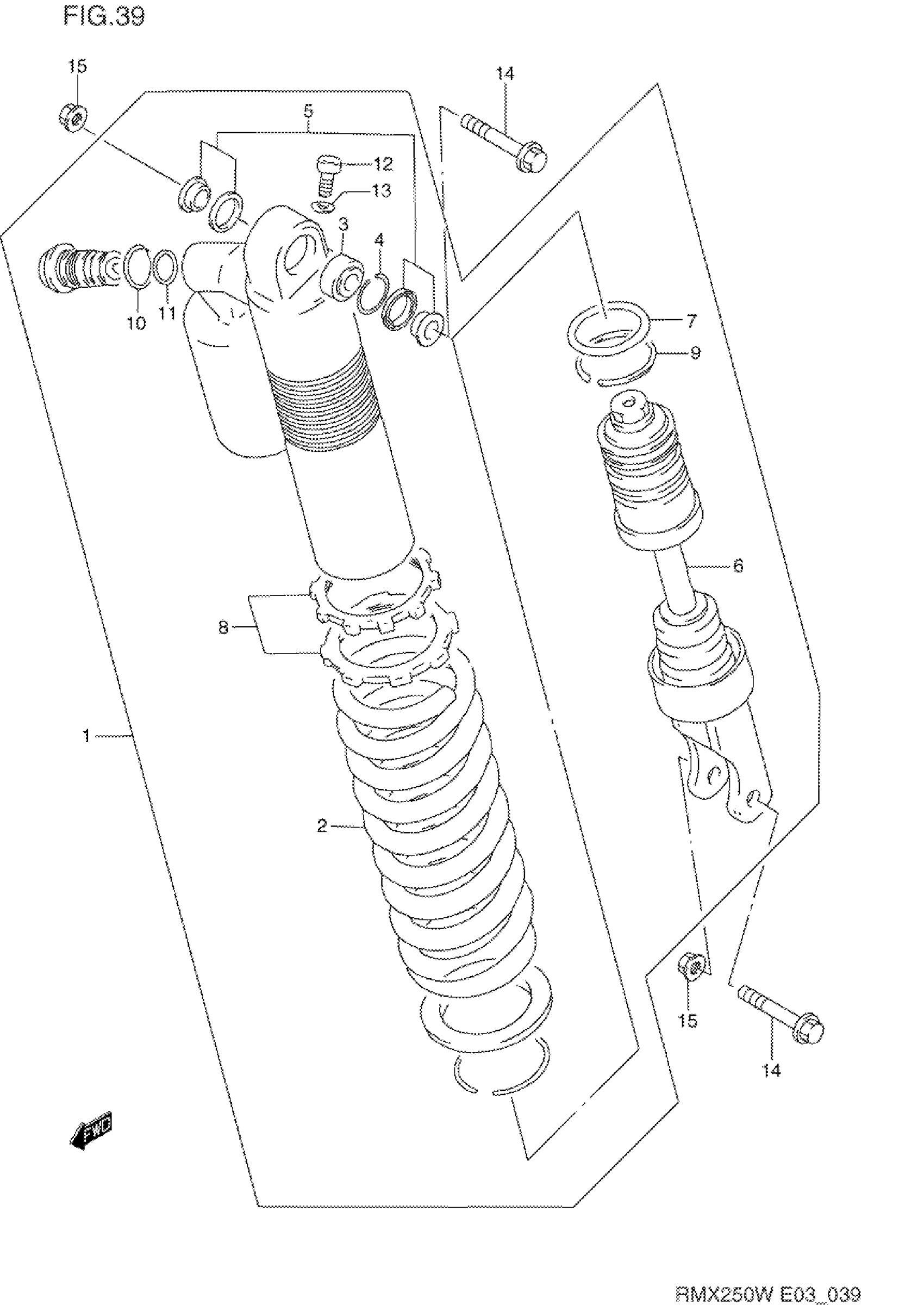

Suzuki RMX250W (1998) SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | MODEL V

62100-29E60-Z84

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL W; Includes Item(s) 2 - 13

62100-29E60-Y0P

Unavailable

2

SPRING (K=5.4) | MODEL V

62211-28C80-Z84

Unavailable

2

SPRING (K=5.4) | MODEL W

62211-28C80-Y0P

Unavailable

3

BEARING

62175-43D00

Unavailable

4

STOP RING

62277-27C40

$3.95

5

COLLAR SET, ABSORBER

62680-28E00

Unavailable

6

ROD, PISTON

62120-29E50

Unavailable

7

O RING

62153-43B00

Unavailable

8

ADJUSTER SET, ABSORBER

62190-28E00

Unavailable

9

..RING,STOPPER

62279-27C40

Unavailable

10

O RING

62131-27C40

$4.82

11

O RING This part replaces 51175-28E30.

51175-03B30

$6.05

12

BOLT

62281-27C40

Unavailable

13

GASKET

51183-31030

$3.77

14

BOLT

62311-28E00

$6.19

15

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
