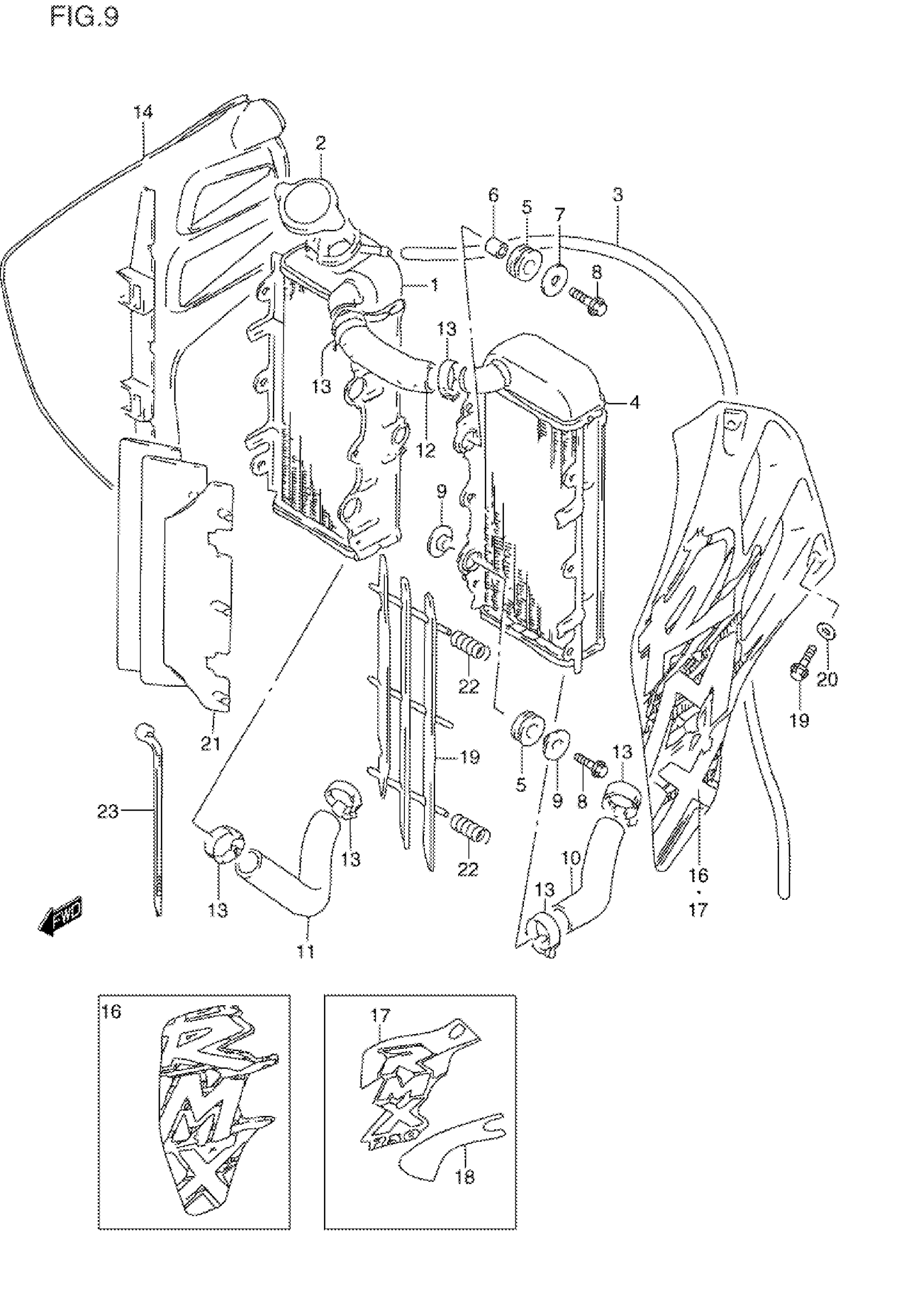

Suzuki RMX250W (1998) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-05D00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

$42.50

3

HOSE, OVER FLOW | L:2000->650

09351-50803-00B

$9.10

4

RADIATOR, LH

17720-05D00

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

SPACER (6.5X10.5X12)

09180-06221

Unavailable

7

WASHER (6.5X24X1.2) | MODEL V This part replaces 09160-06002.

09160-06114

$2.03

7

WASHER (6.5X24X1.2) | MODEL W

09160-06114

$2.03

8

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

9

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

10

HOSE, INLET

17851-28C00

Unavailable

11

HOSE, OUTLET

17852-28C10

Unavailable

12

HOSE, CYLINDER JOINT | MODEL V This part replaces 17853-28C20.

17851-01A00

$22.10

12

HOSE, JOINT (L:68) | MODEL W

17851-01A00

$22.10

13

CLAMP

09402-28511

$6.88

14

COVER, RADIATOR RH (PURPLE) | MODEL V

17761-28C00-Z62

Unavailable

14

COVER, REDIATOR RH (BLACK) | MODEL W

17761-28C00-019

Unavailable

15

COVER, RADIATOR LH (PURPLE) | MODEL V

17762-28C00-Z62

Unavailable

15

COVER, RADIATOR LH (BLACK) | MODEL W

17762-28C00-019

Unavailable

16

TAPE, RADIATOR COVER, RH | MODEL V

68665-05D20-G7E

Unavailable

16

TAPE, RADIATOR COVER, LH | MODEL V

68675-05D20-G7E

Unavailable

17

EMBLEM, RADIATOR COVER, RH | MODEL W

68661-05D50-J5D

Unavailable

17

EMBLEM, RADIATOR COVER, LH | MODEL W

68671-05D50-J5D

Unavailable

18

TAPE, RADIATOR COVER, RH | MODEL W

68665-05D30-25Y

Unavailable

18

TAPE, RADIATOR COVER, LH | MODEL W

68675-05D30-25Y

Unavailable

19

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

20

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

21

LOUVER, RADIATOR

17831-26C00

$19.41

22

SPRING This part replaces 09440-11024.

09440-11024-XC0

$3.79

23

CLAMP This part replaces 09407-18403.

09407-18402

$2.19
