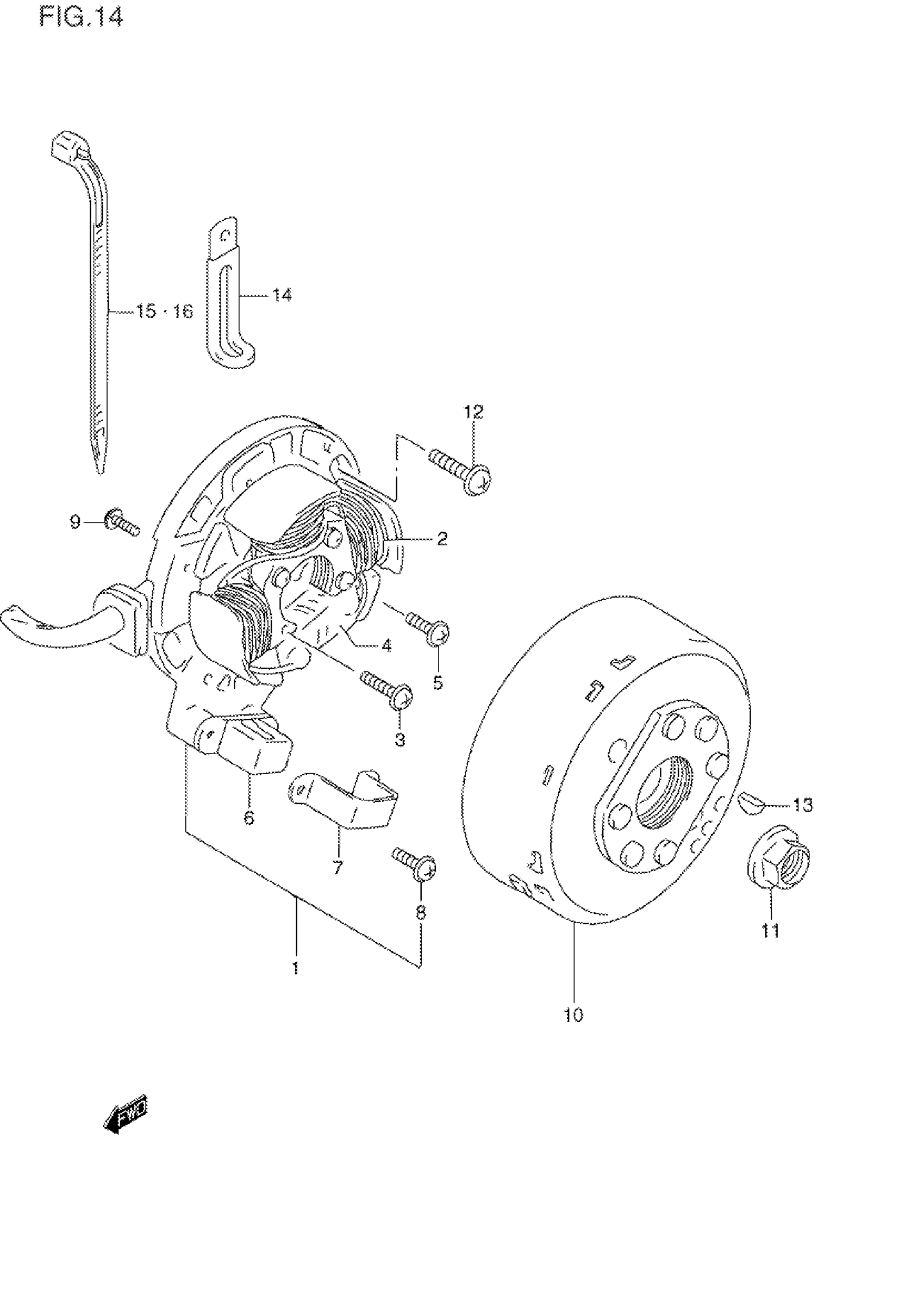

Suzuki RMX250W (1998) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 9

32101-05D01

Unavailable

2

COIL, LIGHTING

32120-05D00

Unavailable

3

SCREW This part replaces 02112-34253.

02112-3425B

$3.08

4

COIL, PRIMARY

32140-05D00

Unavailable

5

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

6

COIL, PULSER

32150-05D00

Unavailable

7

COVER, PULSER COIL

32157-27C01

Unavailable

8

SCREW This part replaces 02112-35163.

02112-3516A

$2.43

9

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

10

ROTOR

32102-05D00

Unavailable

11

NUT This part replaces 08316-10123.

08316-1012A

$2.26

12

SCREW This part replaces 02112-16203.

02112-1620B

$2.62

13

KEY

08341-31039

$1.89

14

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

15

CLAMP (L:125)

09407-14403

$2.26

16

CLAMP (L:235)

09407-25401

$4.66
